Dr-14: Checking Detonation Sensor

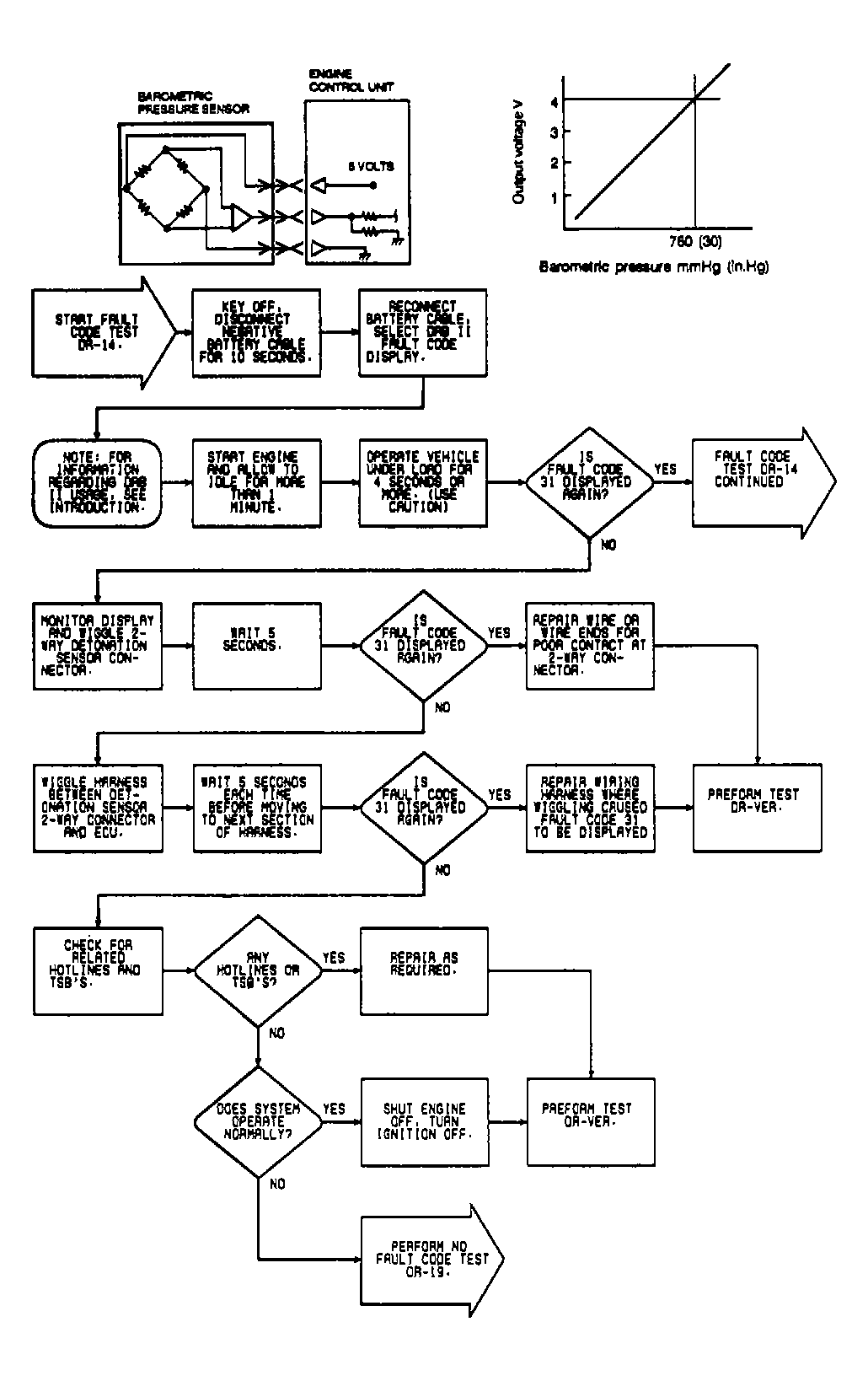

Fig 1: DR-14 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
G90A12690

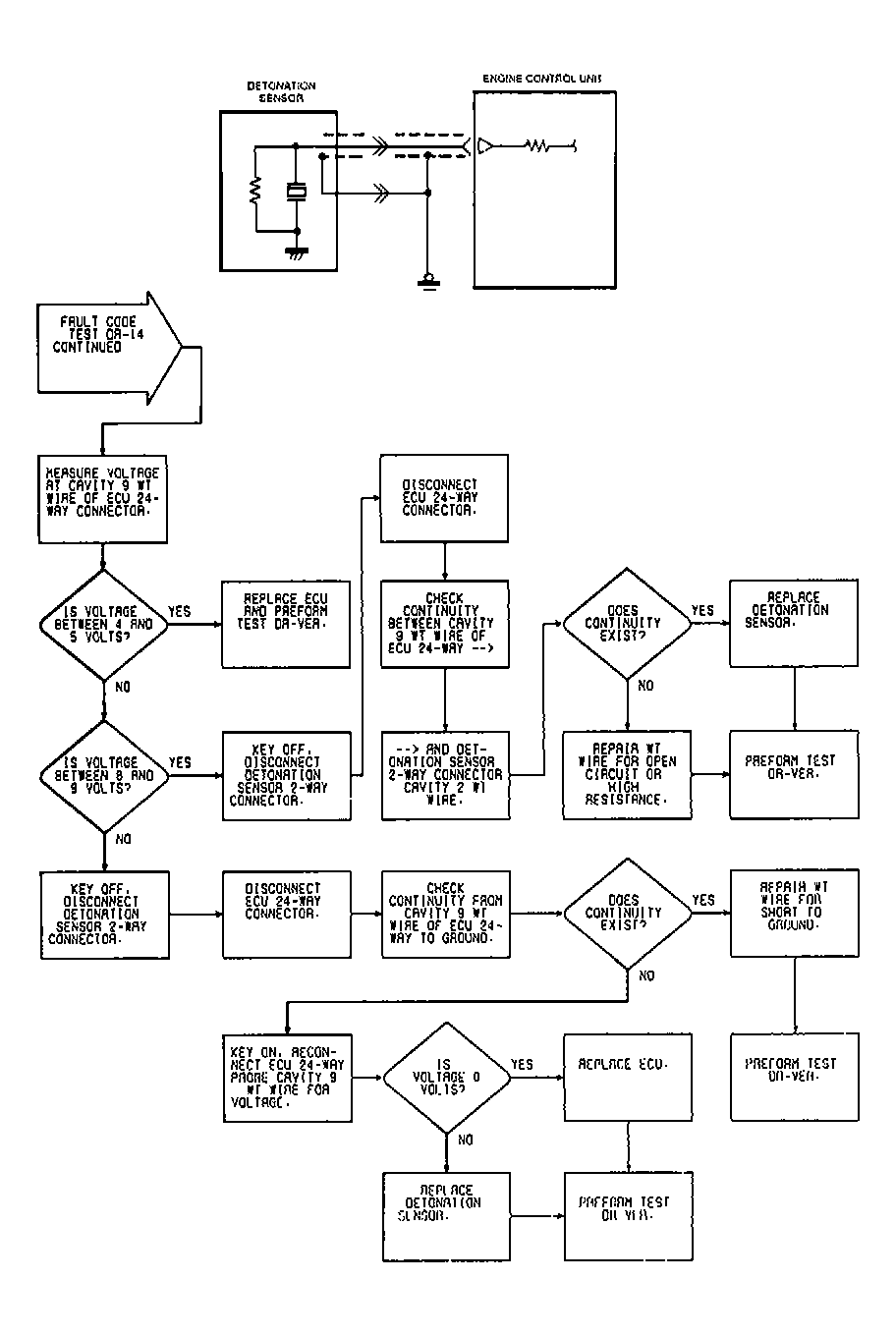

Fig 2: DR-14 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
G90B12691
