Eagle
>>
1990
>>
Summit Base, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Passive Restraint Systems
>>
Component Tests
>>
Fasten Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fasten Switch

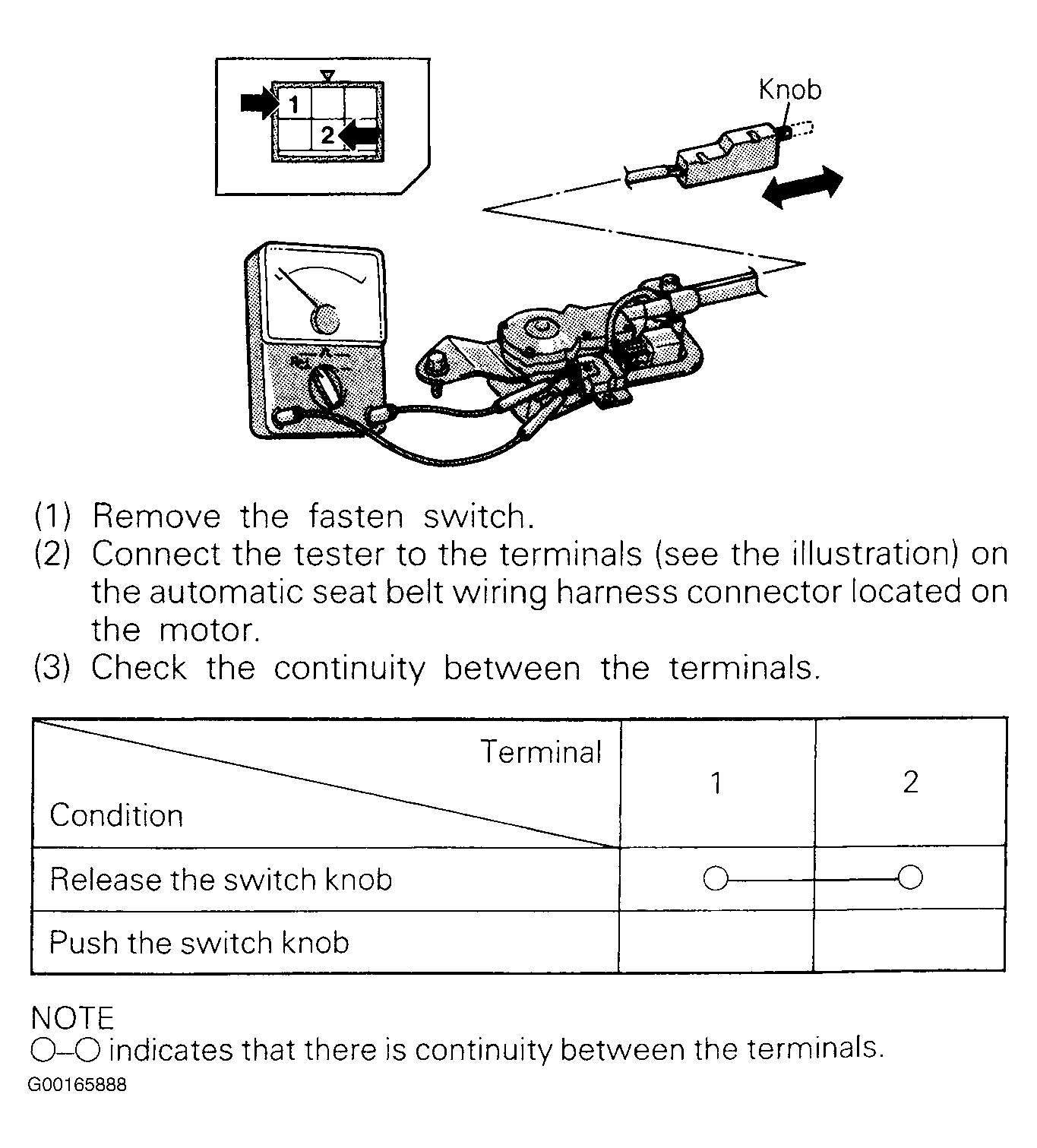

Fig 1: Testing Fasten Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
