Component Tests: Motor

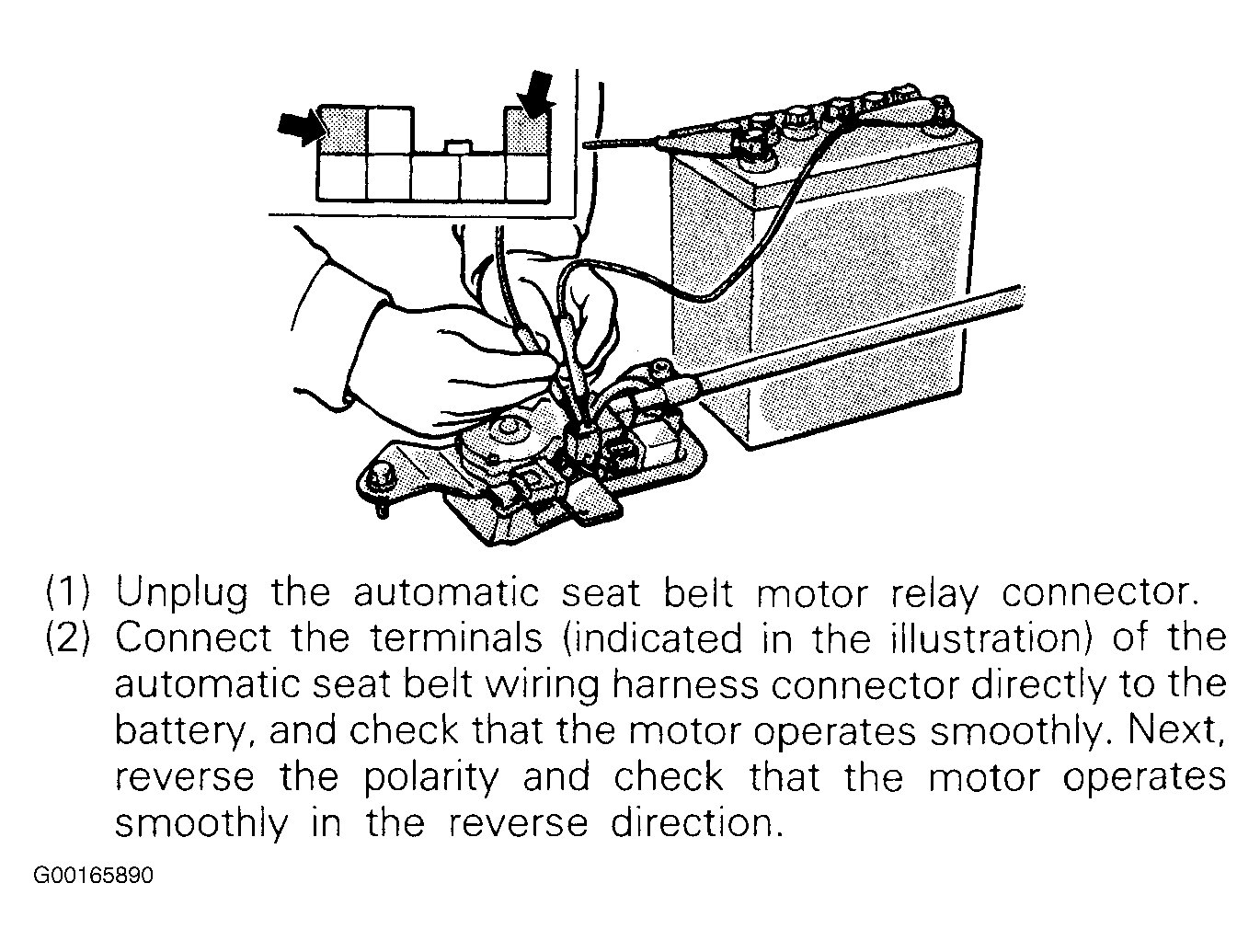

Unplug the automatic seat belt motor relay connector. Connect the terminals of the automatic seat belt wiring harness connector directly to the battery, and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. See Fig 1 .
