| Hatchback |
| Automatic Seat Belt Guide Rail Mounting Bolt (Lower) |
12-17 (16-23) |
| Motor Mounting Bolts |
25-40 (35-55) |
| Sedan |
| Automatic Seat Belt Guide Rail Mounting Bolt (Lower) |
12-17 (16-23) |
| Motor Mounting Bolts |
25-40 (35-55) |
| Rear Seat Belt Anchor Plate Bolt |
25-40 (35-55) |
| All Models |
| Bezel To Reactor Bolt (For Lap Belt) |
25-40 (35-55) |
| Buckle Mounting Bolt |
25-40 (35-55) |

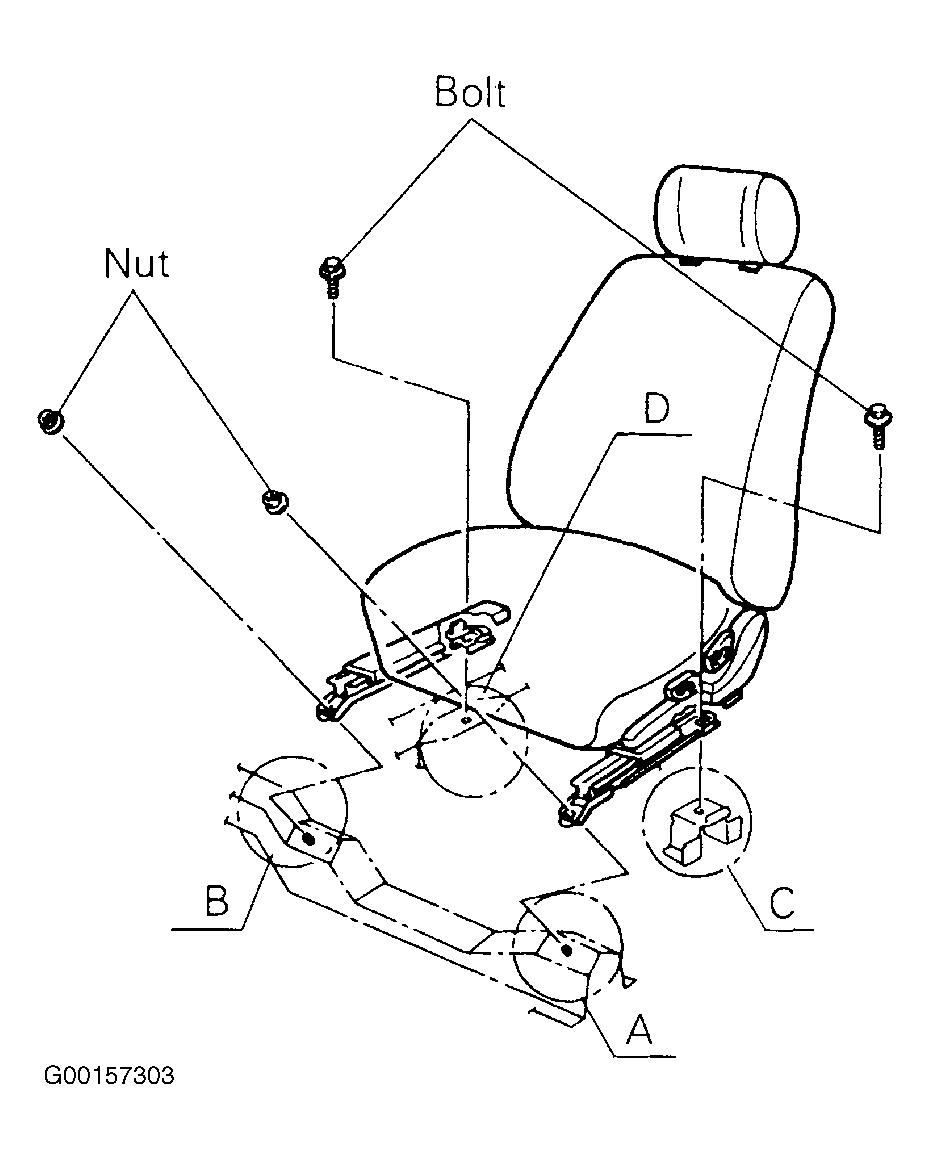

| Front Seat Mounting Bolts (C & D) |
25-40 (35-55) |
| Front Seat Mounting Nuts (A & B) |
17-26 (24-36) |
| INCH Lbs. (N.m) |
| Hatchback |
| Automatic Seat Belt Guide Rail Mounting Bolt (Upper) |
35-53 (4-6) |
| Sedan |
| Automatic Seat Belt Guide Rail Mounting Bolt (Upper) |
35-53 (4-6) |
| All Models |
| Seat Belt Guide Ring Bolt |
80-124 (9-14) |
