Trouble Shooting

Trouble shoot customer complaint by symptom. See Fig 1 . For Check Charts referred to in the automatic seat belt trouble shooting table, see CIRCUIT TESTS  . For testing individual components, see COMPONENT TESTS  .

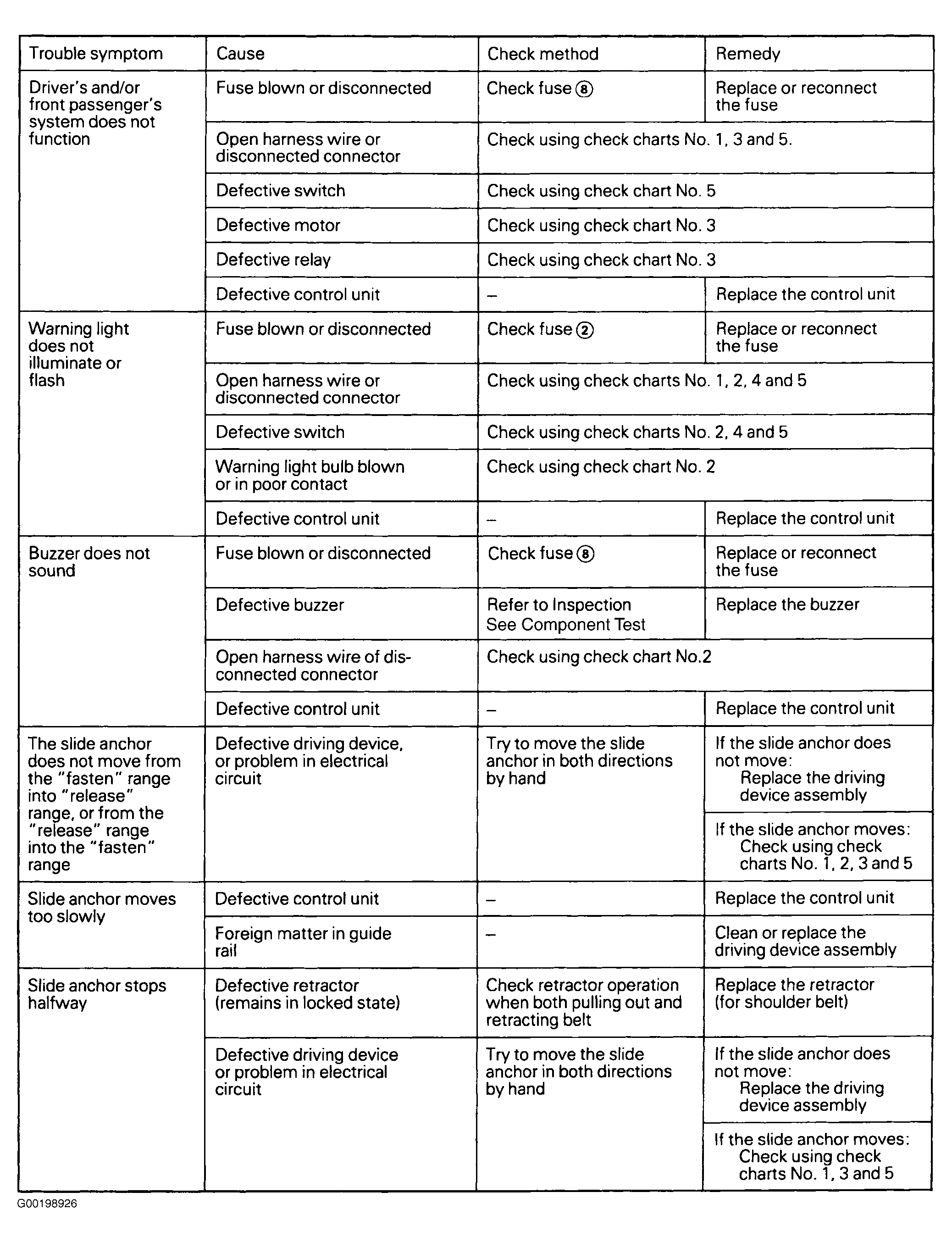

Fig 1: Trouble Shooting Automatic Seat Belts By Symptom
G00198926Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
