Passive Restraint Systems: Wiring Diagram

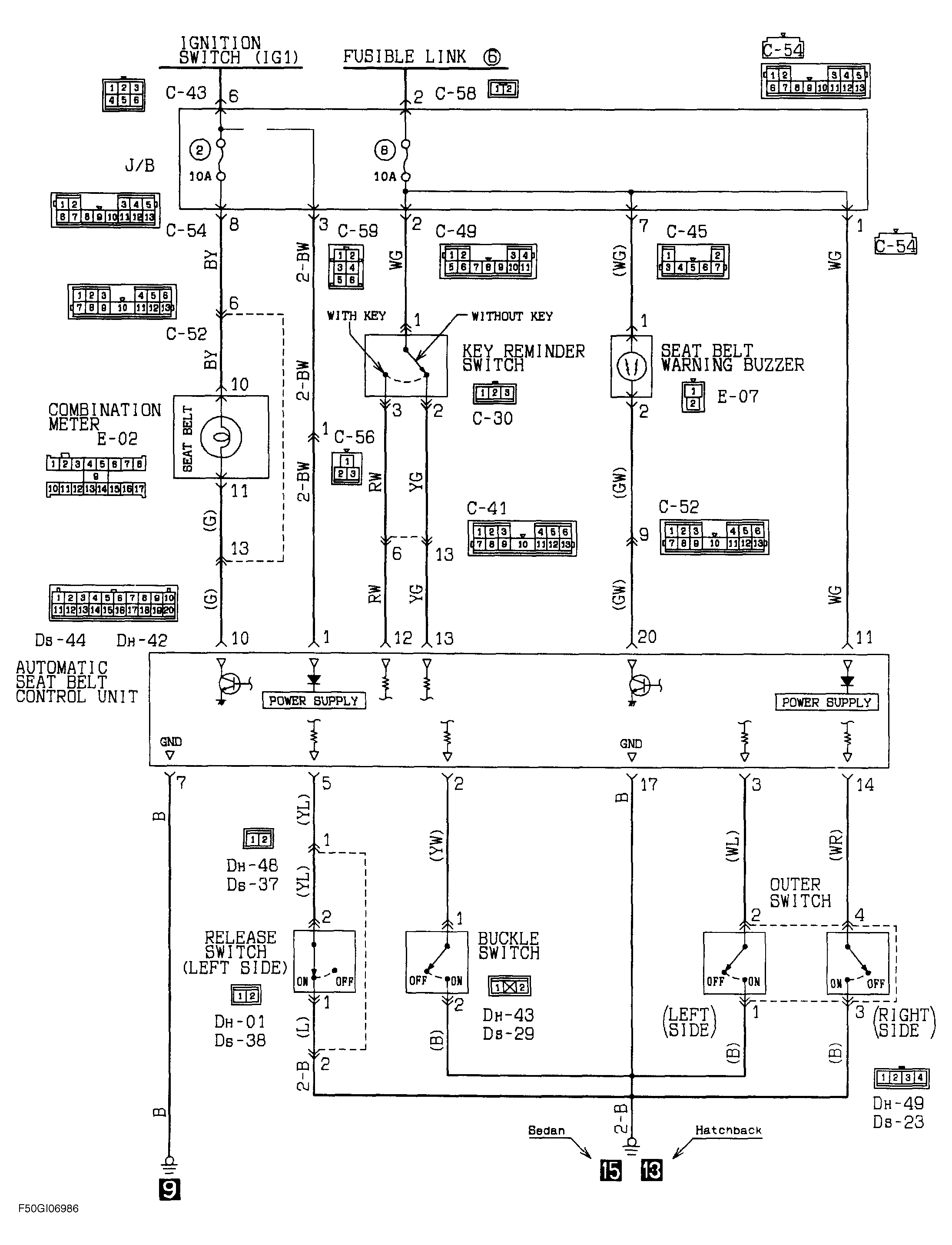

Fig 1: Automatic Seat Belt Wiring Diagram (1990 - 1 Of 2)
G50G06986

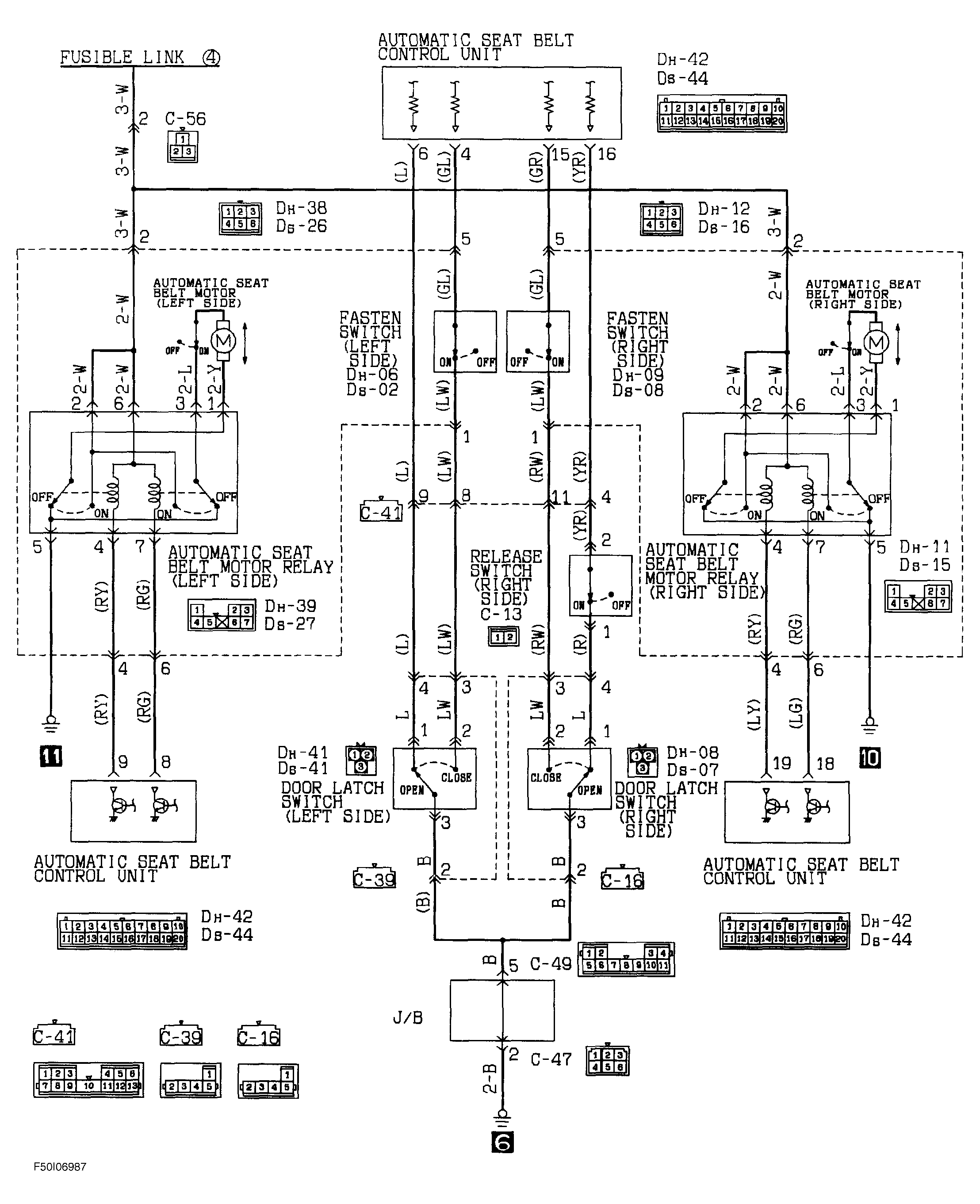

Fig 2: Automatic Seat Belt Wiring Diagram (1990 - 2 Of 2)
G50I06987

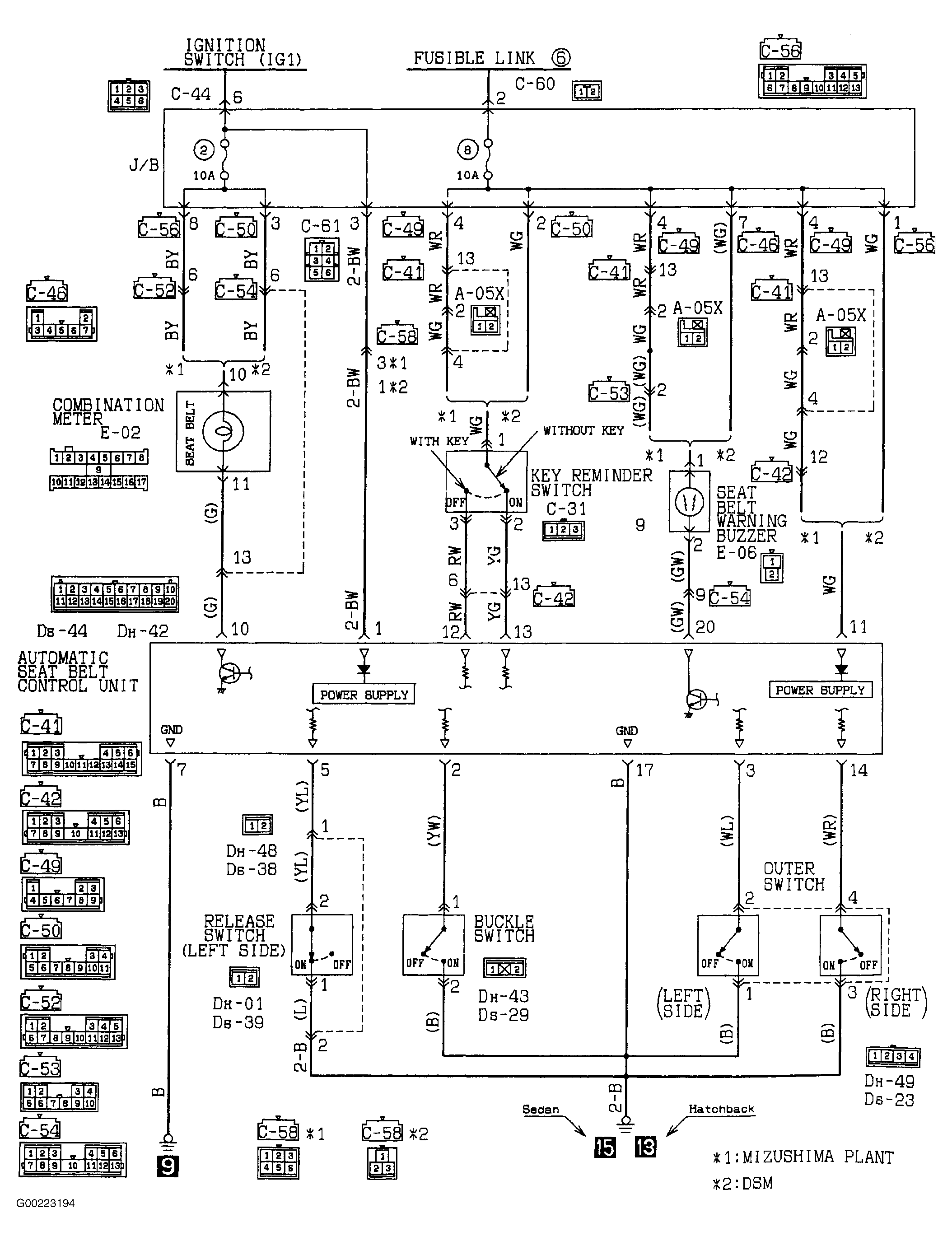

Fig 3: Automatic Seat Belt Wiring Diagram (1991-92 - 1 Of 2)
G00223194Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

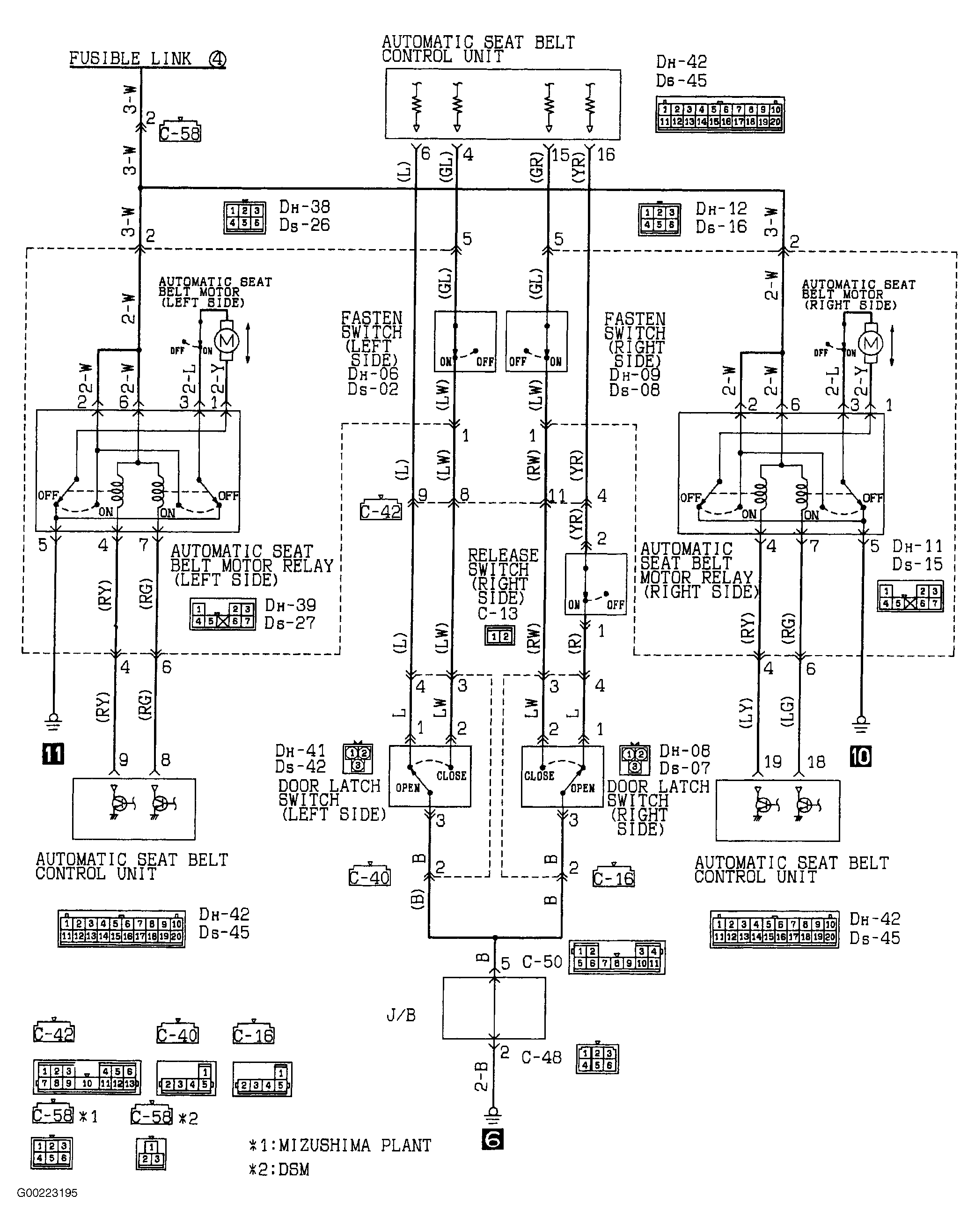

Fig 4: Automatic Seat Belt Wiring Diagram (1991-92 - 2 Of 2)
G00223195Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
