Power Window Switch

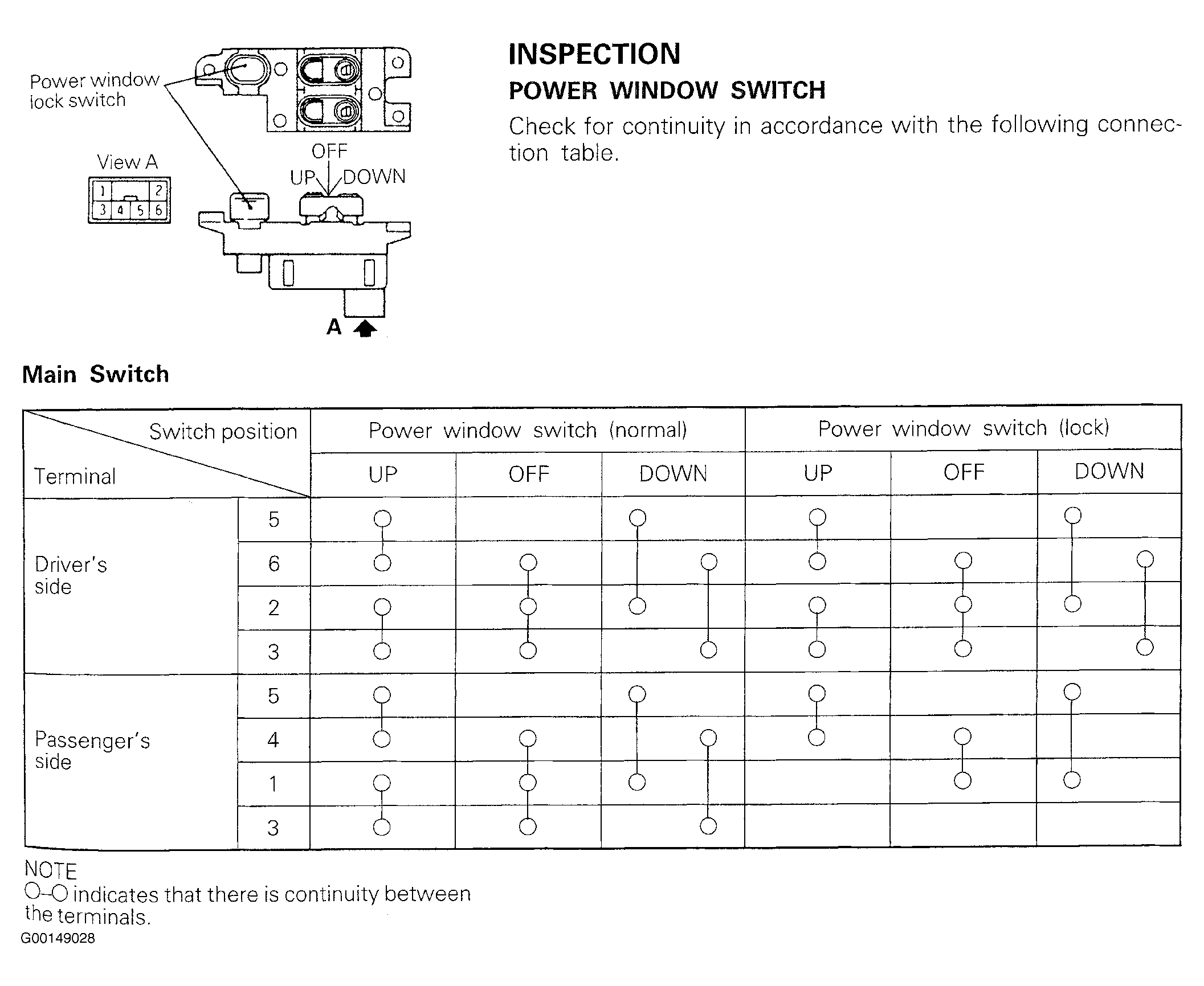

Fig 1: Power Window Main Switch Continuity Test
G00149028Courtesy of DAIMLERCHRYSLER CORPORATION
