Service Points Of Installation

To install, reverse reversal procedure.

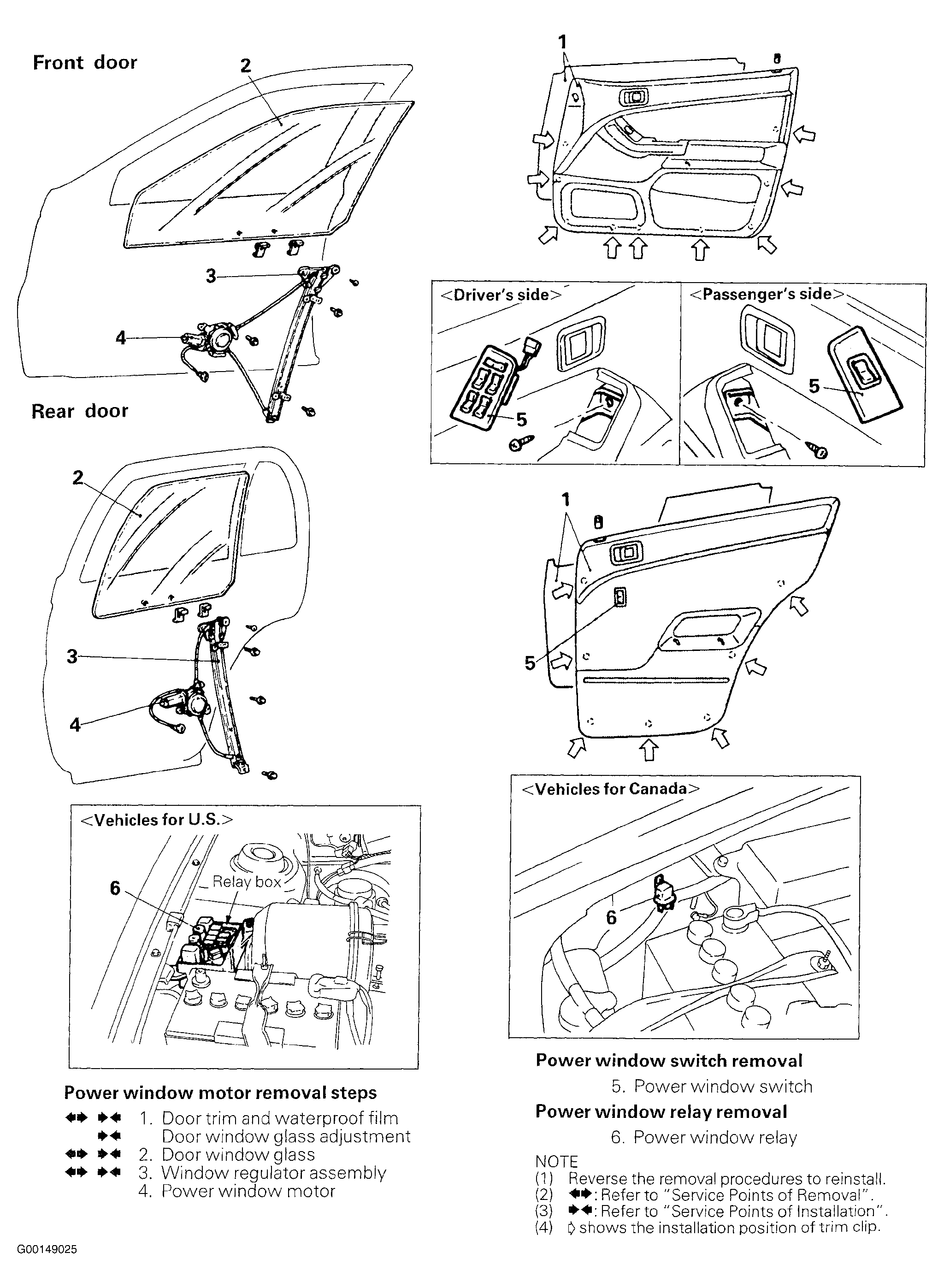

Fig 1: Removing/Installing Power Window Glass, Motor & Switches (Sedan)
G00149025Courtesy of DAIMLERCHRYSLER CORPORATION
