Dr-3: Code 12 Airflow Sensor Circuit

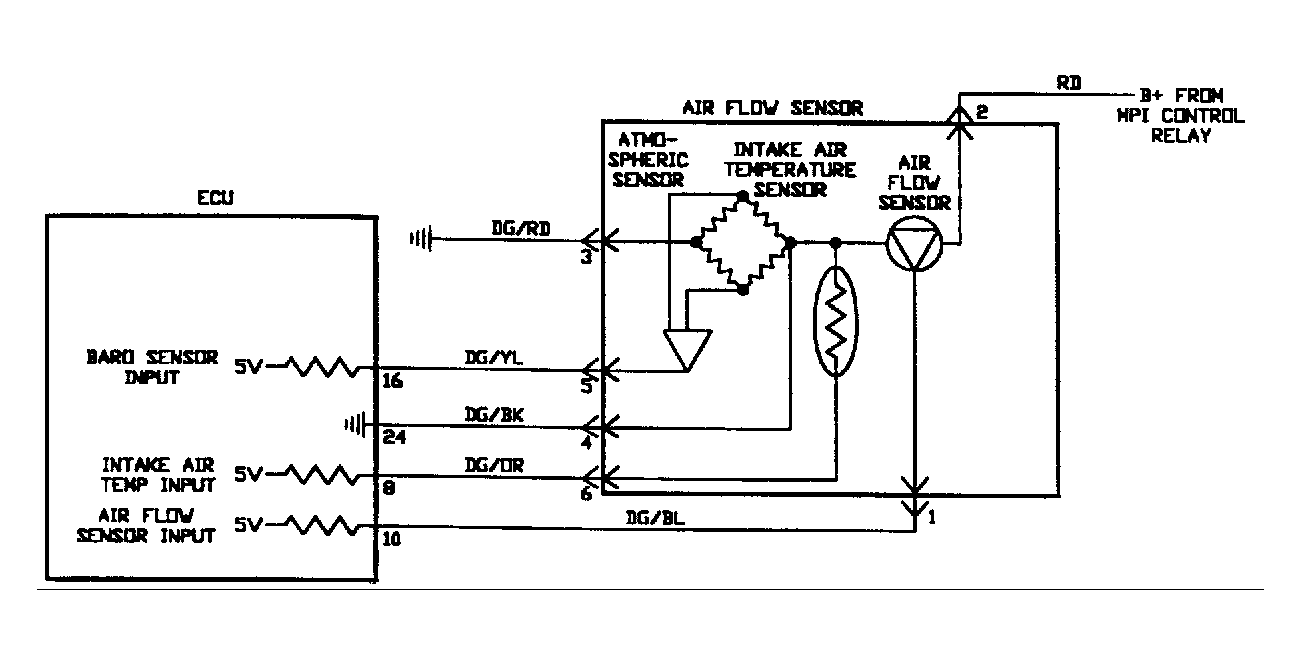

Fig 1: Circuit Diagram DR-3 (1.5L)

G90G15376

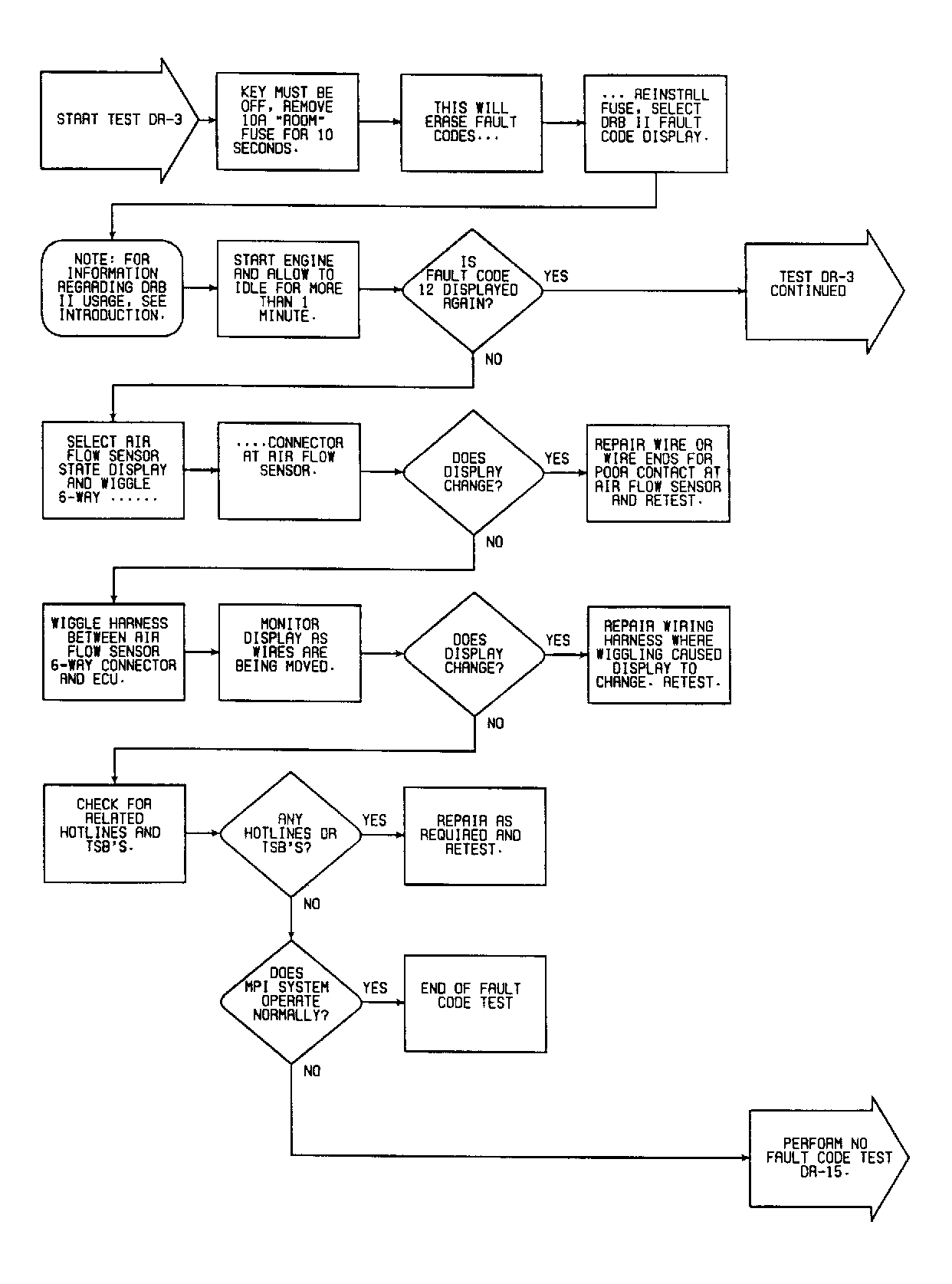

Fig 2: Flow Chart DR-3 (1.5L) (1 of 3)

G90B15439

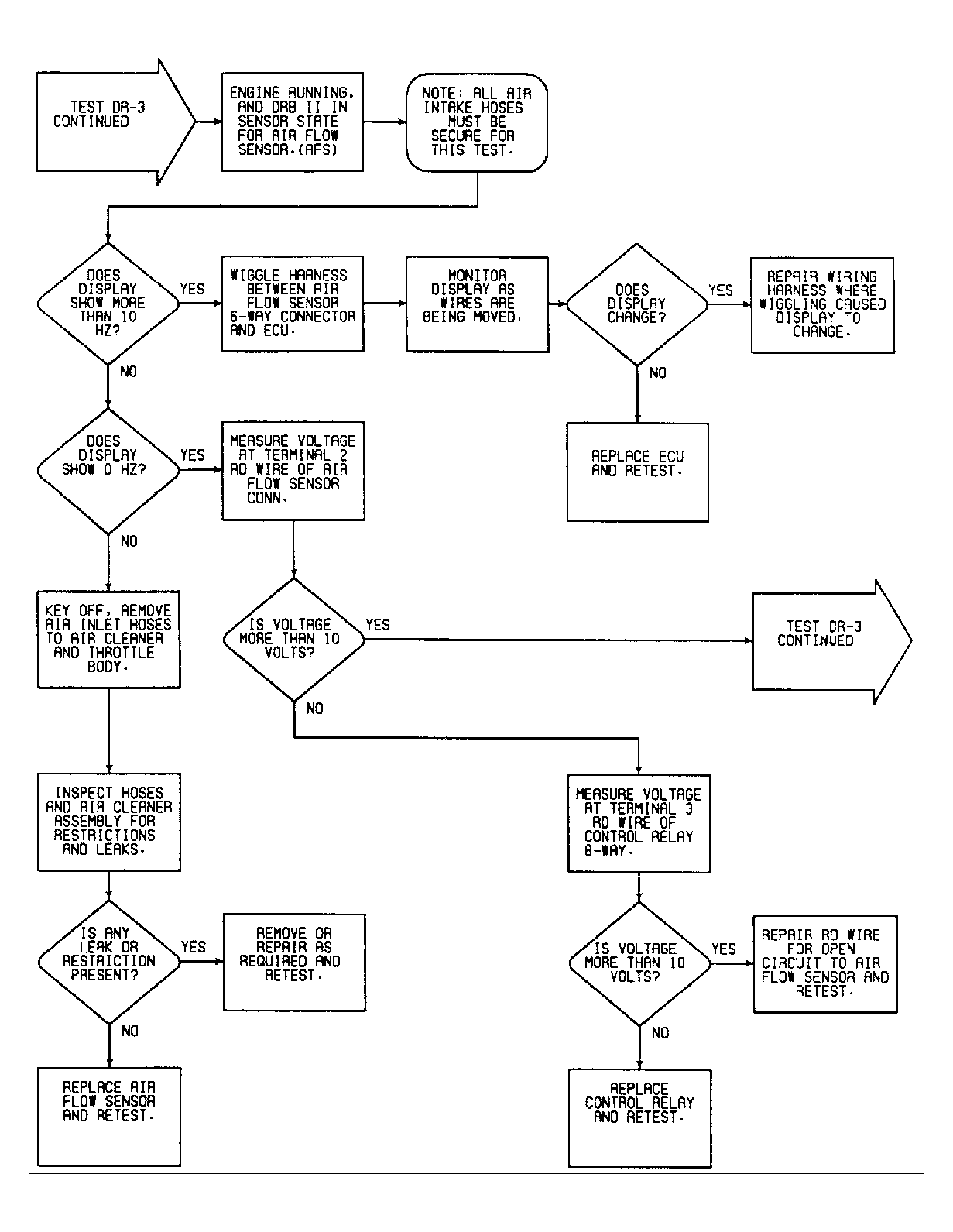

Fig 3: Flow Chart DR-3 (1.5L) (2 of 3)

G90E15440

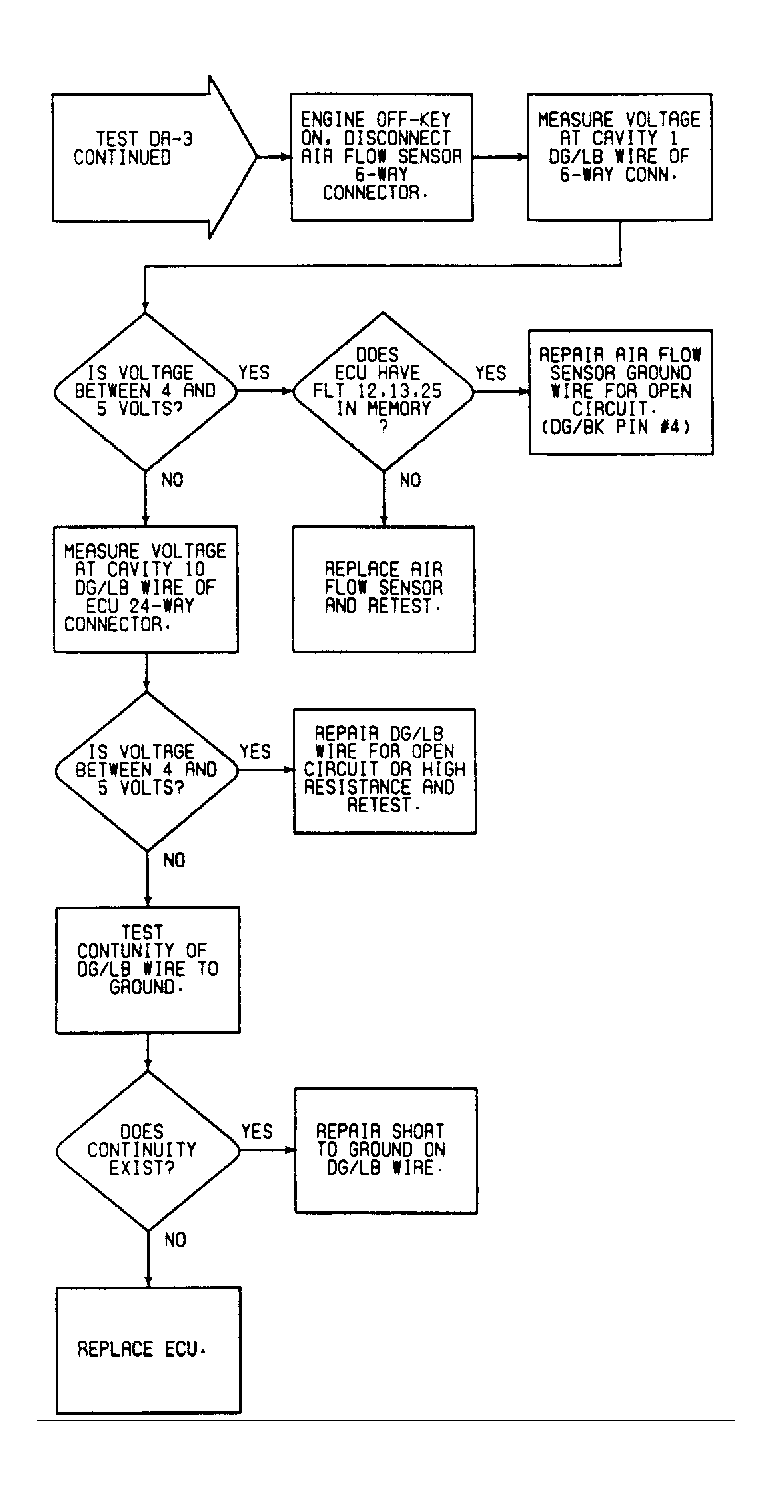

Fig 4: Flow Chart DR-3 (1.5L) (3 of 3)

G90F15441
