Dr-7: Code 21 Coolant Temperature Circuit

Fig 1: Circuit Diagram DR-7 (1.6L)
G90C15422

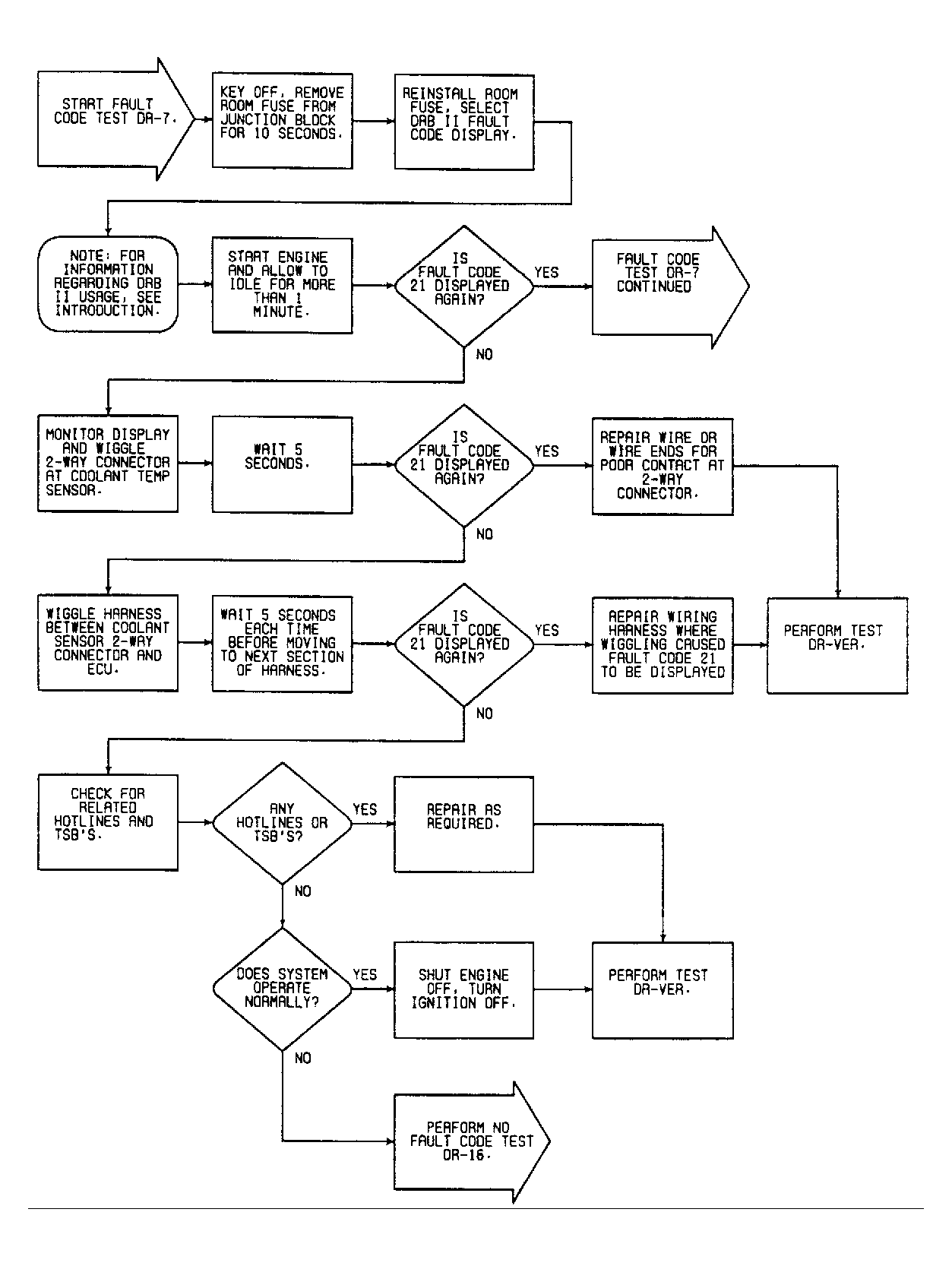

Fig 2: Flow Chart DR-7 (1.6L) (1 of 2)
G90I19941

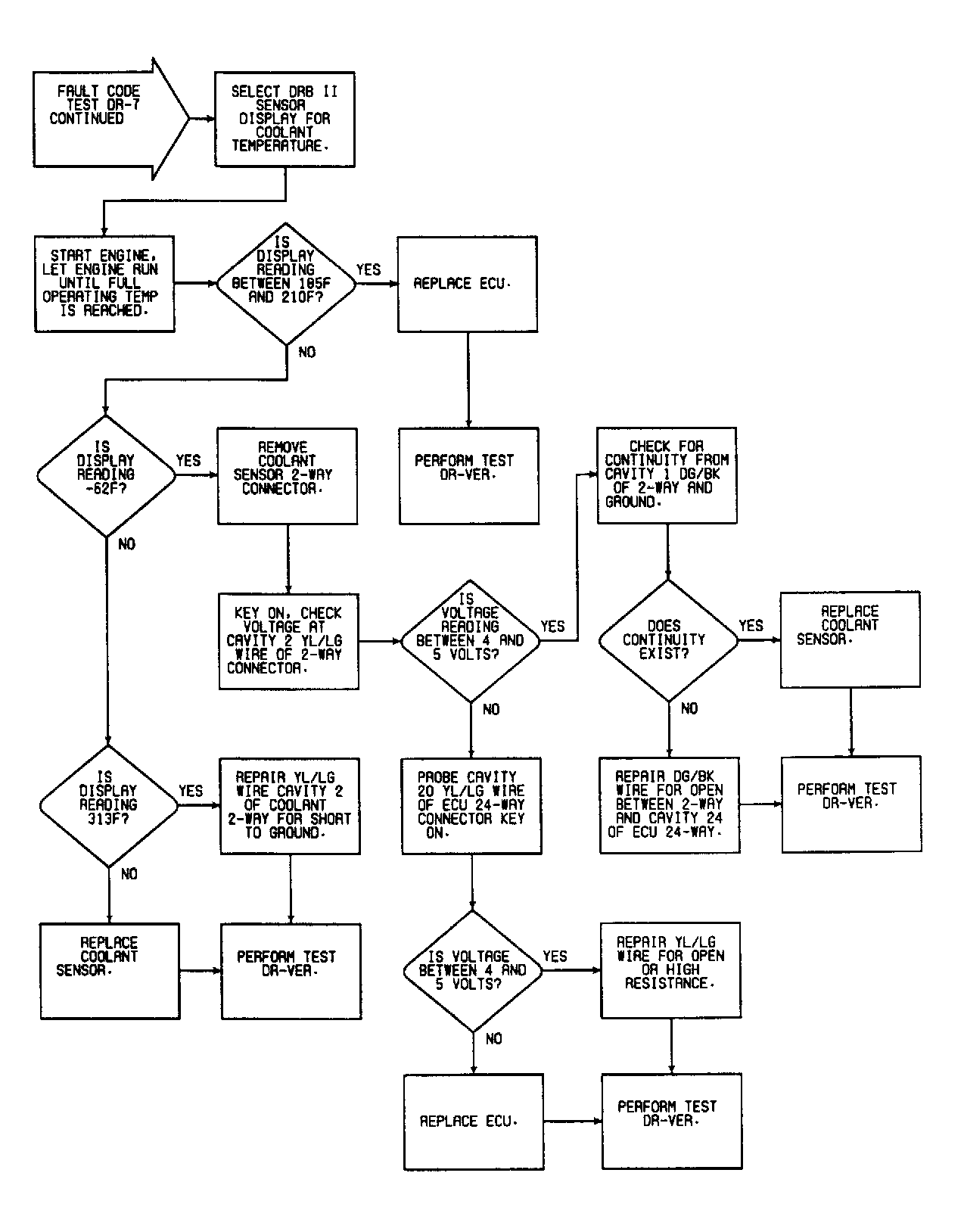

Fig 3: Flow Chart DR-7 (1.6L) (2 of 2)
G90J19942
