Dr-15: No Fault Code Testing

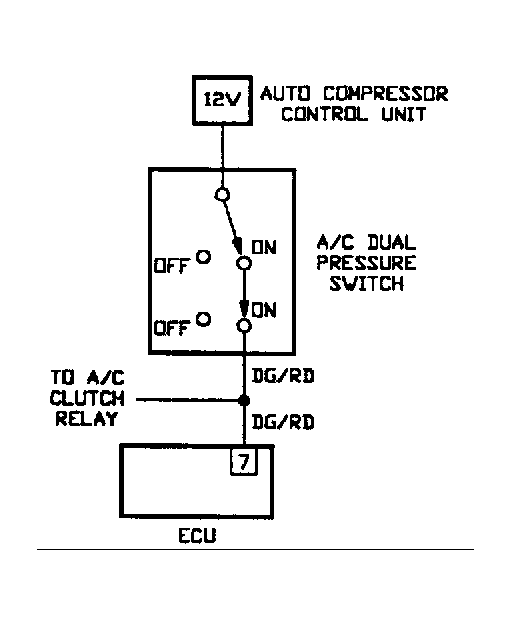

Fig 1: Circuit Diagram DR-15 (1.8L) (1 of 2)

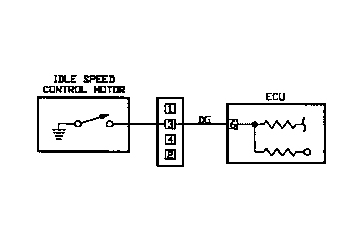

Fig 2: Circuit Diagram DR-15 (1.8L) (2 of 2)

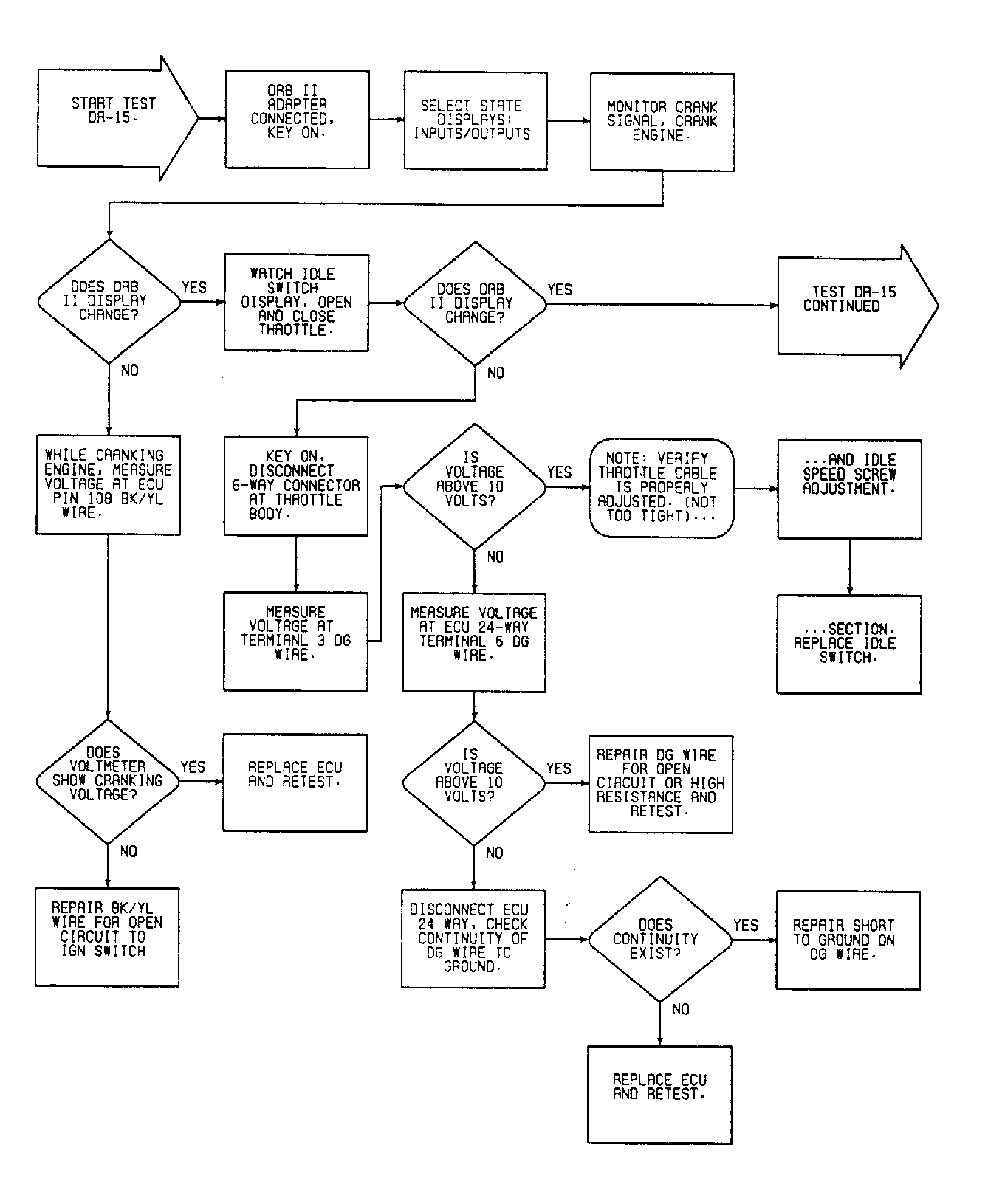

Fig 3: Flow Chart DR-15 (1.8L) (1 of 2)

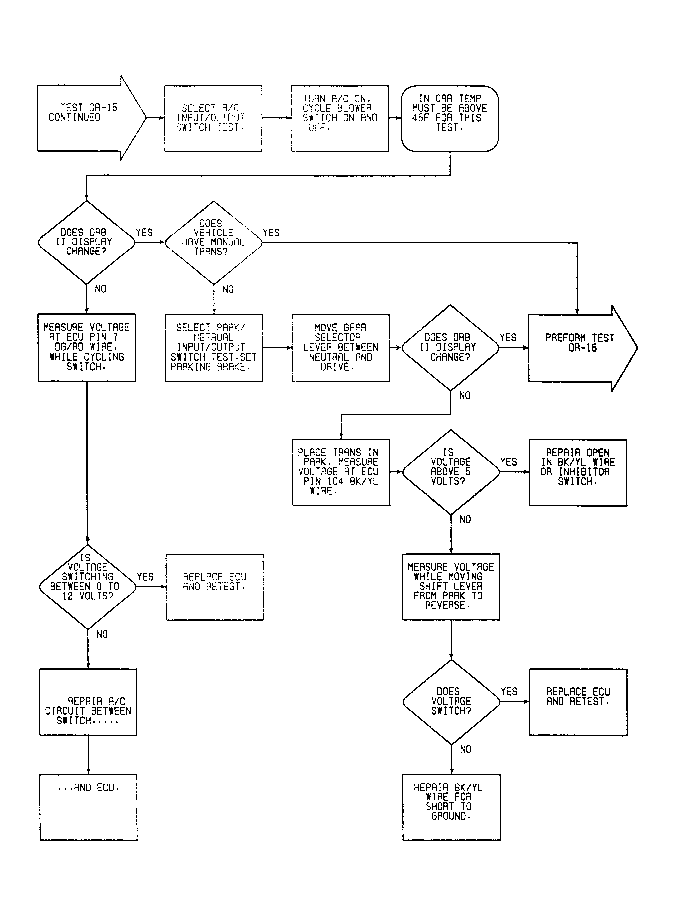

Fig 4: Flow Chart DR-15 (1.8L) (2 of 2)

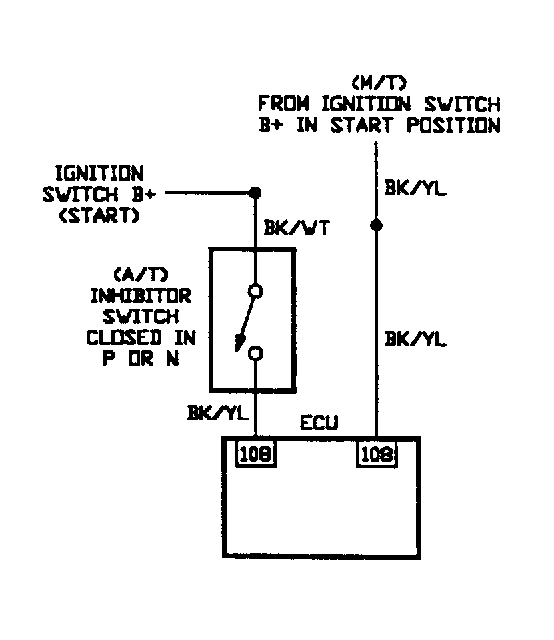

Fig 5: Circuit Diagram DR-15 (1.8L) (1 of 2)

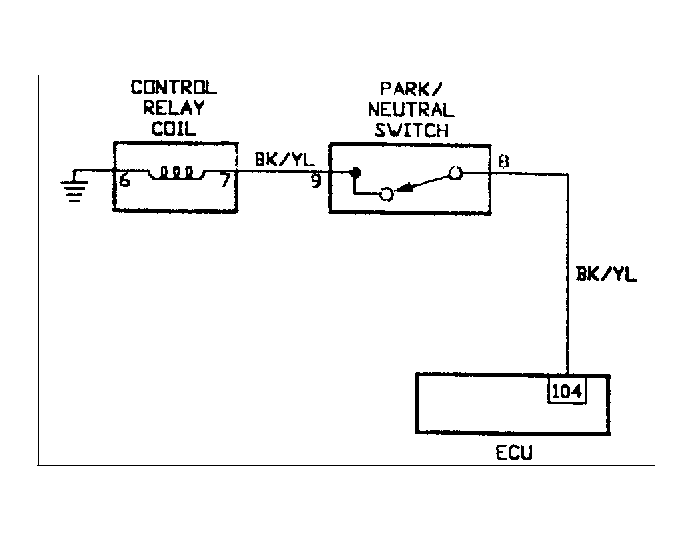

Fig 6: Circuit Diagram DR-15 (1.8L) (2 of 2)
