Dr-3: Code 12 Airflow Sensor Circuit

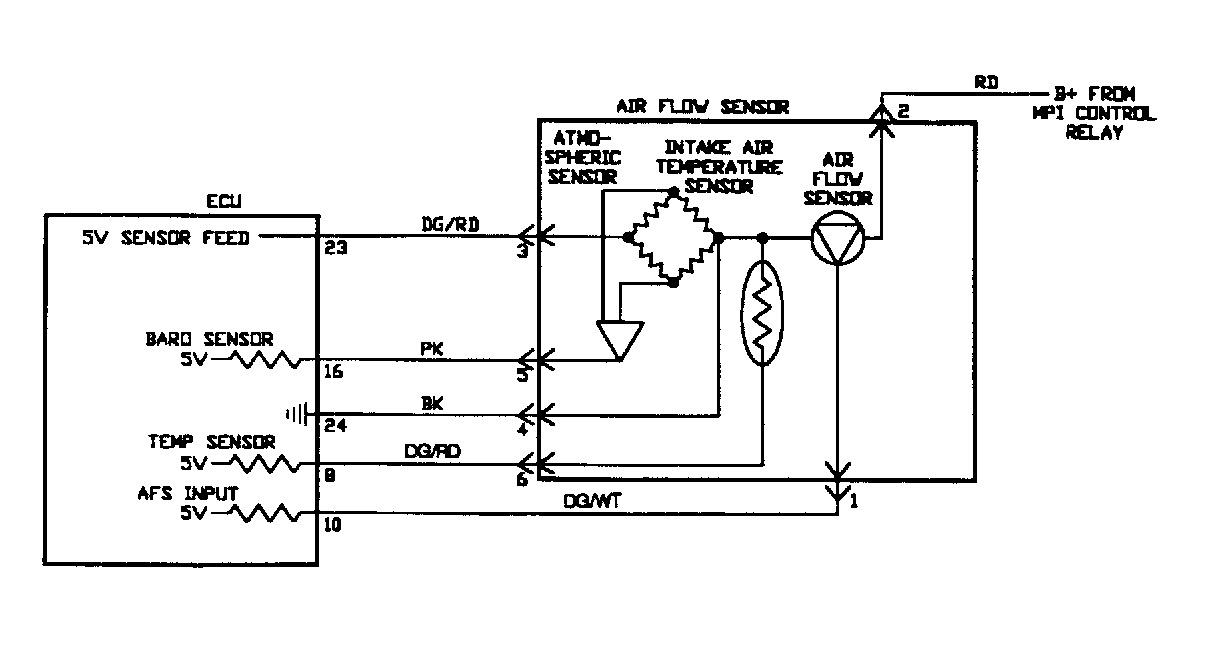

Fig 1: Circuit Diagram DR-3 (1.8L)

G90F20144

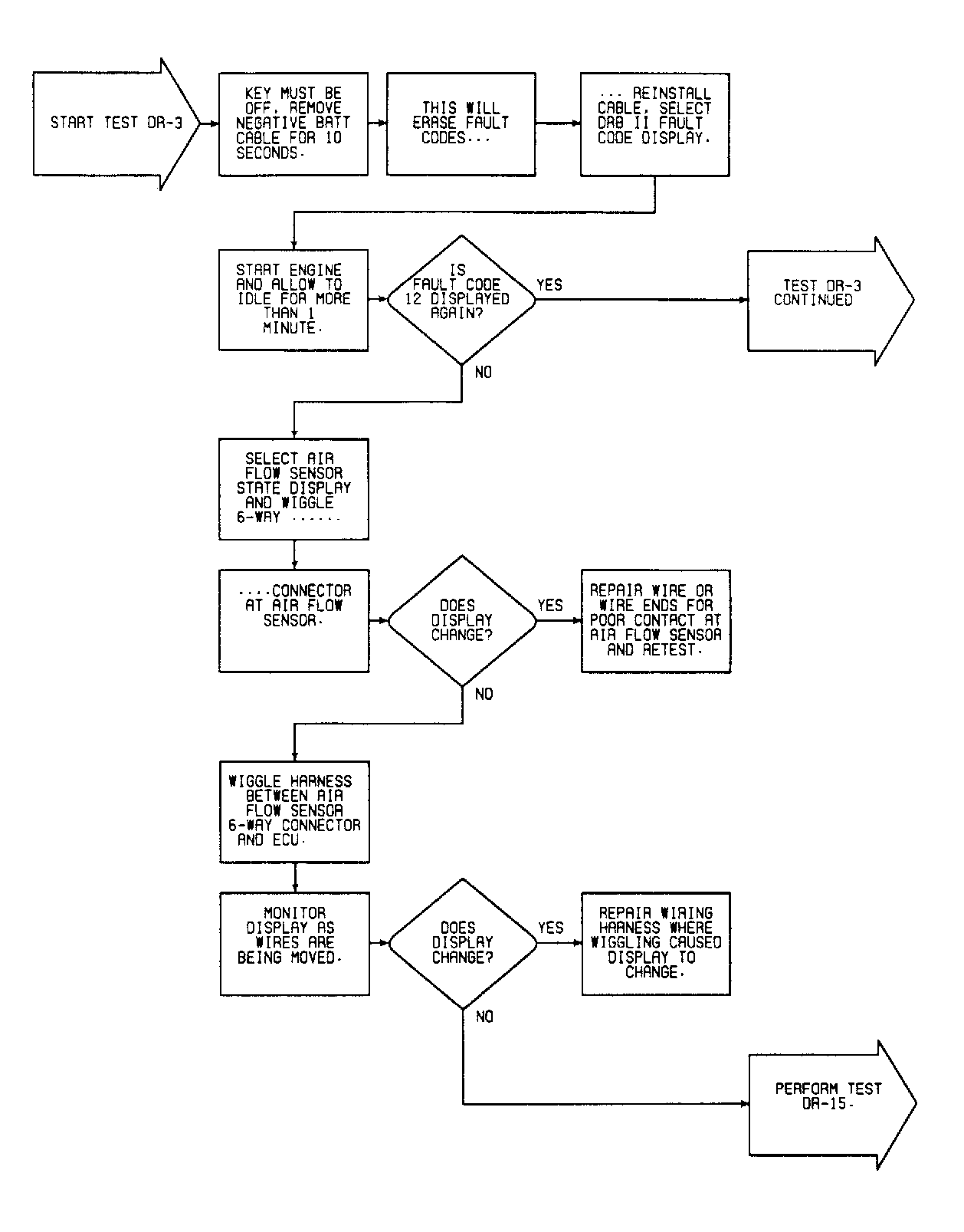

Fig 2: Flow Chart DR-3 (1.8L) (1 of 3)

G90D02091

Fig 3: Flow Chart DR-3 (1.8L) (2 of 3)

G90F02092

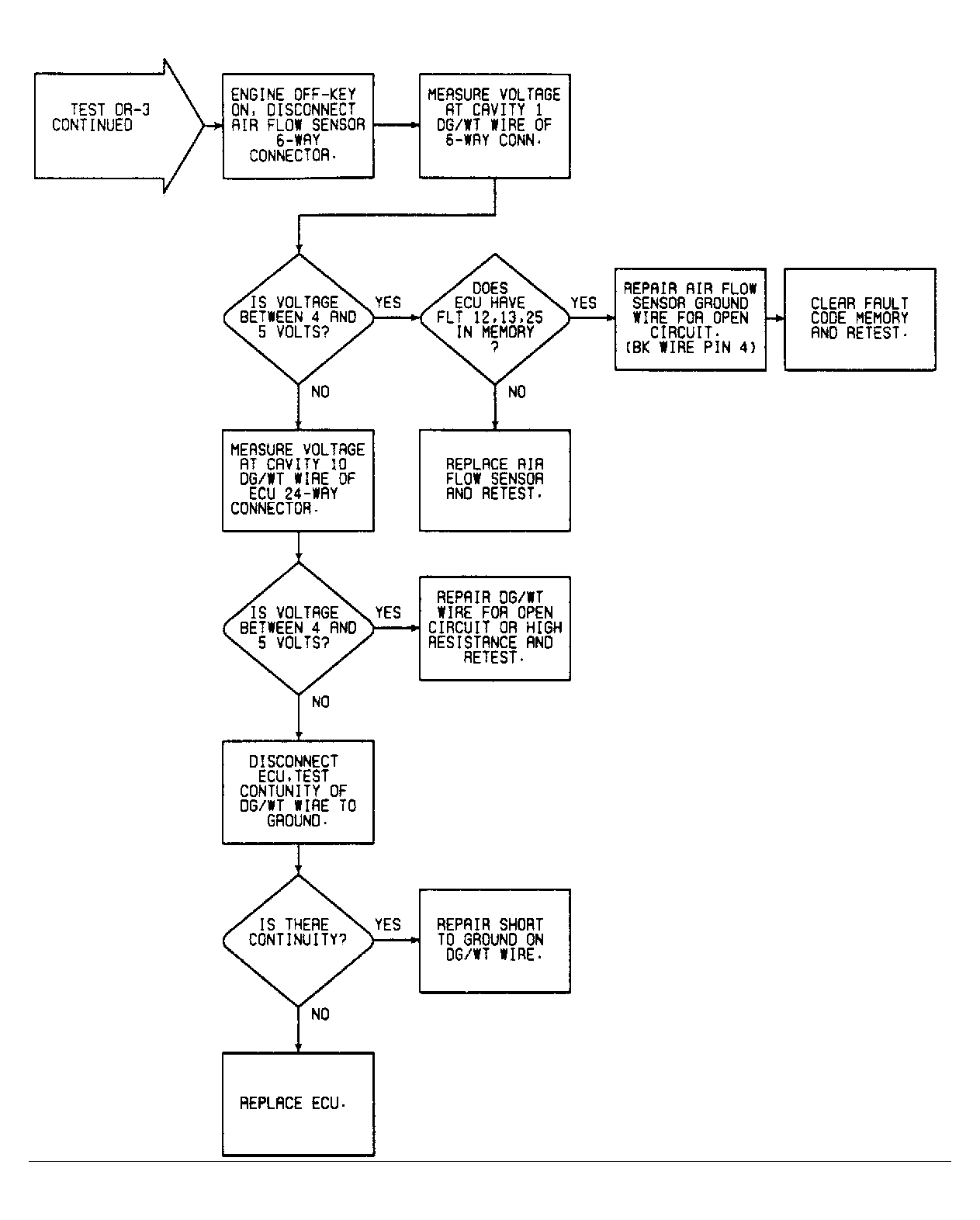

Fig 4: Flow Chart DR-3 (1.8L) (3 of 3)

G90H02093
