Eagle
>>
1990
>>
Summit Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Test Charts - 1.8L
>>
Dr-8: Testing Diagnostic Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dr-8: Testing Diagnostic Connector
Fig 1: Circuit Diagram DR-8 (1.8L)

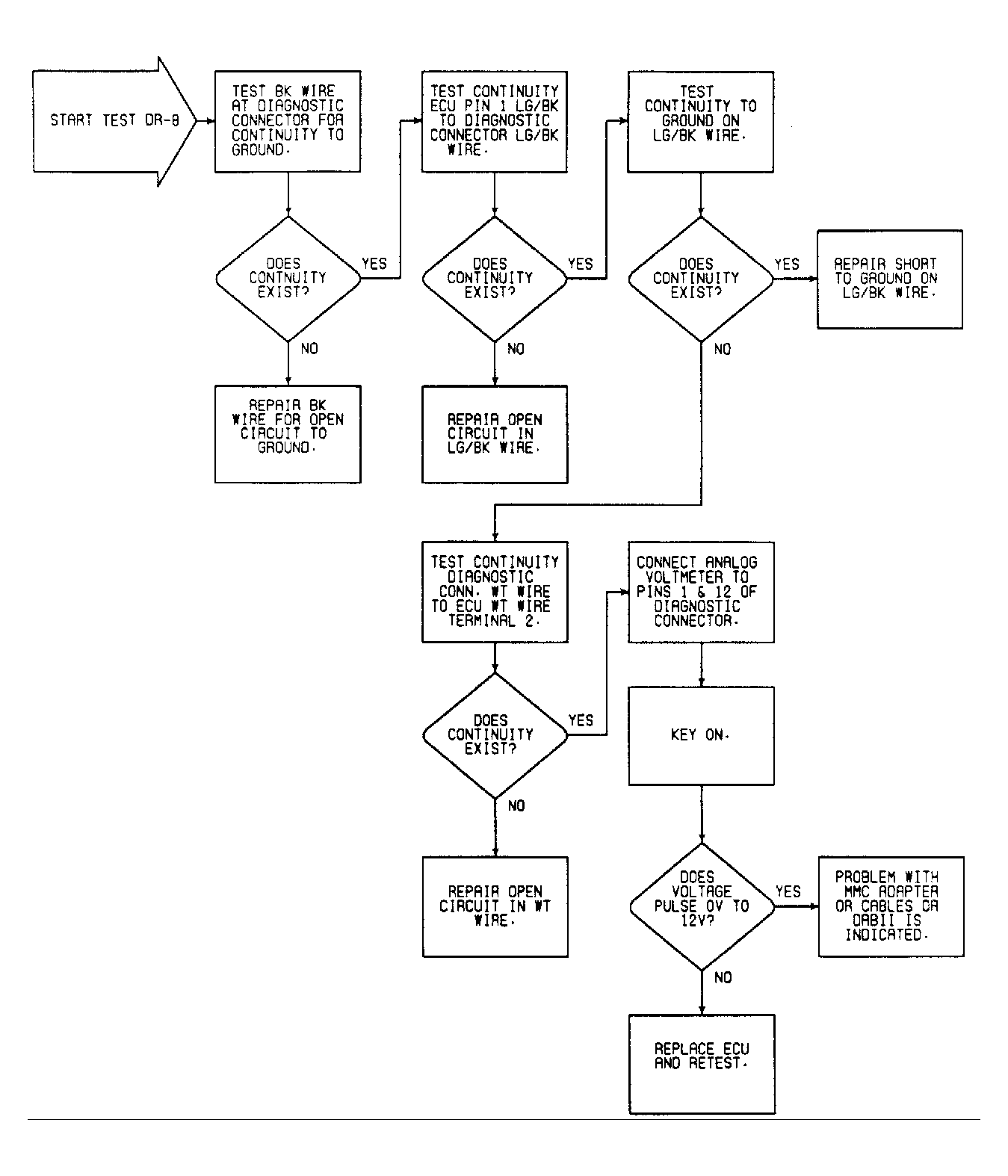

Fig 2: Flow Chart DR-8 (1.8L)
