Dr-9: Code 23 Top Dead Center Sensor Connector

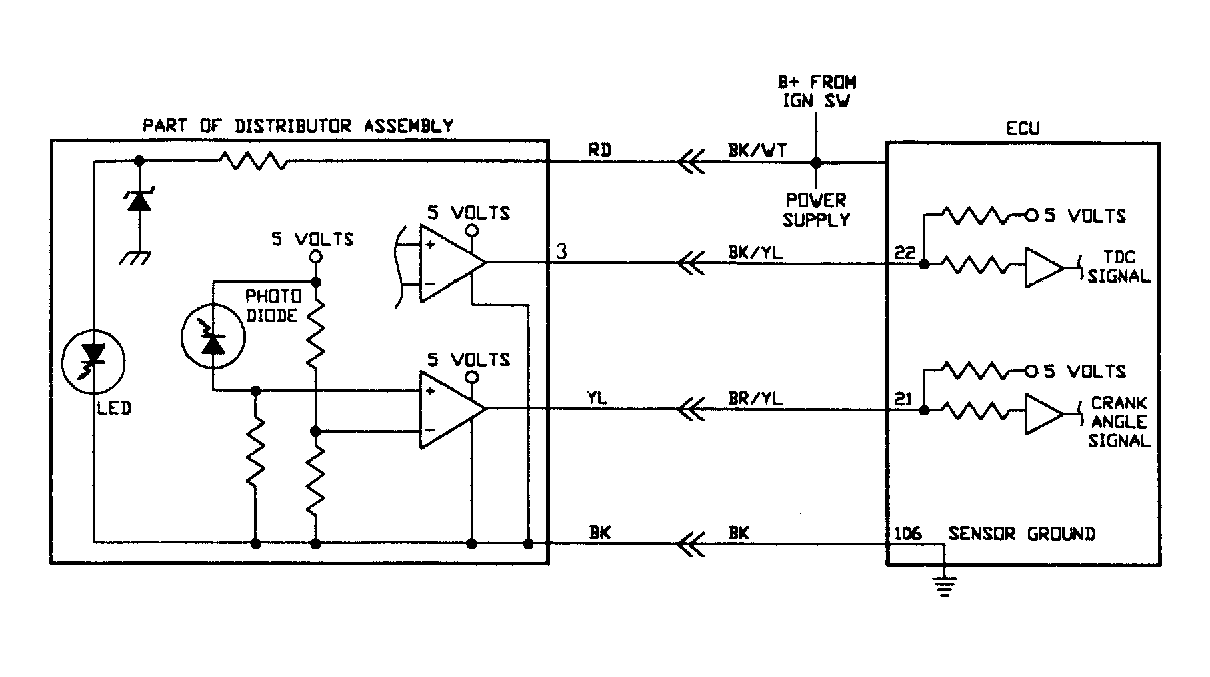

Fig 1: Circuit Diagram DR-9 (1.8L)

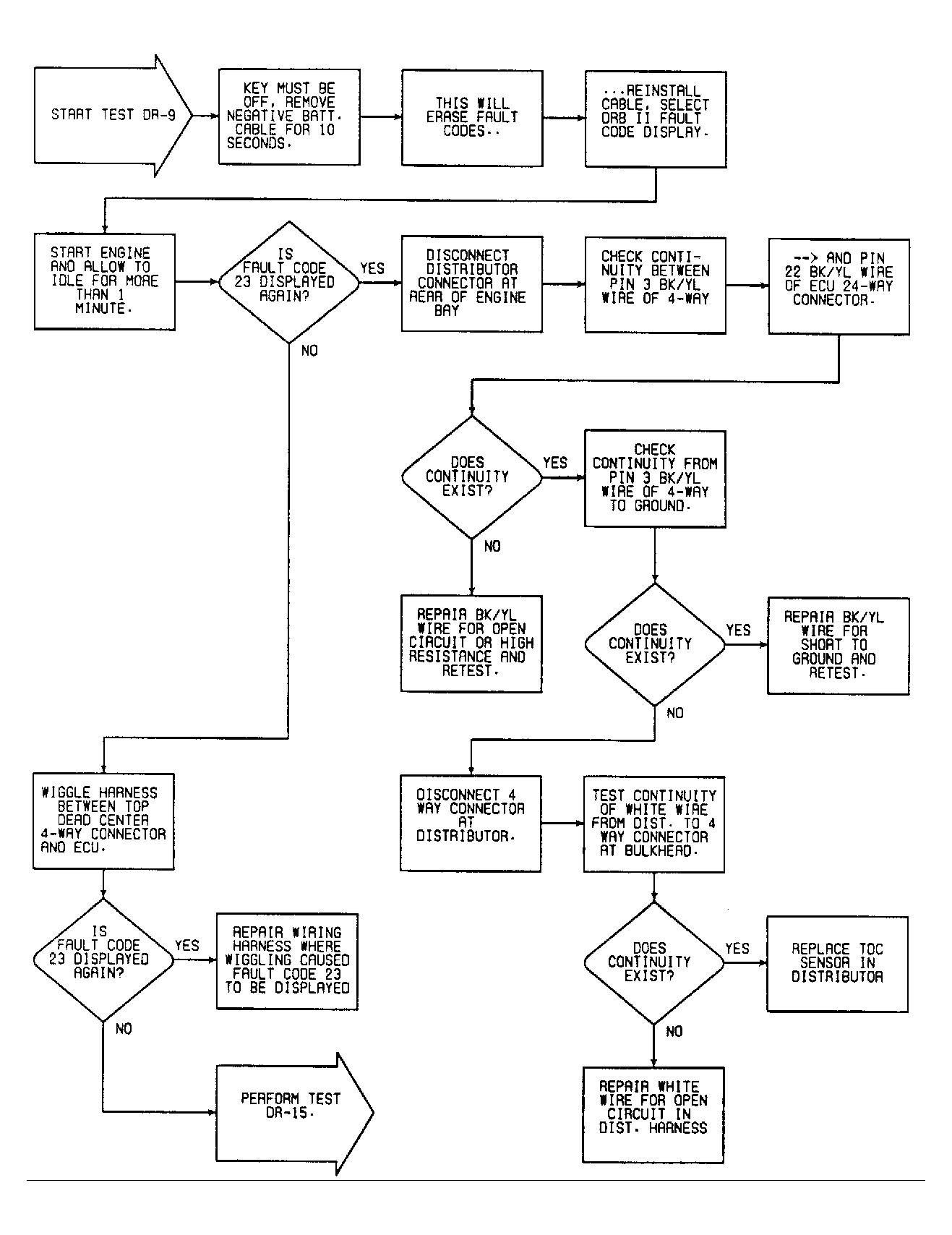

Fig 2: Flow Chart DR-9 (1.8L)
