Component Location

AUTOMATIC SEAT BELT COMPONENT LOCATIONS

Application

⁽¹⁾ Symbol/Location

Automatic Seat Belt Control Unit

Fig 8 "G"

Automatic Seat Belt Motor (2 Door)

Fig 4 "C"

Automatic Seat Belt Motor (4 Door)

Fig 5 "C"

Automatic Seat Belt Motor Relay (2 Door)

Fig 4 "D"

Automatic Seat Belt Motor Relay (4 Door)

Fig 5 "D"

Buckle Switch

Fig 7 "F"

Buzzer

Fig 11 "K"

Door Latch Switch

Fig 3 "B"

Fasten Switch

Fig 2 "A"

Fusible Link No. 6 (Green, 40A)

In Engine Compartment Relay Box

Key Reminder Switch

Fig 9 "I"

Outer Switch

Fig 8 "H"

Passenger Compartment Junction Block (Fuse Block)

Fig 12

Seat Belt Warning Light

Fig 10 "J"

Release Switch

Fig 6 "E"

Body Ground 6

Behind Instrument Cluster, On Cross Body Brace

Body Ground 9

In Passenger Compartment, In Front Of Shift Lever Housing

Body Ground 11

At Base Of Left Side B Pillar, Near Seat Belt Motor

Body Ground 13 (Hatchback)

On Bottom Part Of Liftgate

Body Ground 15 (Sedan)

In Trunk, On Left Side Of Rear Panel

⁽¹⁾	To view symbols, see Fig 1 .

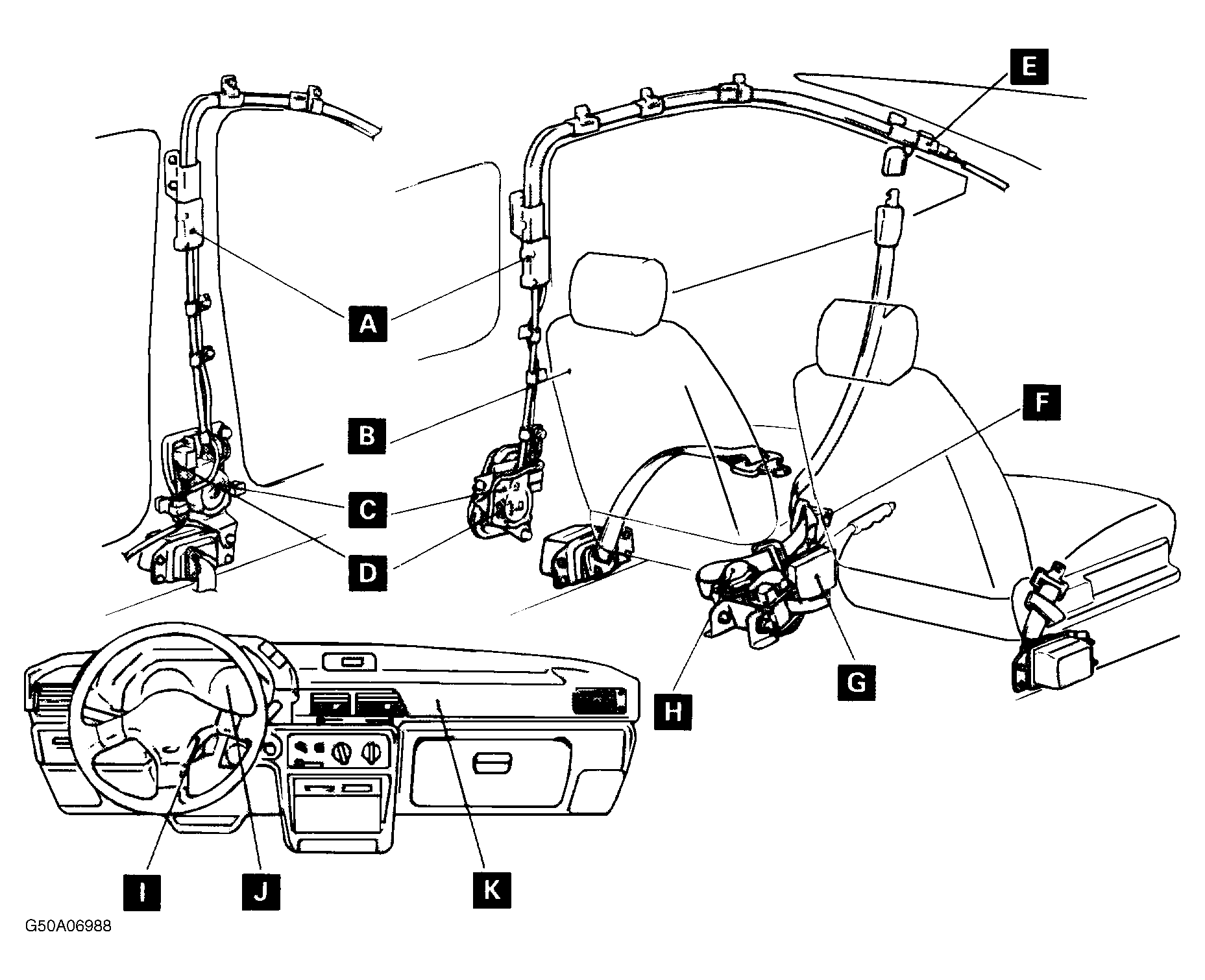

Fig 1: Automatic Seat Belt Component Locations (A-I)

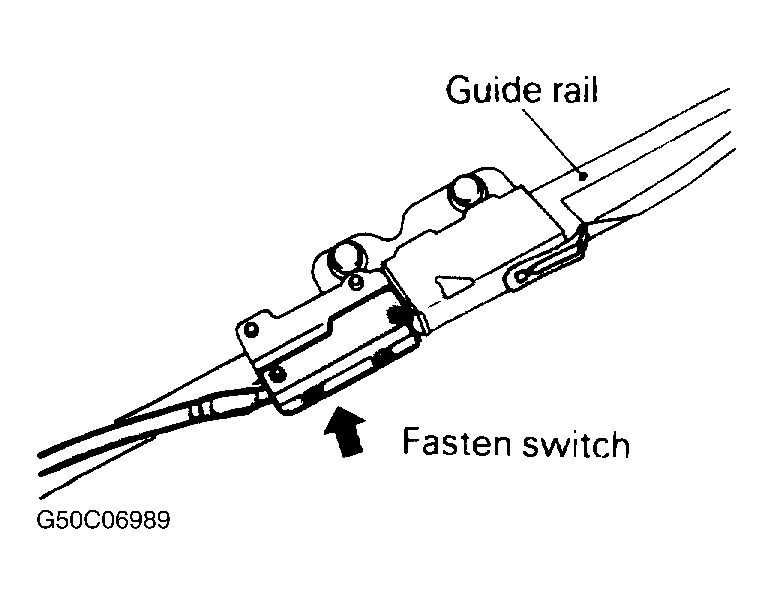

Fig 2: Guide Rail & Fasten Switch (Symbol A)

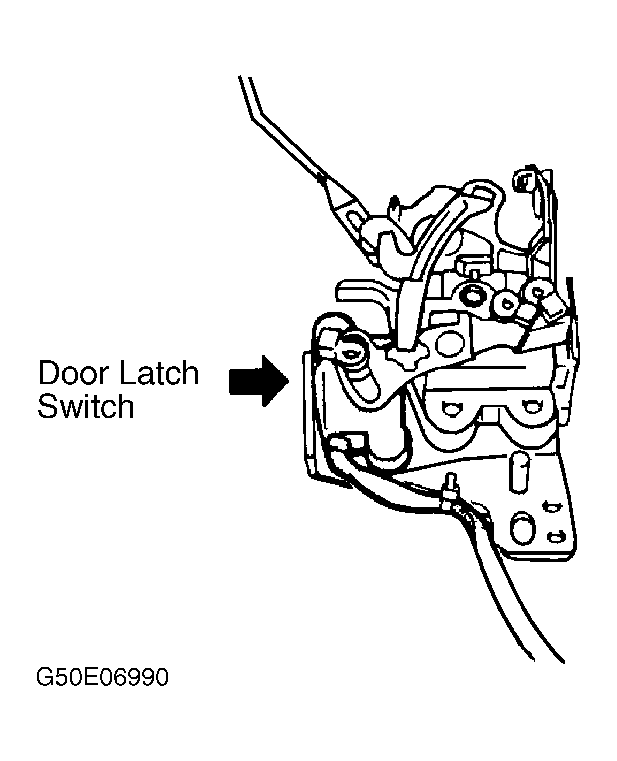

Fig 3: Door Latch Switch (Symbol B)

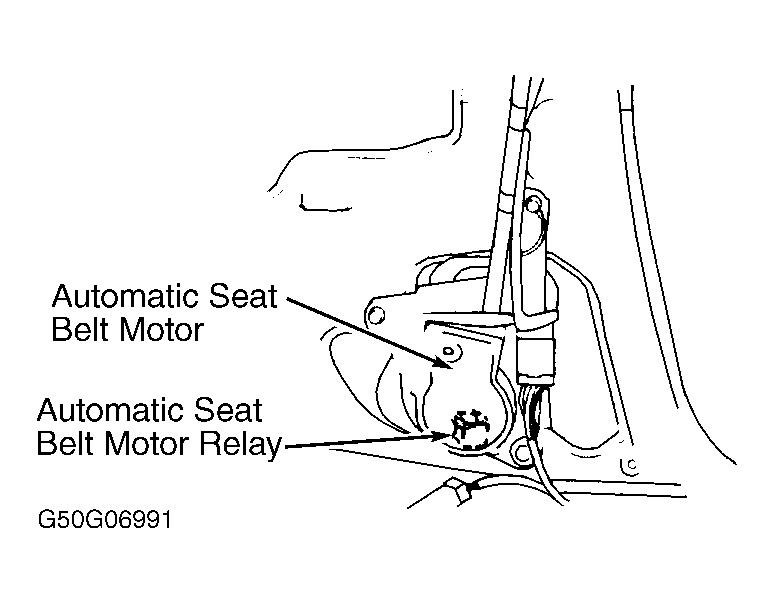

Fig 4: Auto. Seat Belt Motor Relay & Motor (Symbol C, D - Hatchback)

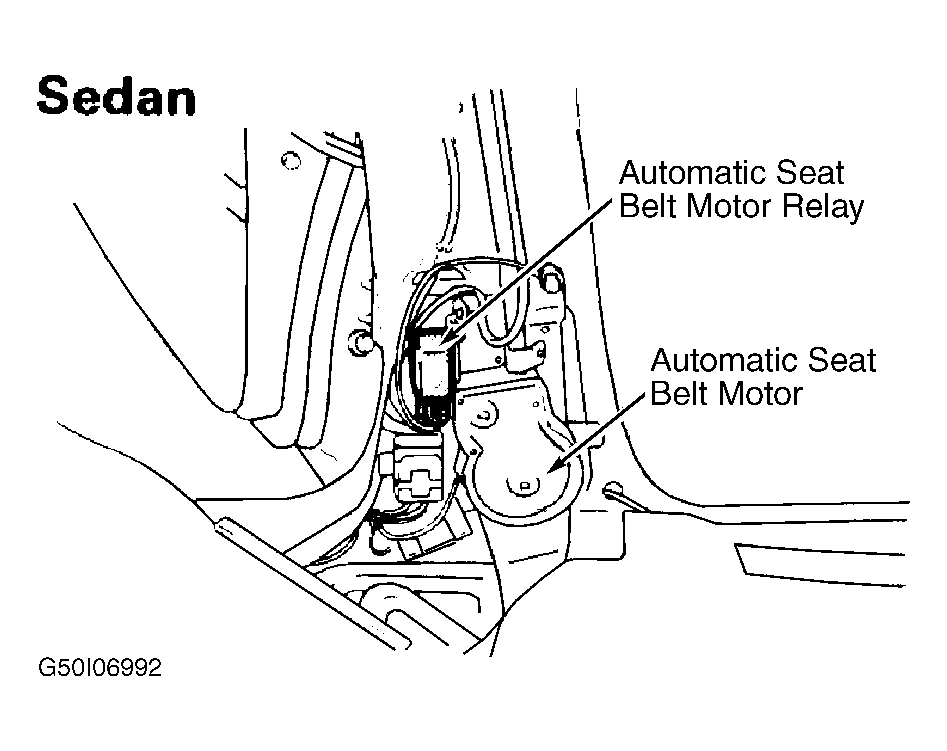

Fig 5: Auto. Seat Belt Motor Relay & Motor (Symbol C, D - Sedan)

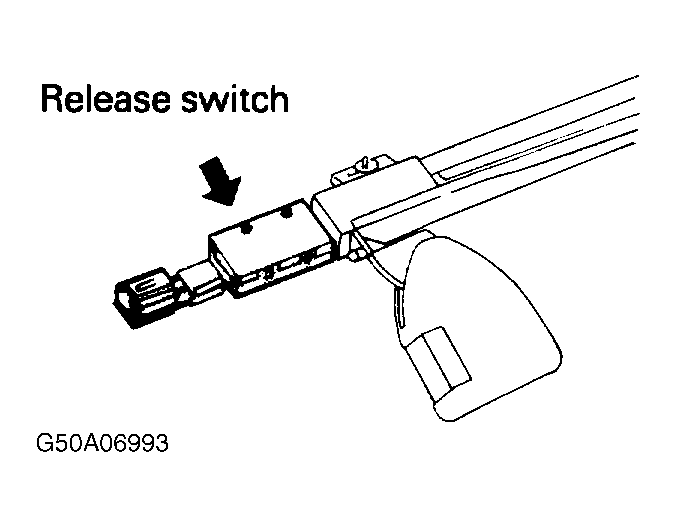

Fig 6: Release Switch (Symbol E)

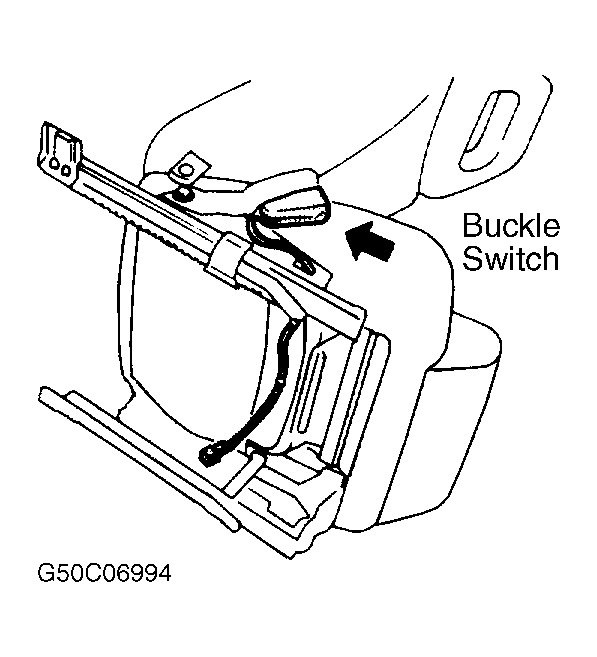

Fig 7: Buckle Switch (Symbol F)

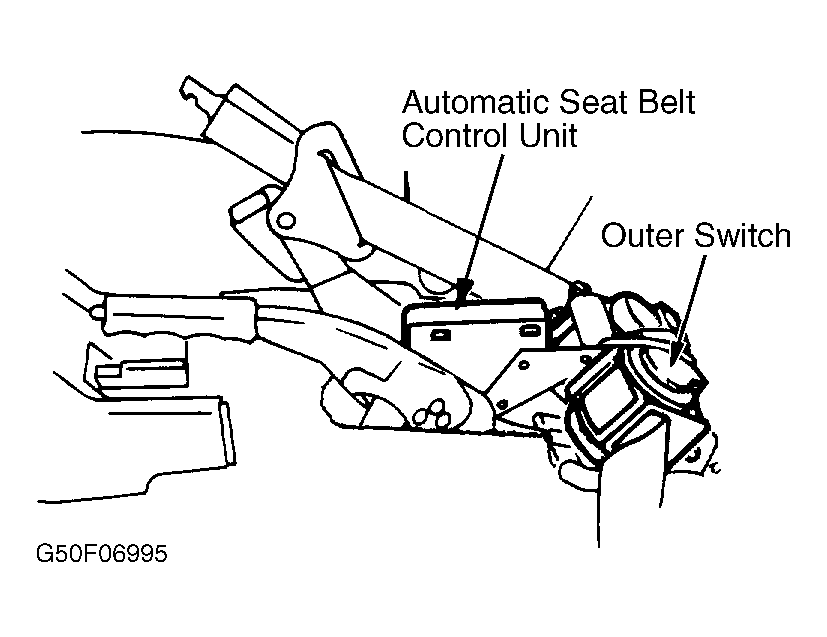

Fig 8: Automatic Seat Belt Control Unit & Outer Switch (Symbol G, H)

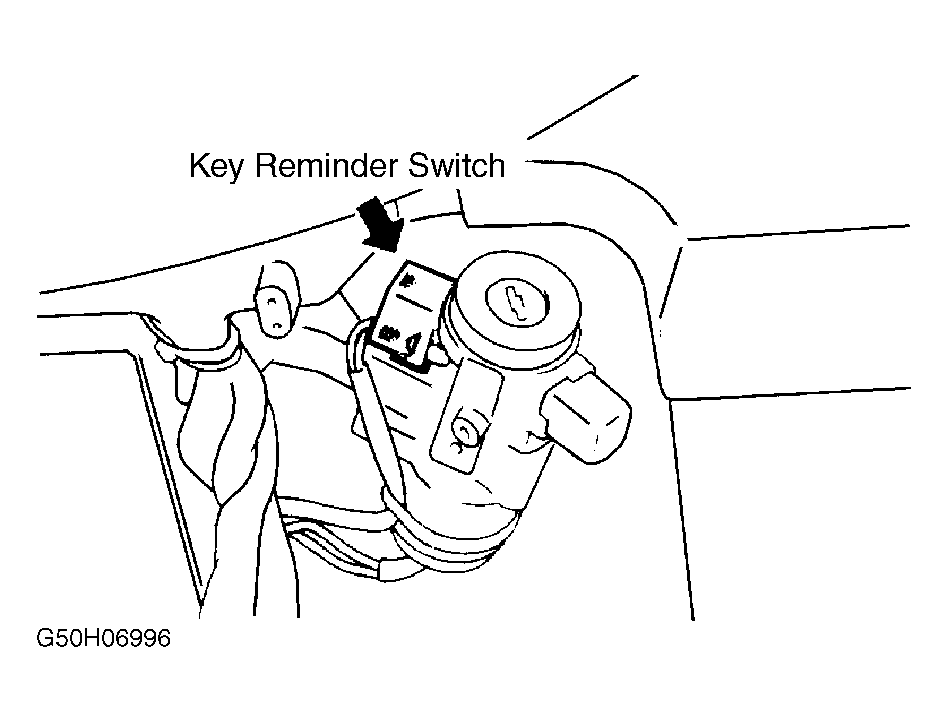

Fig 9: Key Reminder Switch (Symbol I)

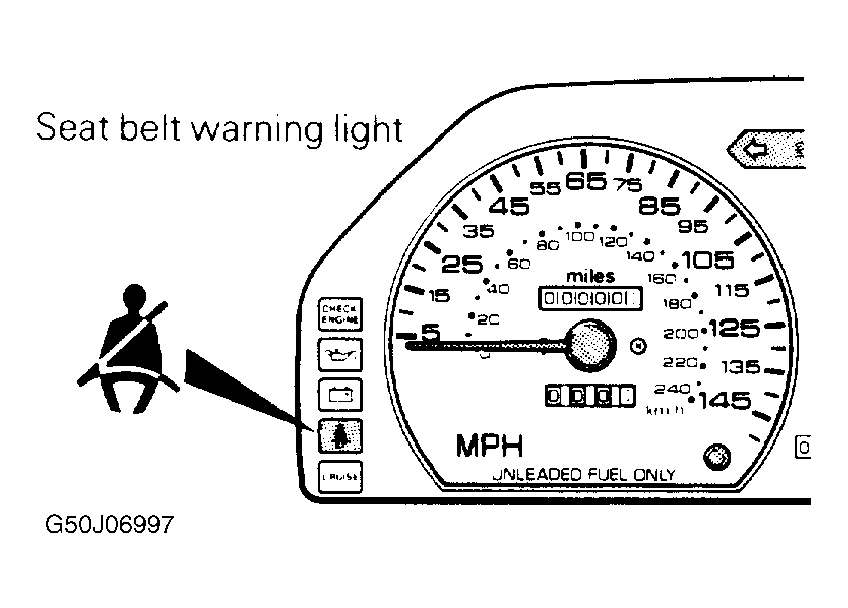

Fig 10: Seat Belt Warning Light (Symbol J)

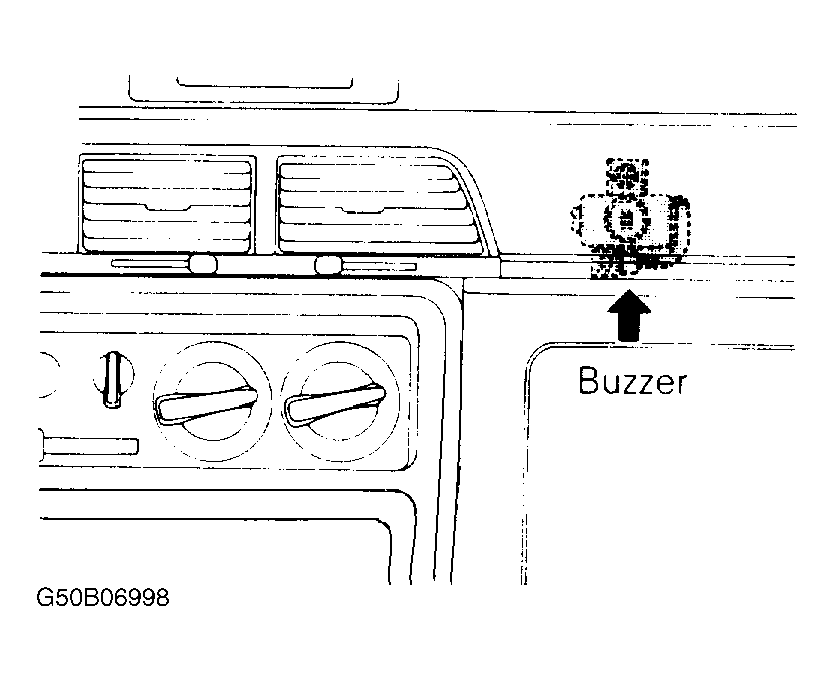

Fig 11: Buzzer (Symbol K)

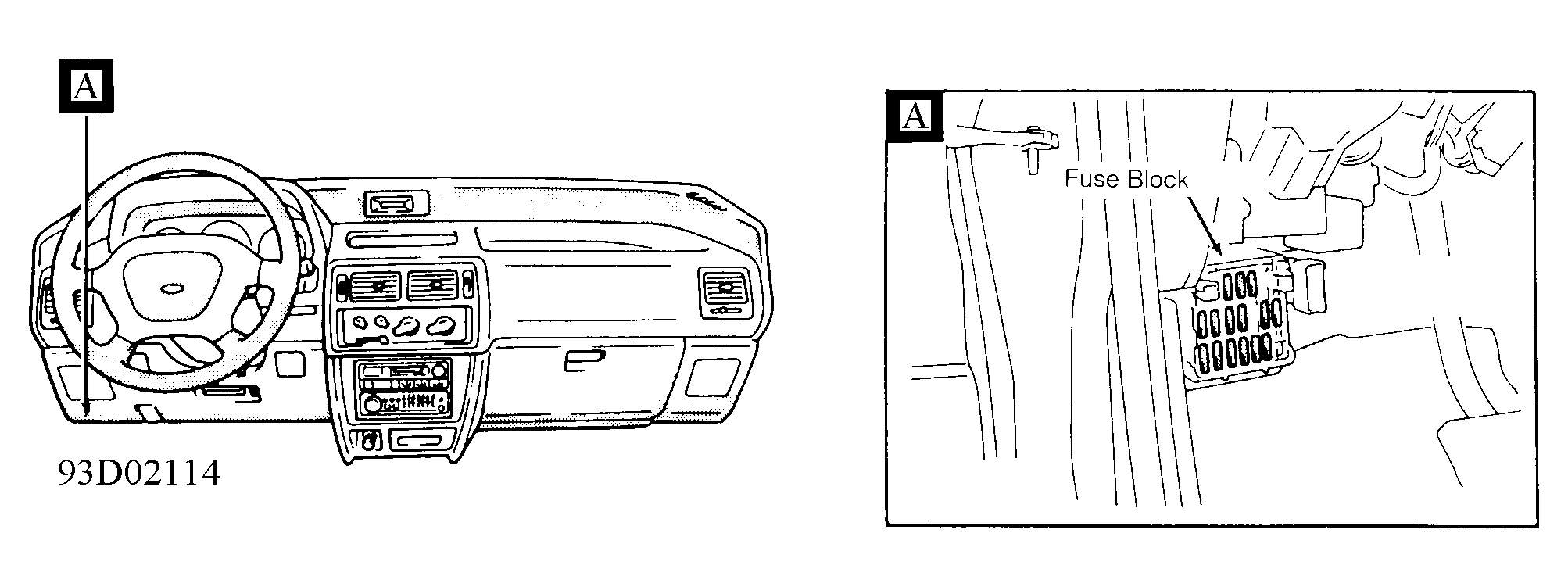

Fig 12: Locating Passenger Compartment Junction Block (Fuse Block)

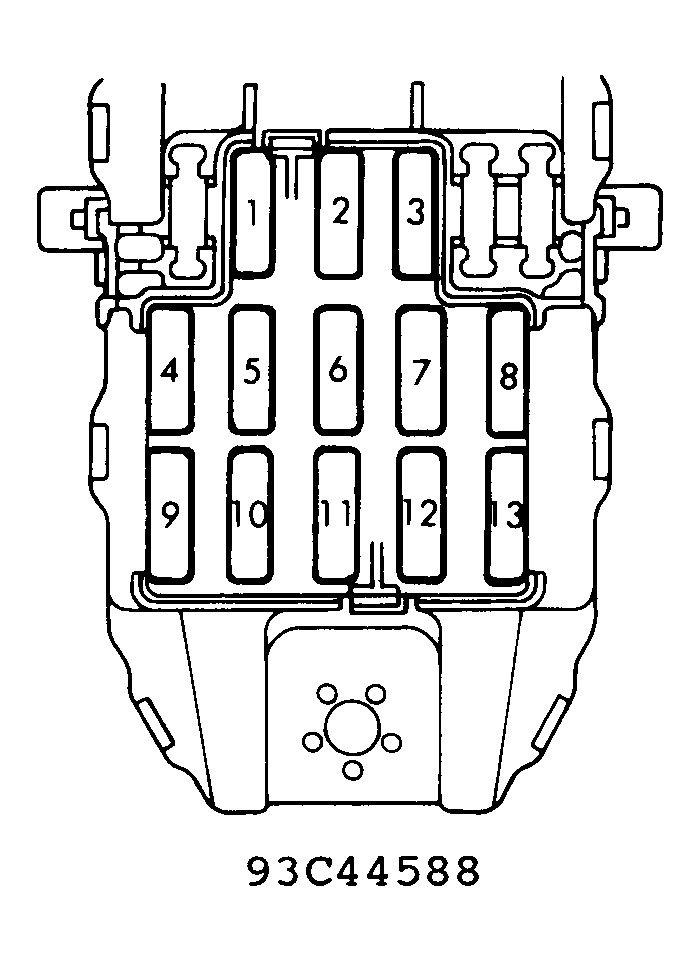

Fig 13: Passenger Compartment Junction Block (Fuse Block) Component Identification

Courtesy of CHRYSLER CORP.
