Service Points Of Installation

To install, reverse removal procedures.

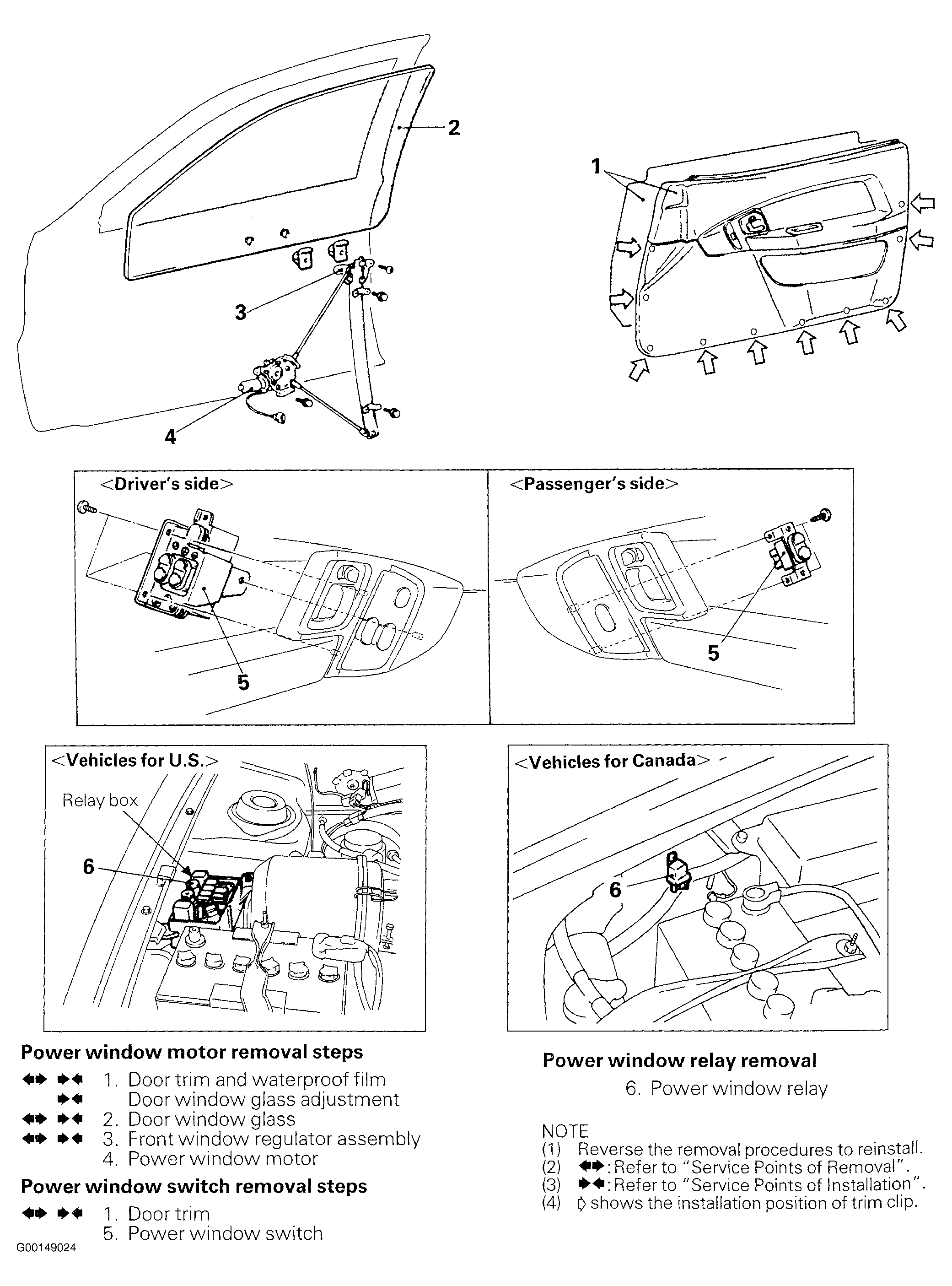

Fig 1: Removing/Installing Power Window Components (Hatchback)
G00149024Courtesy of DAIMLERCHRYSLER CORPORATION
