Window Mechanism

  1. Remove door trim and waterproof film. See DOOR TRIM & WATERPROOF FILM REMOVAL  .
  2. Loosen the installation bolt of the window regulator assembly. See Fig 1 .
  3. Move the upper installation back and forth and adjust the tilted angle of the glass.

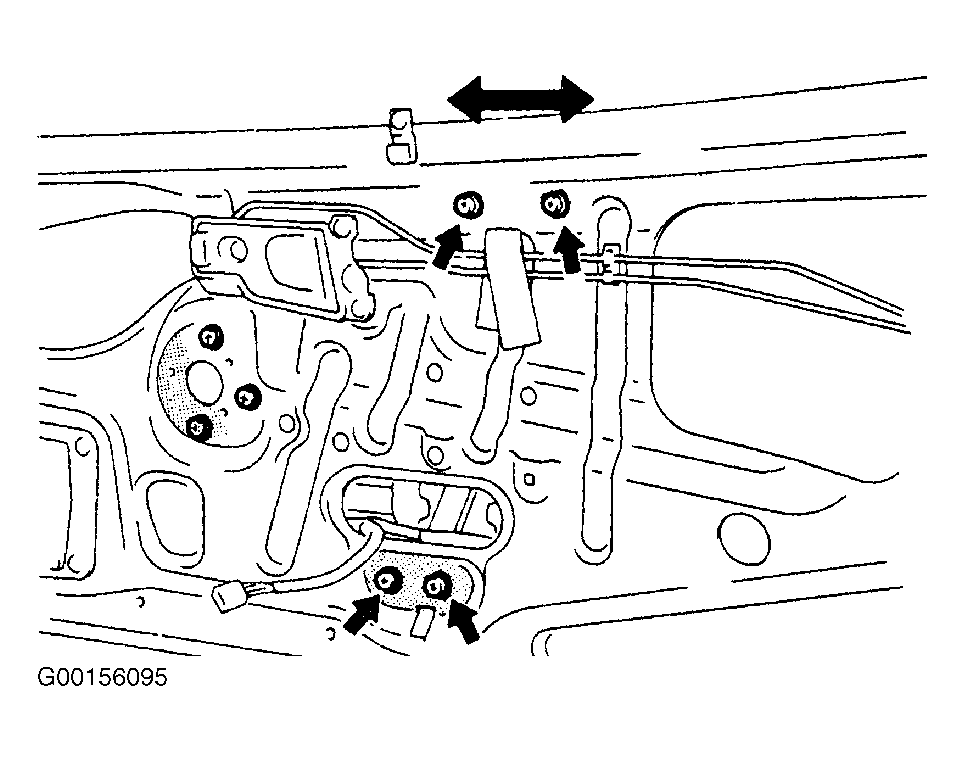

Fig 1: Identifying Door Glass Adjustment Locations
G00156095Courtesy of CHRYSLER CORP.
