Power Window Motor

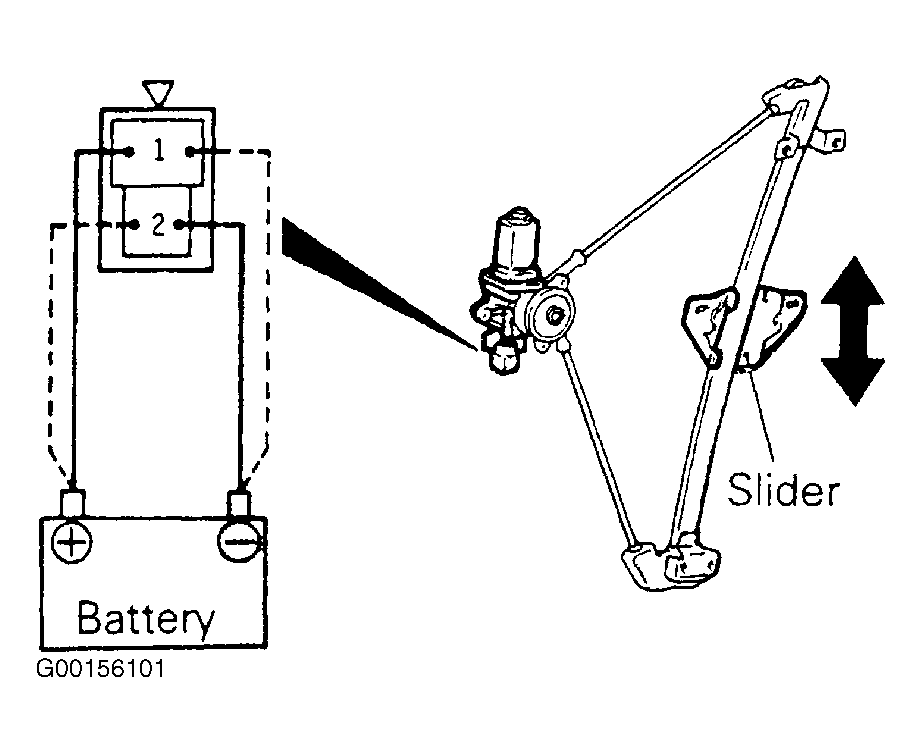

- Connect the motor terminal directly to the battery and check to be sure that the slider moves smoothly. See Fig 1 .
- Also check to be sure that the slider moves in the opposite direction when the battery polarity connections are changed. .
