Wiring Diagrams

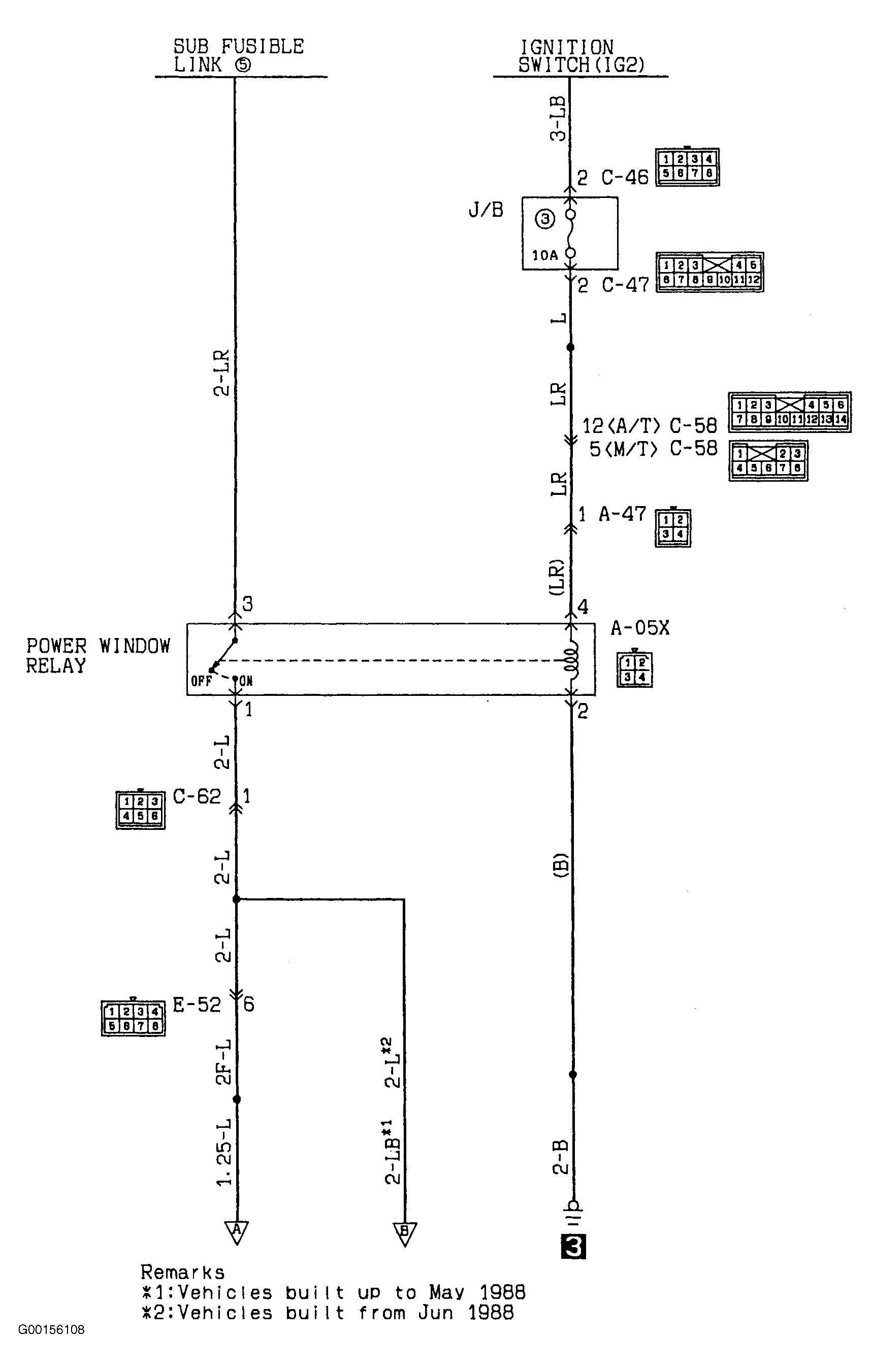

Fig 1: Power Windows Circuit (1 of 2)
Courtesy of CHRYSLER CORP.

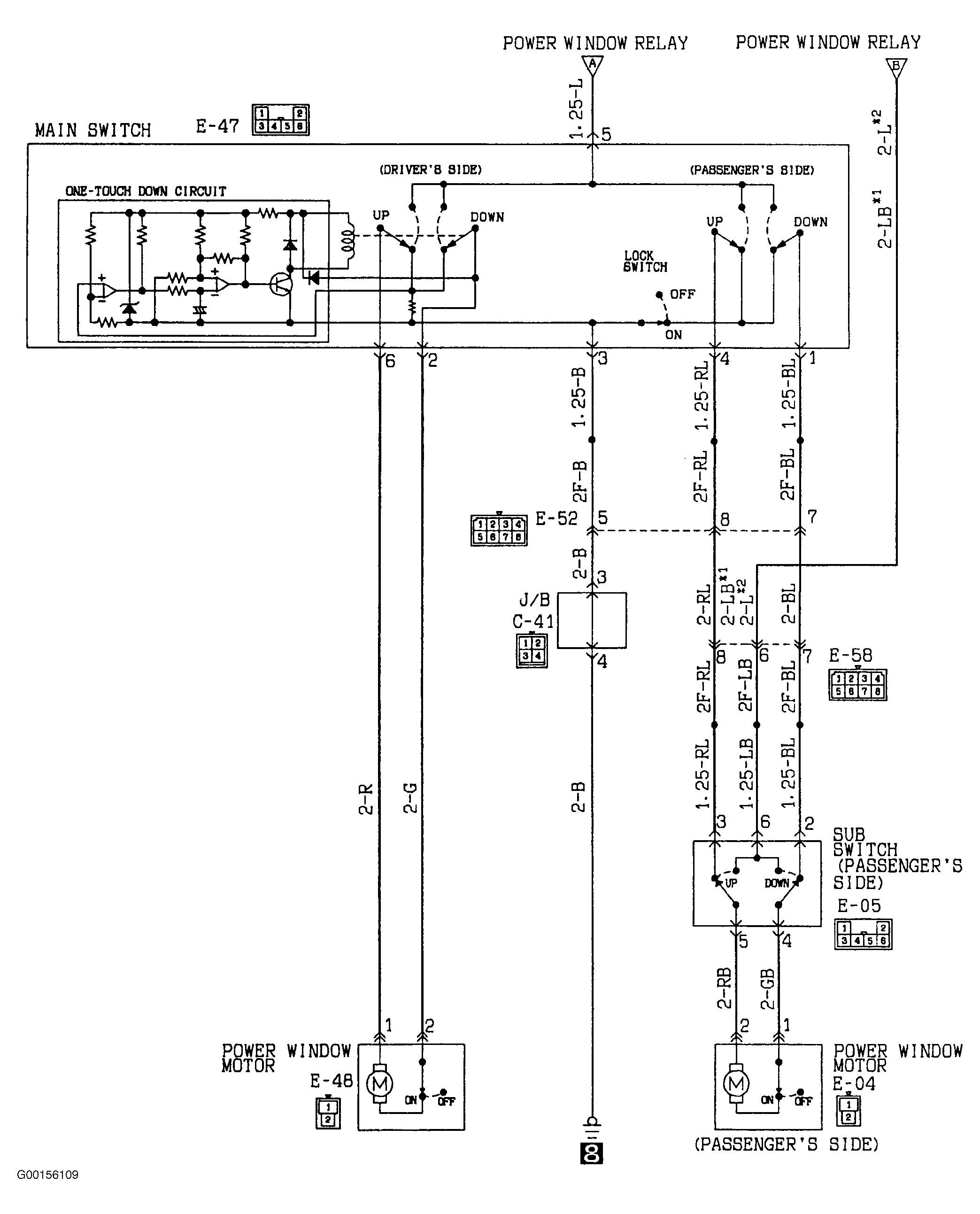

Fig 2: Power Windows Circuit (2 of 2)
Courtesy of CHRYSLER CORP.
