Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Unit | Under dash, near A/C evaporator housing. |
| Automatic Seat Belt Control Unit | On left rear door post, behind panel. |

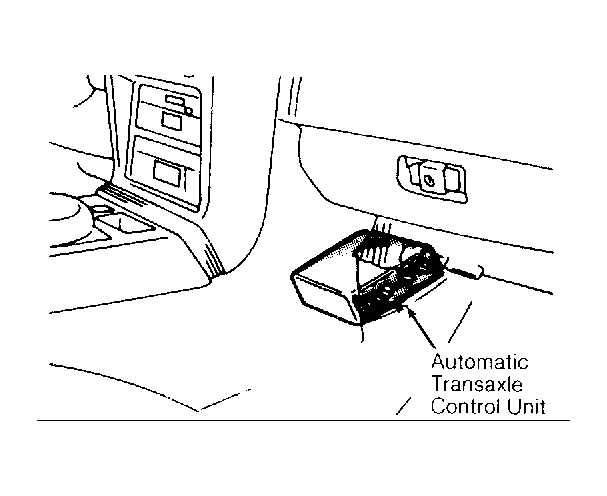

| EATX Auto. Trans. Control Unit | Under right side of dash, next to ECU. See Figure . |
| Cruise Control Unit | Under left side of dash. |
| Door Lock Control Unit | Behind right side kick panel. |
| EATX Control Unit | Under dash, next to ECU. See Figure . |

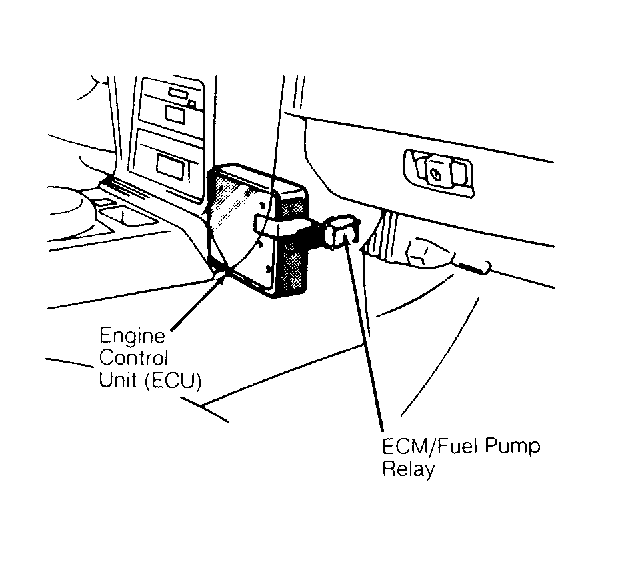

| Engine Control Unit (ECU) | Under dash, behind center console. See Figure . |
| Theft Control Unit | Behind right side kick panel. |
