Fuel Rails: Installation

  1. To install, reverse removal procedure using new gaskets and insulators for injectors. Ensure injector holes are clean.
  2. Lubricate injector and fuel line "O" rings with engine oil prior to installation. Install injector until firmly seated in port. Check for leaks. Torque all bolts to specification. See TORQUE SPECIFICATIONS  in this article.

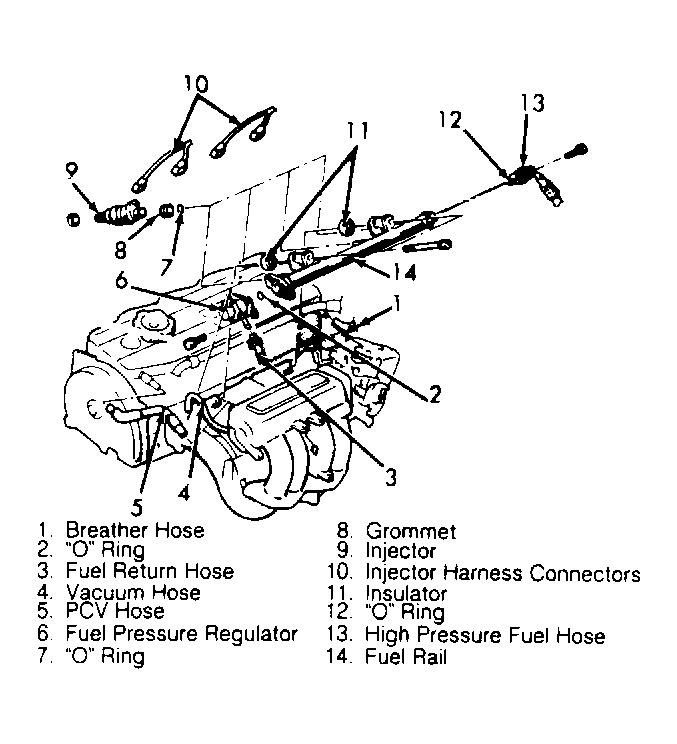

Fig 1: Fuel Rail Assembly (1.8L)
G90E06301Courtesy of CHRYSLER MOTORS.

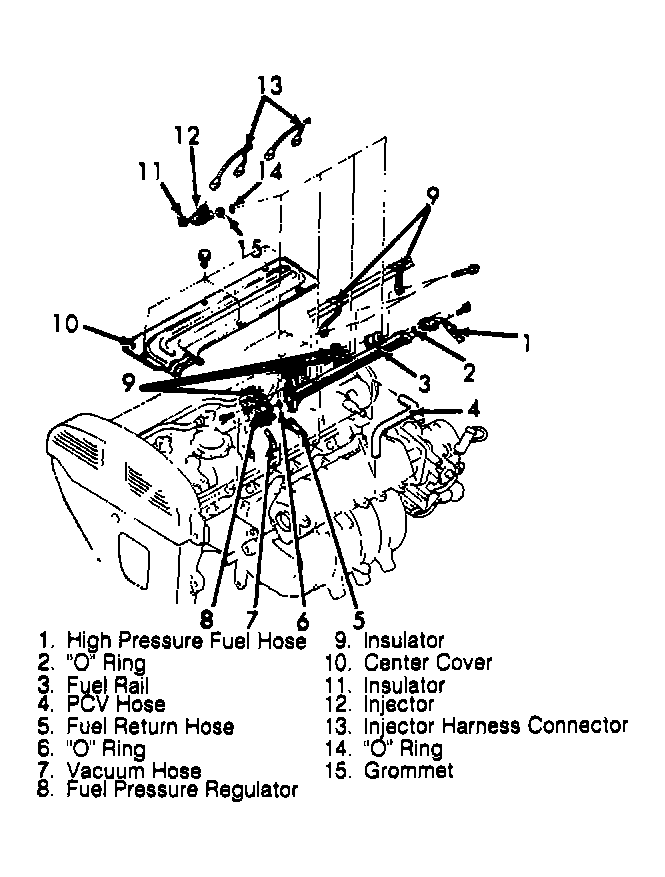

Fig 2: Fuel Rail Assembly (2.0L)
G90G06302Courtesy of CHRYSLER MOTORS.
