Power Transistor (2.0L)

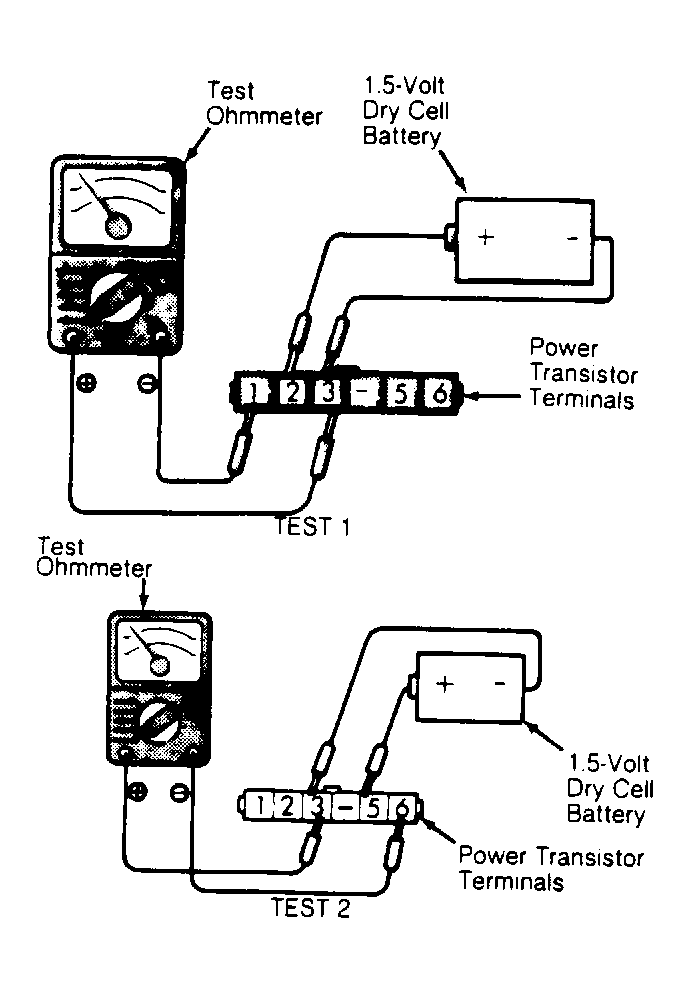

- Using an ohmmeter, connect ohmmeter leads betwen power transistor terminals No. 1 and 3. Using a 1.5-volt dry cell battery, connect positive battery lead to power transistor terminal No. 2 and negative lead to terminal No. 3. Perform TEST 1. See Fig 1
.
- When dry cell battery is connected, ohmmeter should read continuity and when disconnected no continuity.
- Connect ohmmeter between power transistor terminals No. 6 and 3. Using a 1.5-volt dry cell battery, connect positive battery lead to power transistor terminal No. 5 and negative lead to terminal No. 3. Perform TEST 2. See Fig 1
. When dry cell battery is connected, ohmmeter should read continuity and when disconnected no continuity.
- Replace power transistor if it does not test as described.
Courtesy of DAIMLERCHRYSLER CORP.
