Dr-1: Fault Code Check

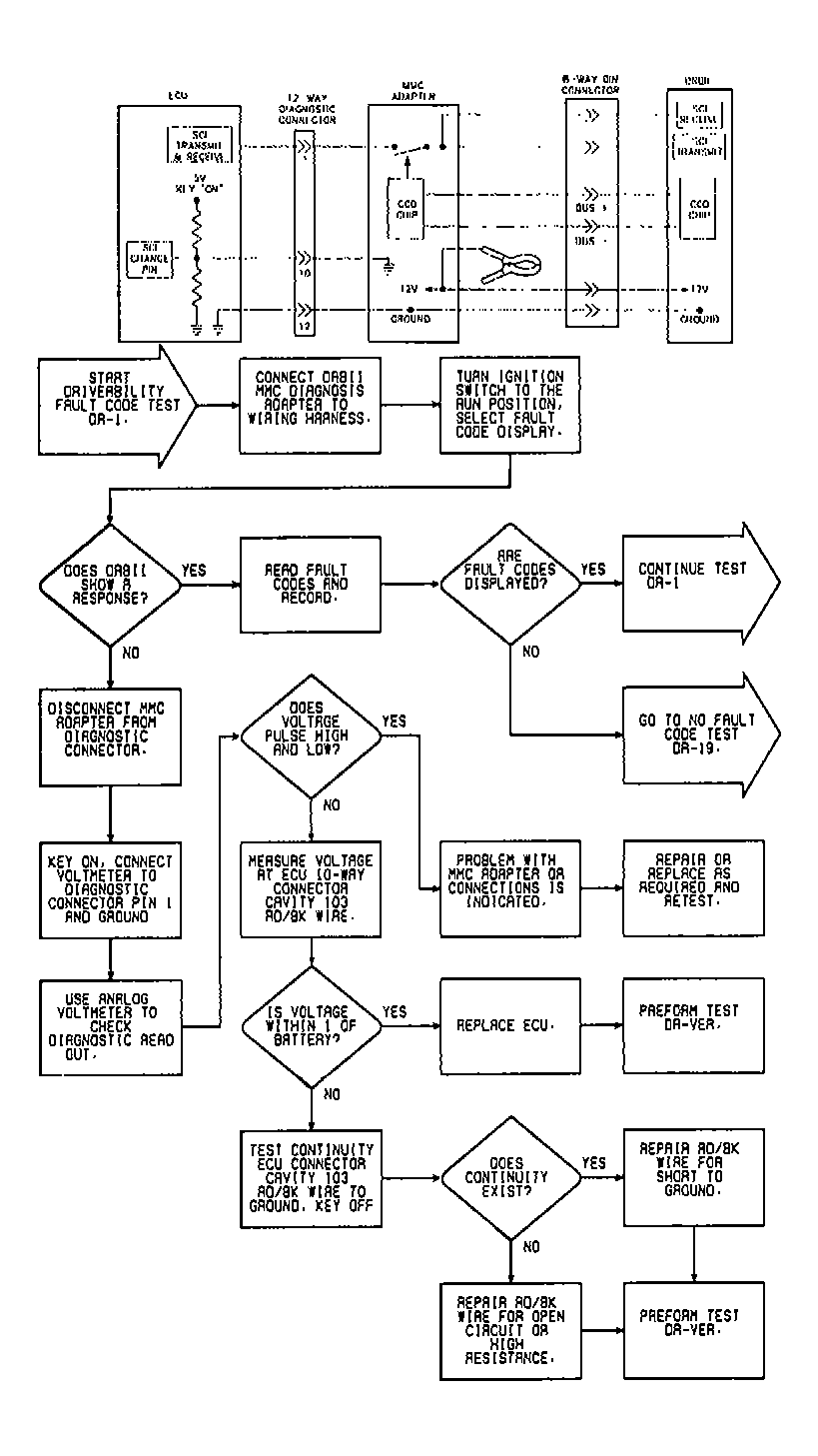

Fig 1: DR-1 Flow Chart & Circuit Diagram (1 of 3)
G90I12664

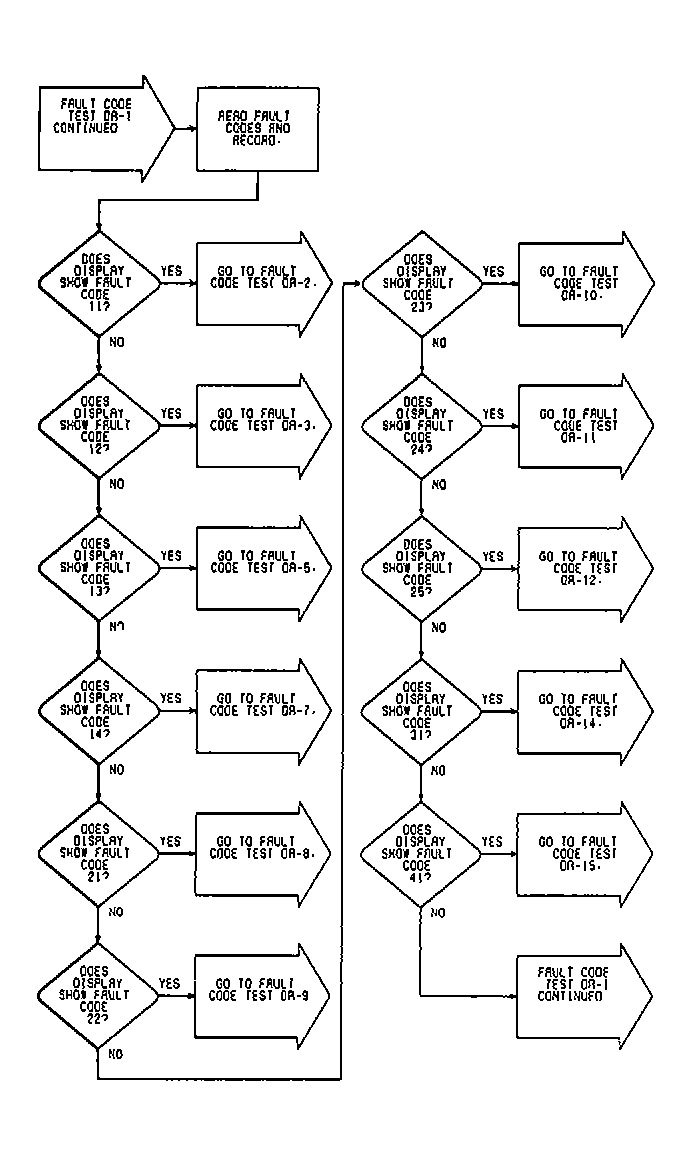

Fig 2: DR-1 Flow Chart & Circuit Diagram (2 of 3)
G90J12665

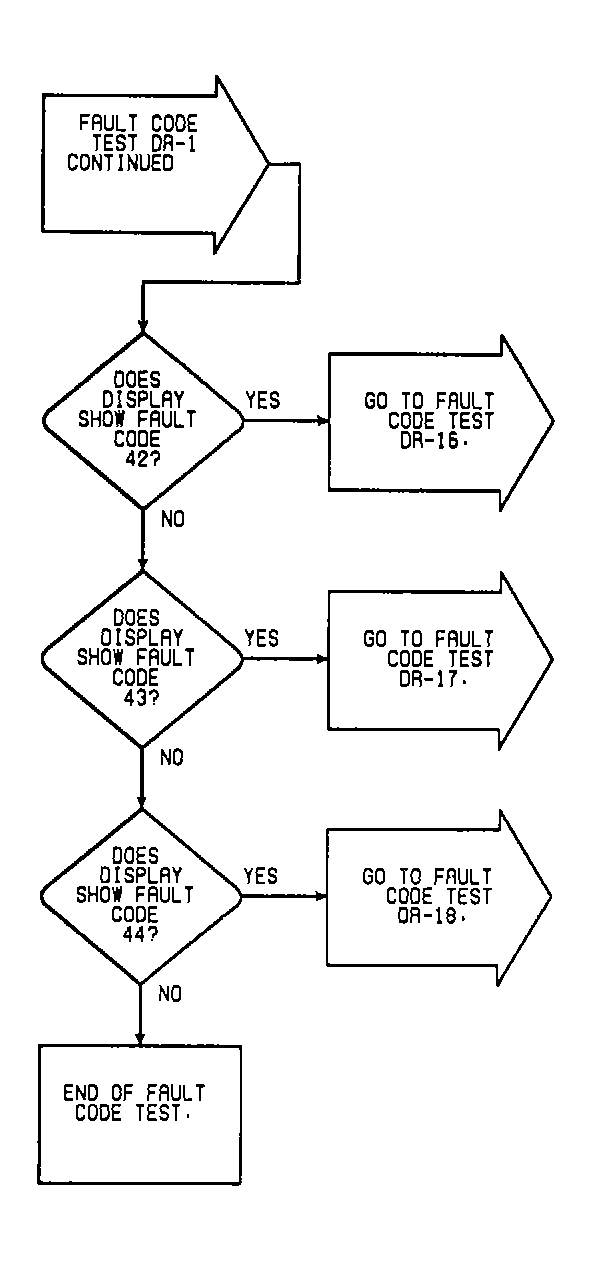

Fig 3: DR-1 Flow Chart & Circuit Diagram (3 of 3)
G90A12666
