Dr-17: Testing EGR Temperature Sensor Circuit

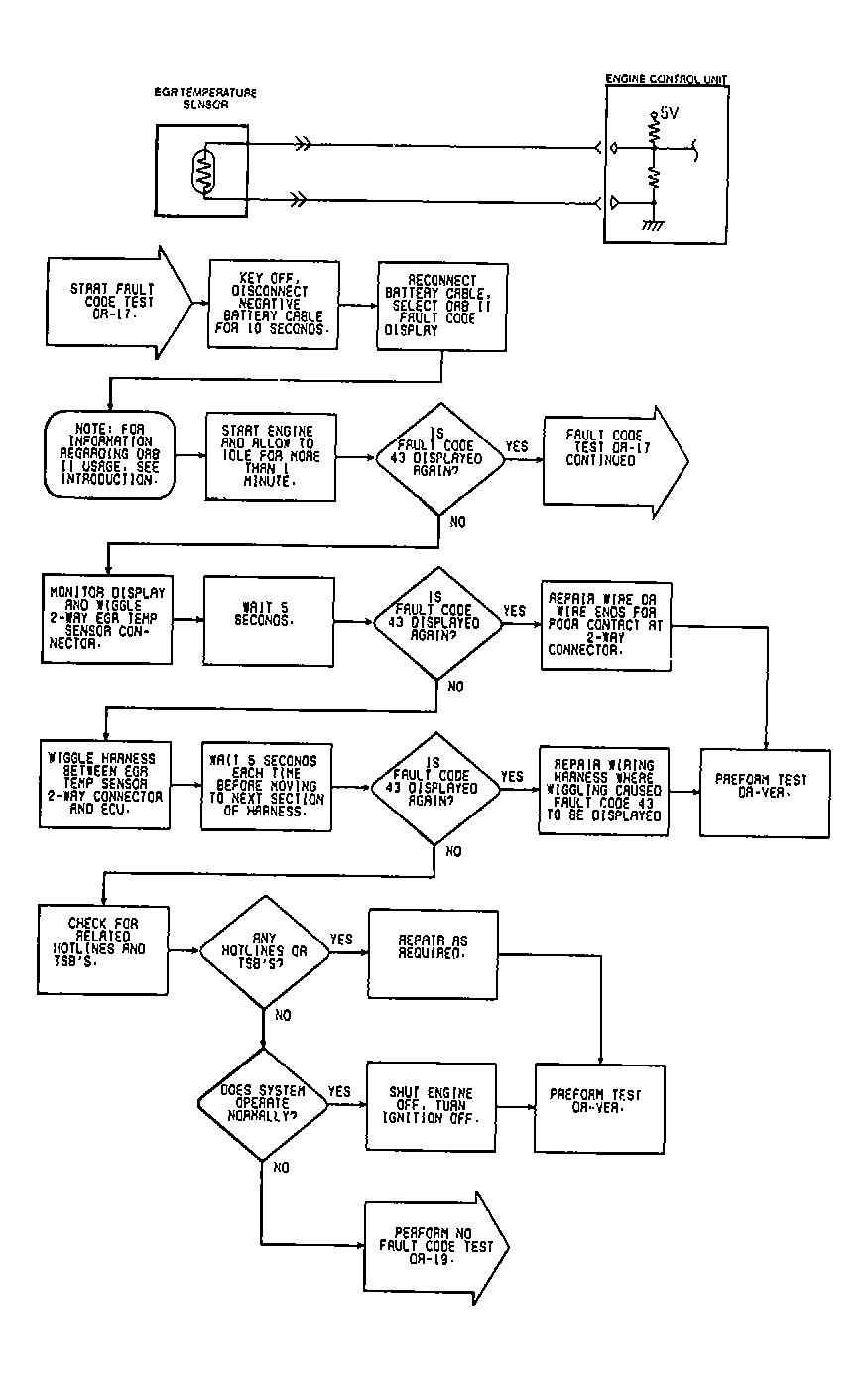

Fig 1: DR-17 Flow Chart & Circuit Diagram (1 of 2)
G90J12699

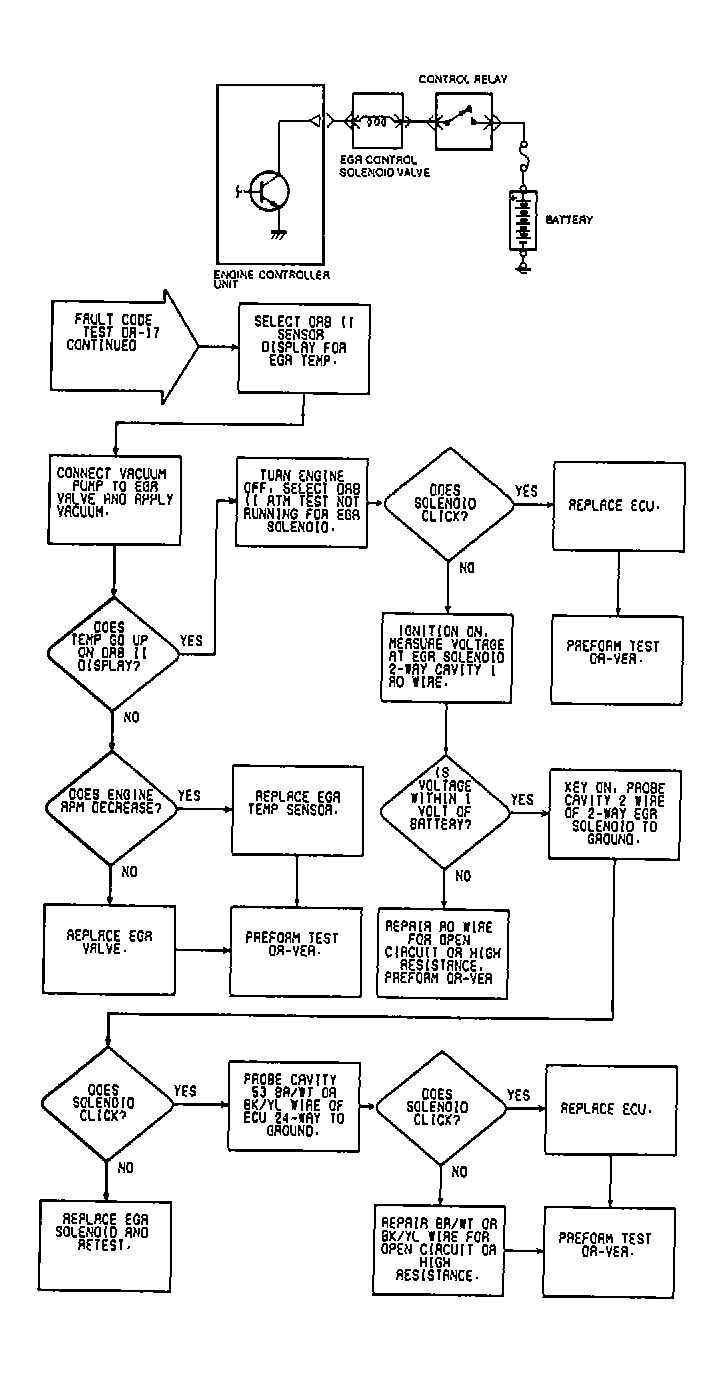

Fig 2: DR-17 Flow Chart & Circuit Diagram (2 of 2)
G90C12700
