Dr-11A: Testing Injectors

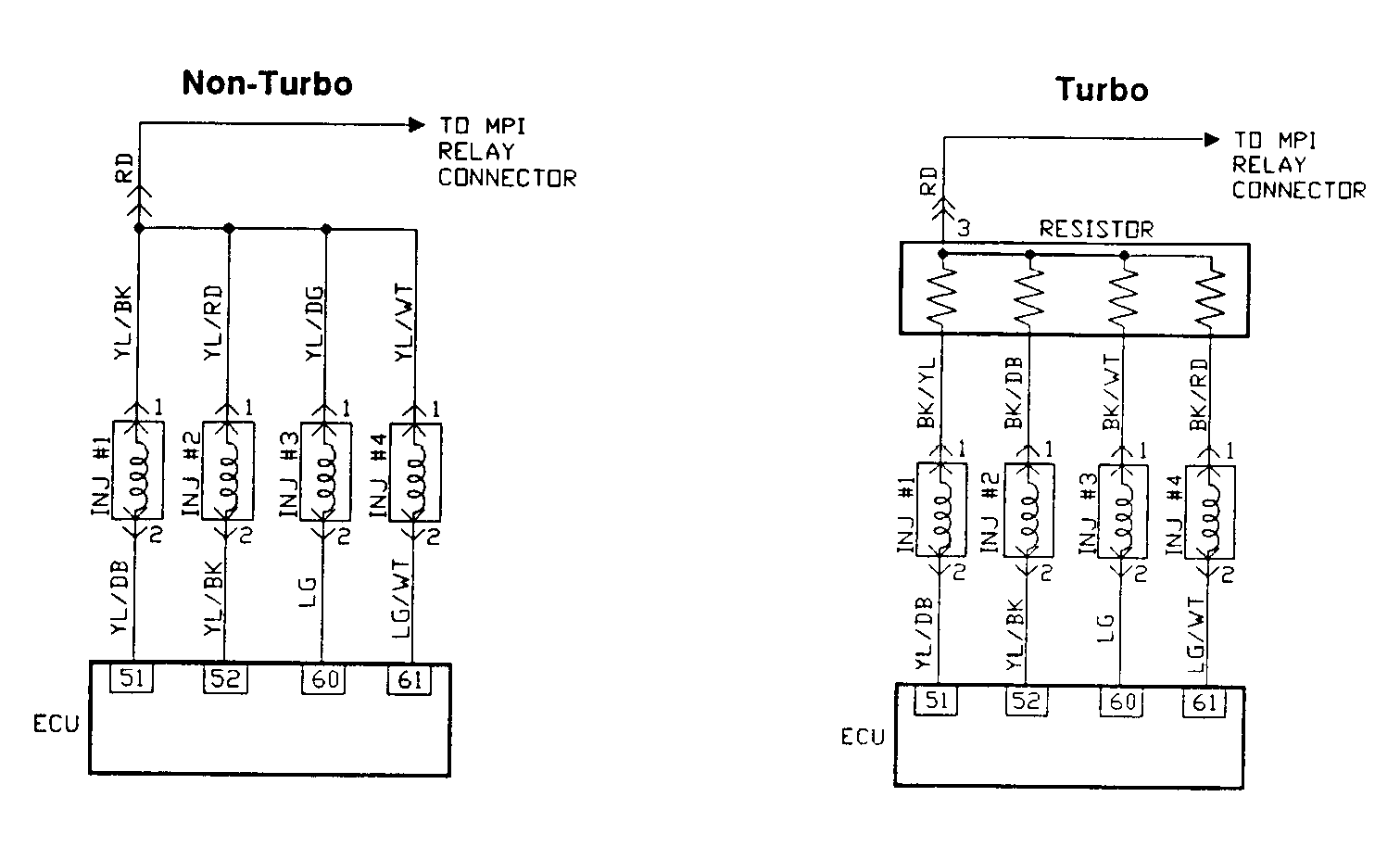

Fig 1: Driveability Test DR-11A: Circuit Diagram

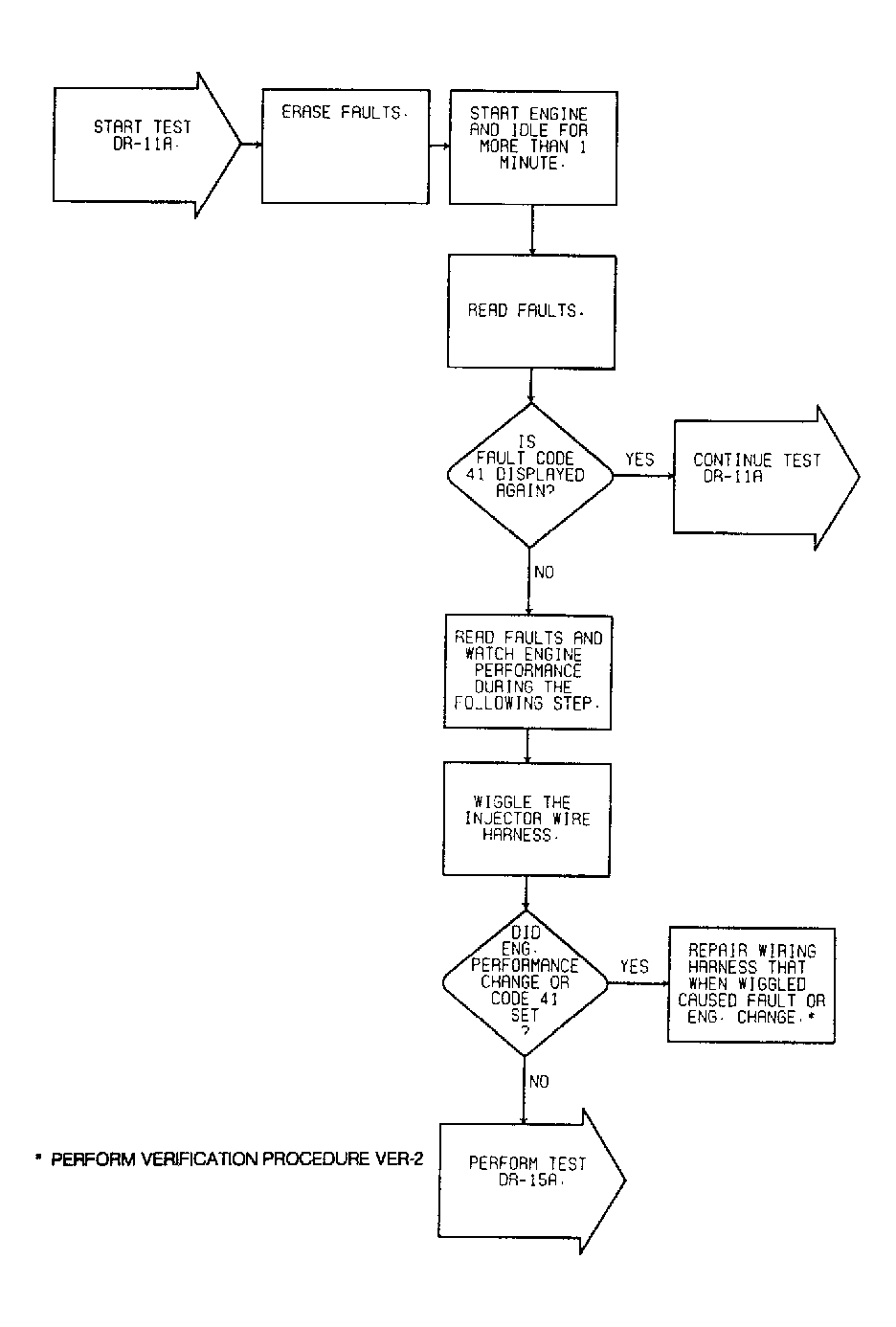

Fig 2: Driveability Test DR-11A: Diagnostic Flow Chart (1 of 5)

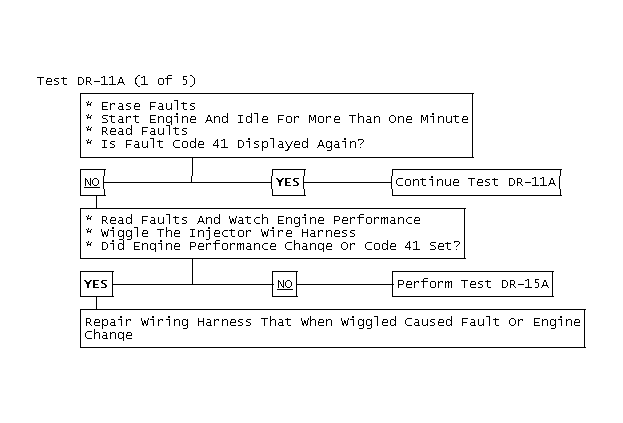

Fig 3: Test DR-11A (1 of 5)

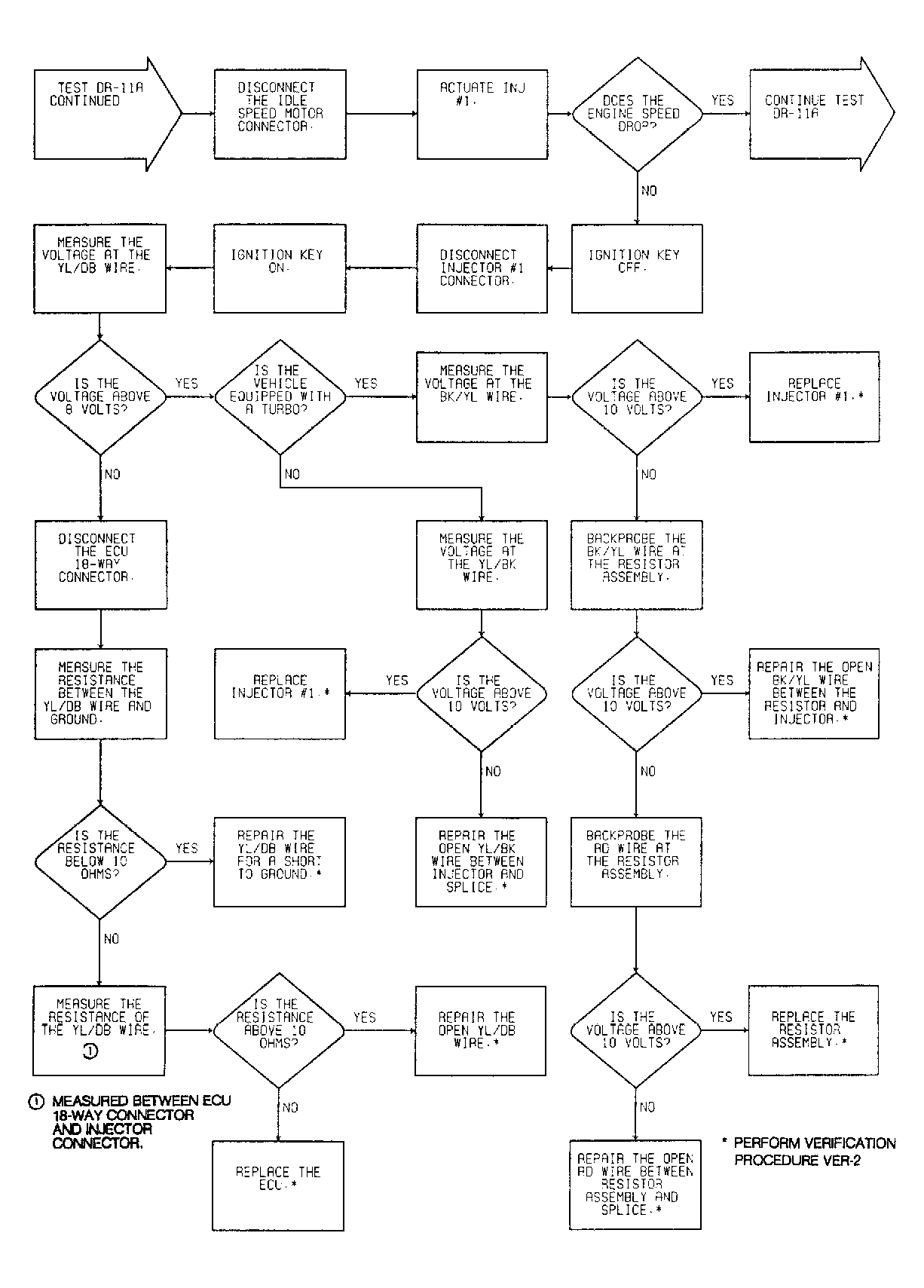

Fig 4: Driveability Test DR-11A: Diagnostic Flow Chart (2 of 5)

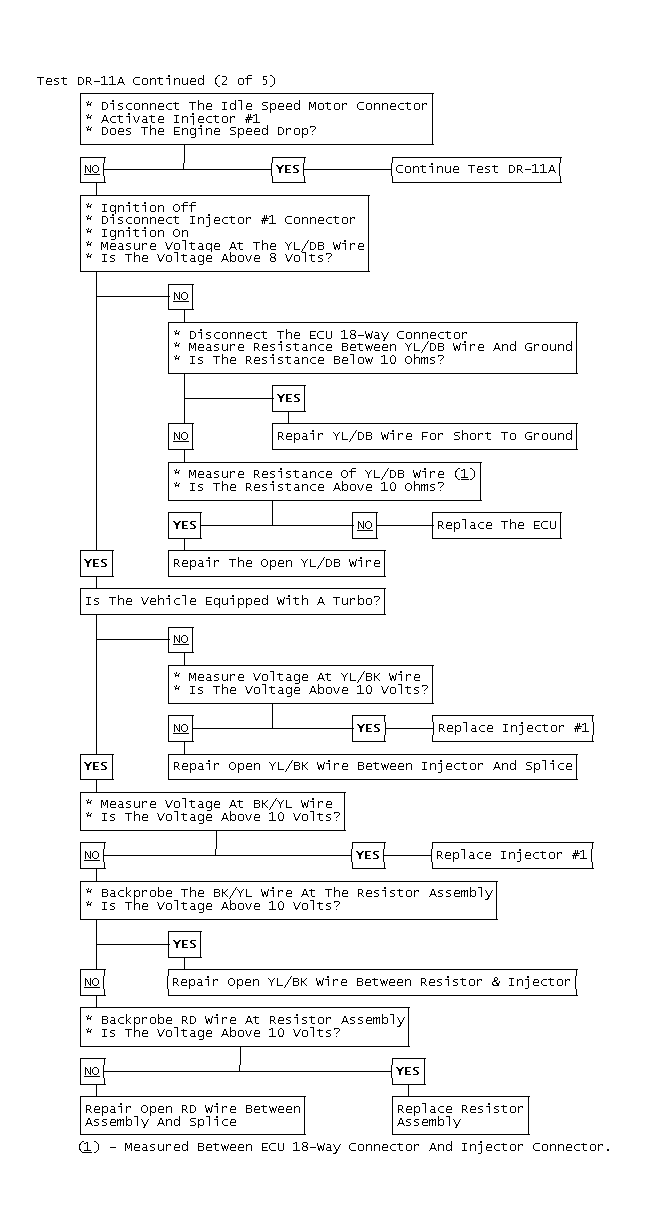

Fig 5: Test DR-11A Continued (2 of 5)

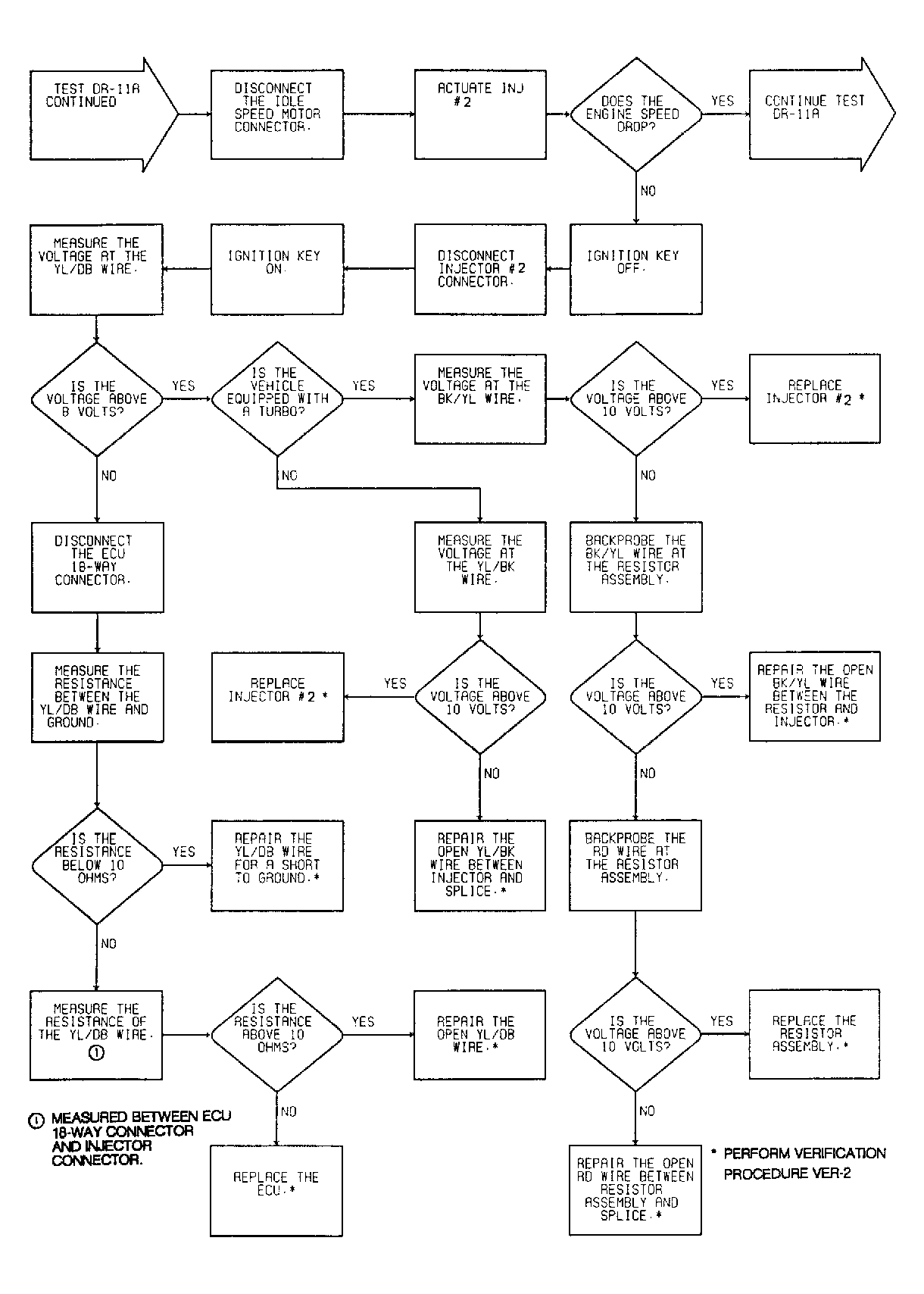

Fig 6: Driveability Test DR-11A: Diagnostic Flow Chart (3 of 5)

Fig 7: Test DR-11A Continued (3 of 5)

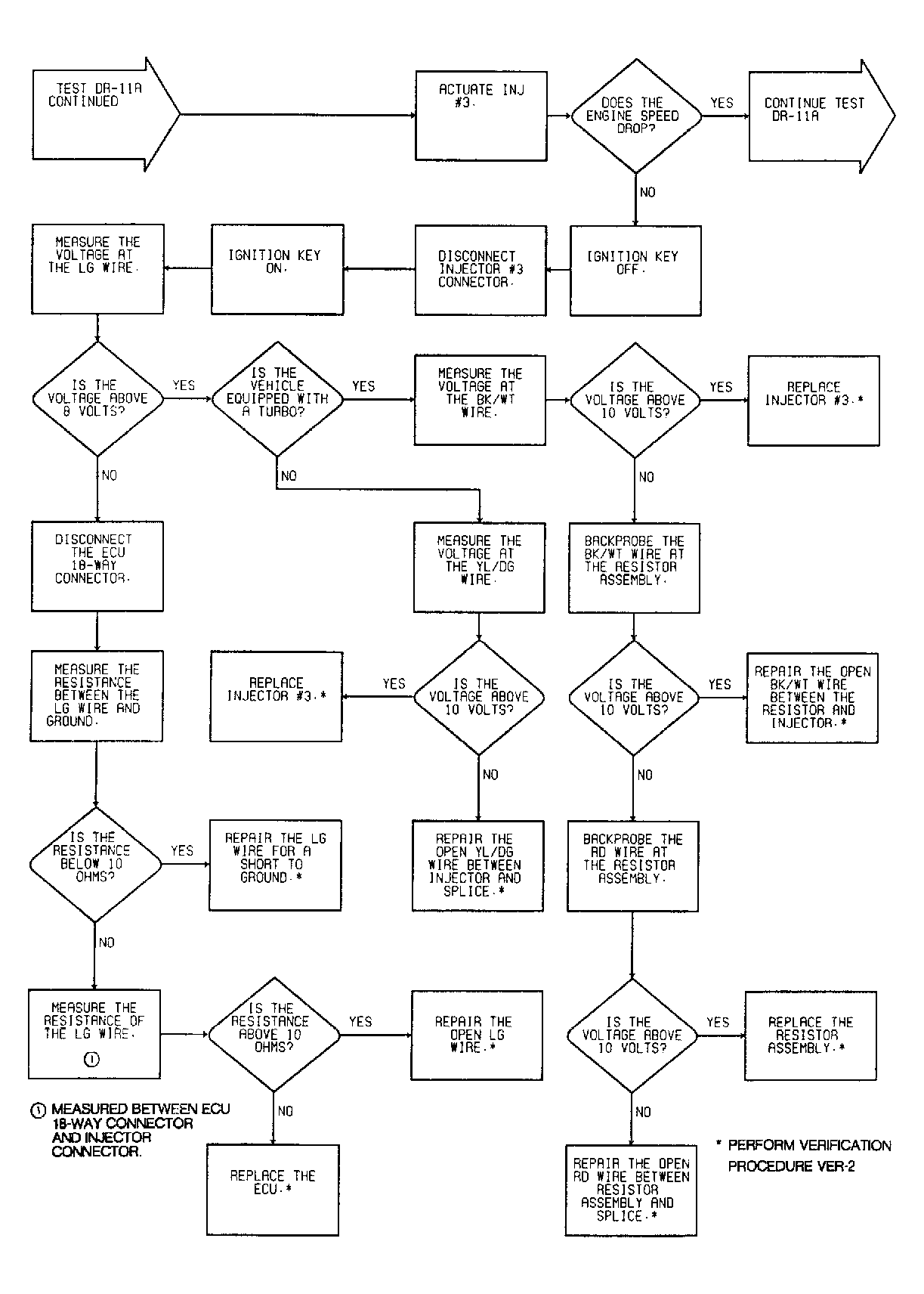

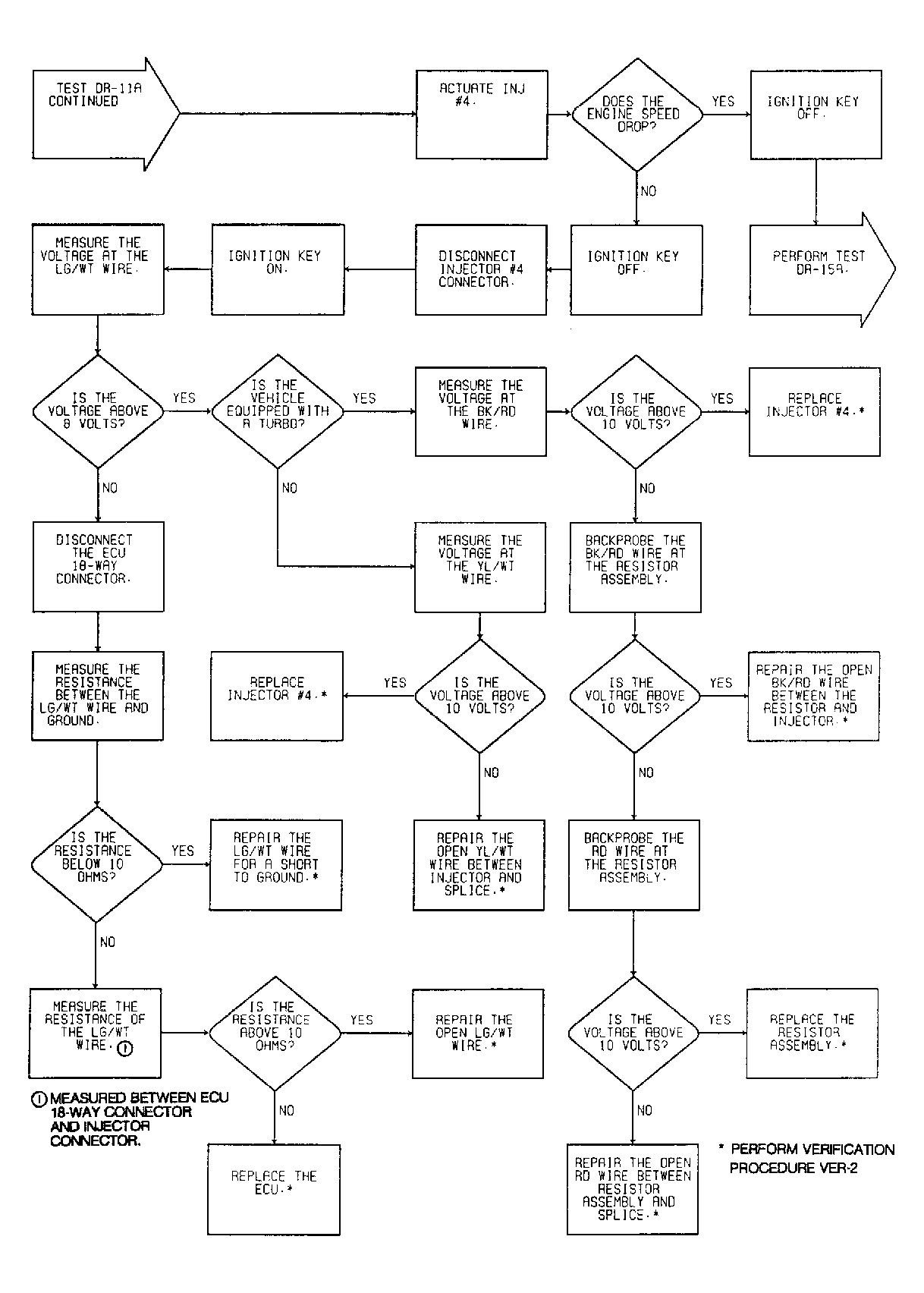

Fig 8: Driveability Test DR-11A: Diagnostic Flow Chart (4 of 5)

Fig 9: Test DR-11A Continued (4 of 5)

Fig 10: Driveability Test DR-11A: Diagnostic Flow Chart (5 of 5)

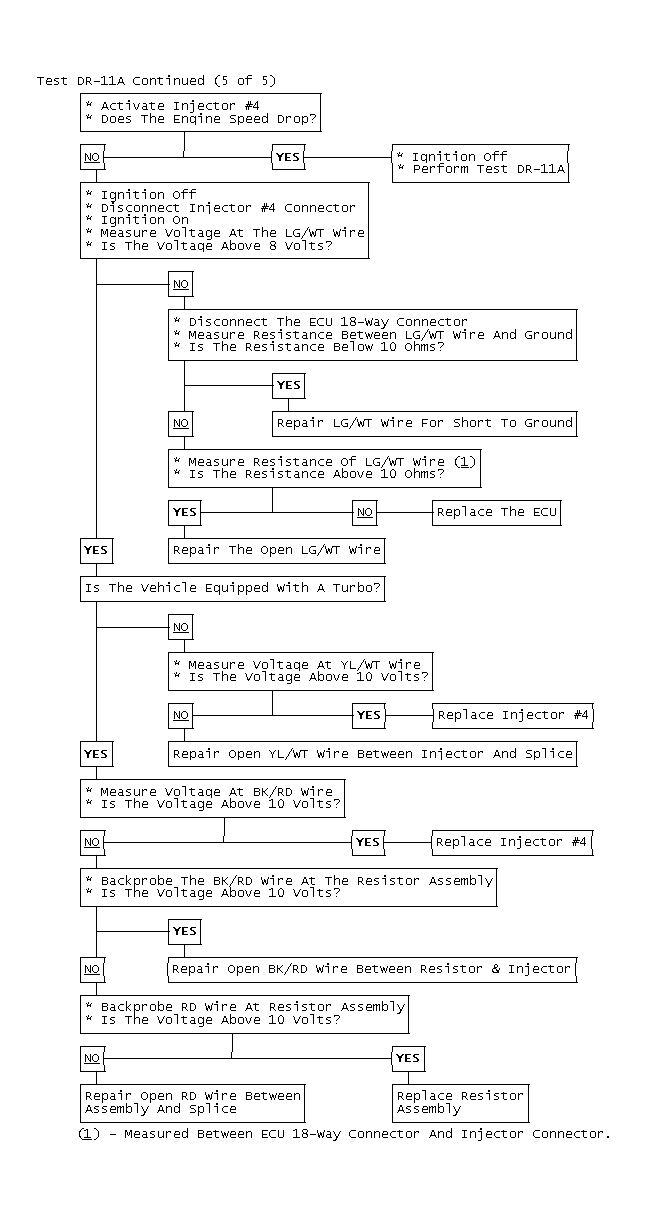

Fig 11: Test DR-11A Continued (5 of 5)
