Dr-20A: Testing EGR System

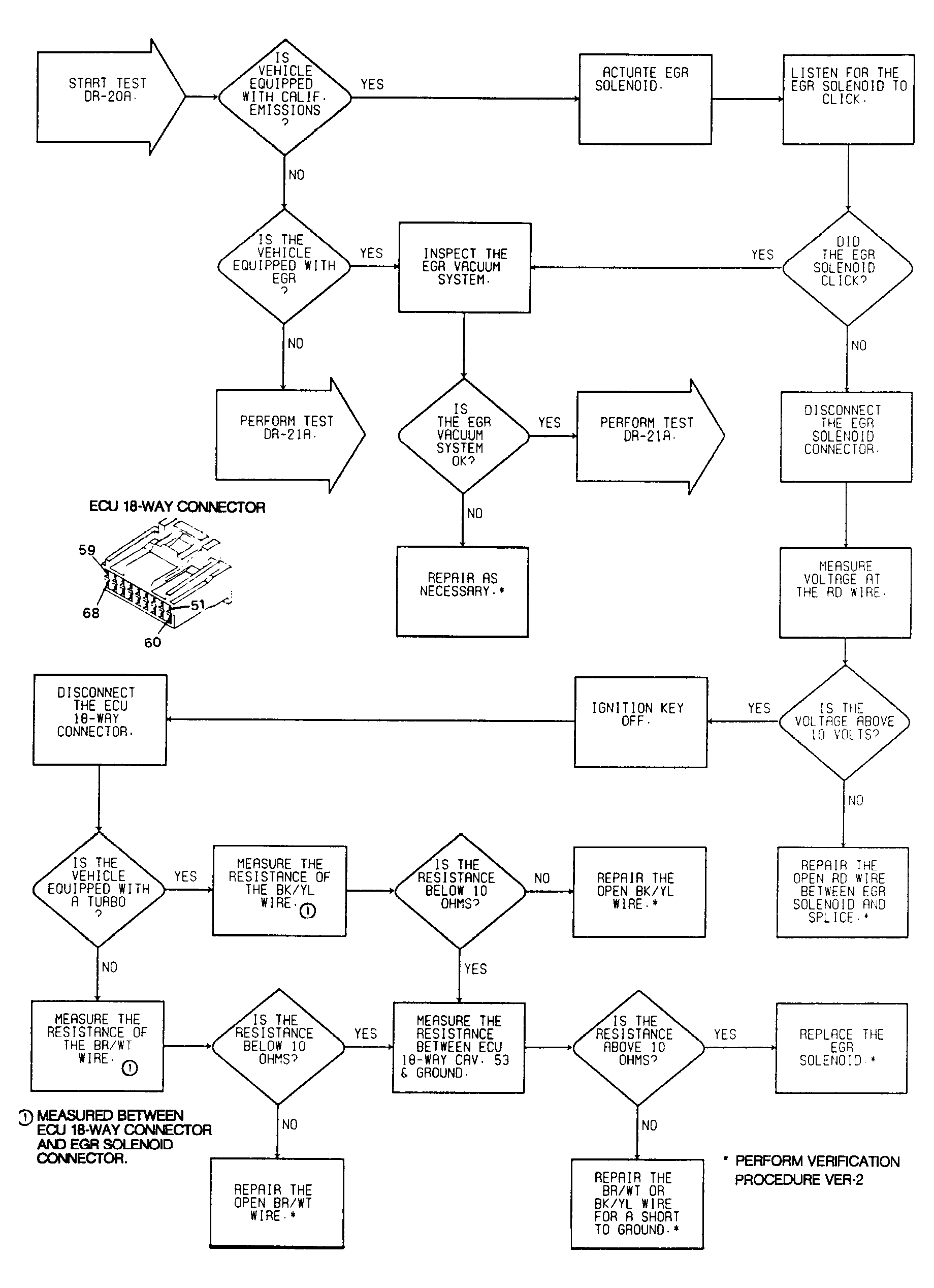

Fig 1: Driveability Test DR-20A: Diagnostic Flow Chart
Fig 2: Test DR-20A
