Dr-22A: Checking DRB-II Communication

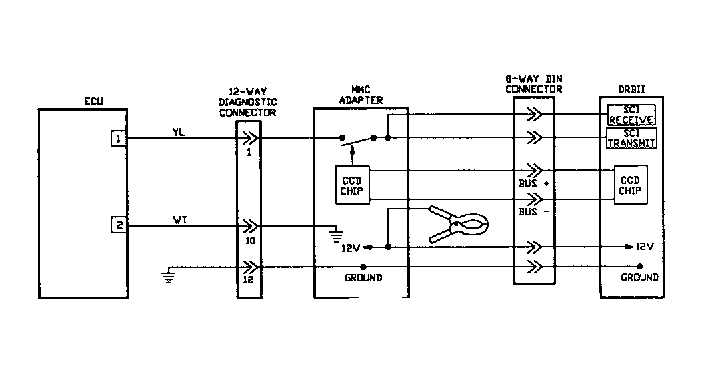

Fig 1: Driveability Test DR-21A: Circuit Diagram

G91B10778

Fig 2: Driveability Test DR-21A: Diagnostic Flow Chart (1 of 2)

G91A11148

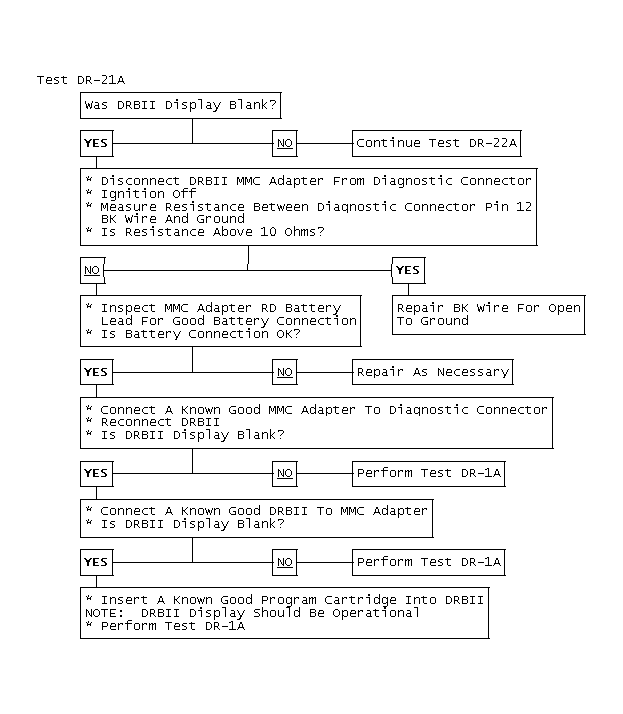

Fig 3: Test DR-21A

GB0044675

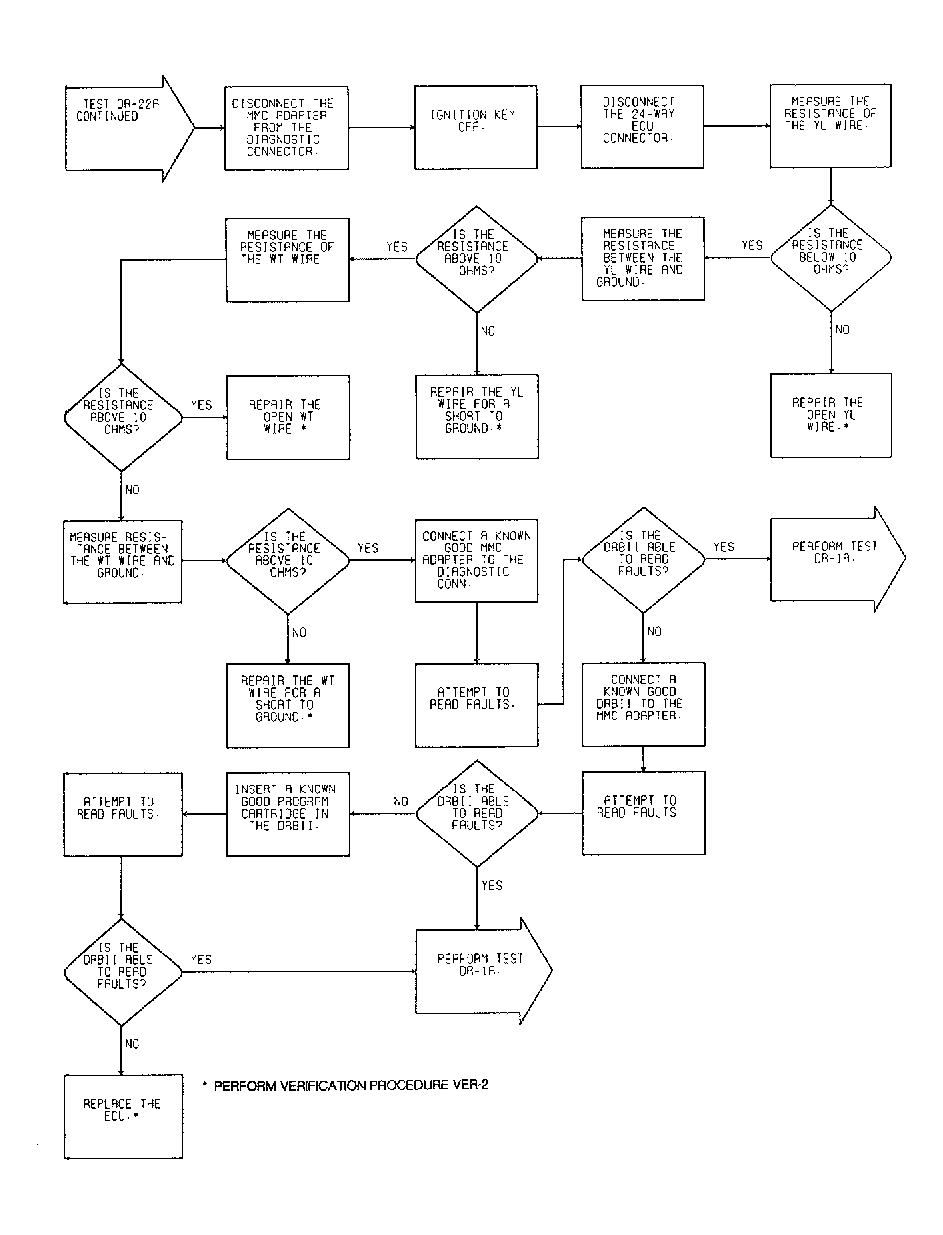

Fig 4: Driveability Test DR-21A: Diagnostic Flow Chart (2 of 2)

G91B11149

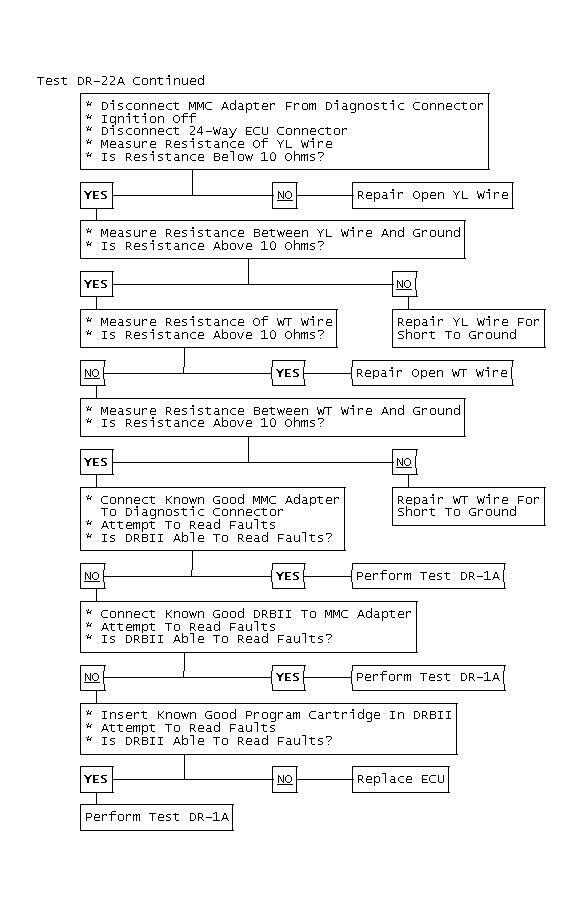

Fig 5: Test DR-22A Continued

GB0044676
