Dr-3A: Testing Airflow Sensor

Fig 1: Driveability Test DR-3A: Circuit Diagram

G91H10766

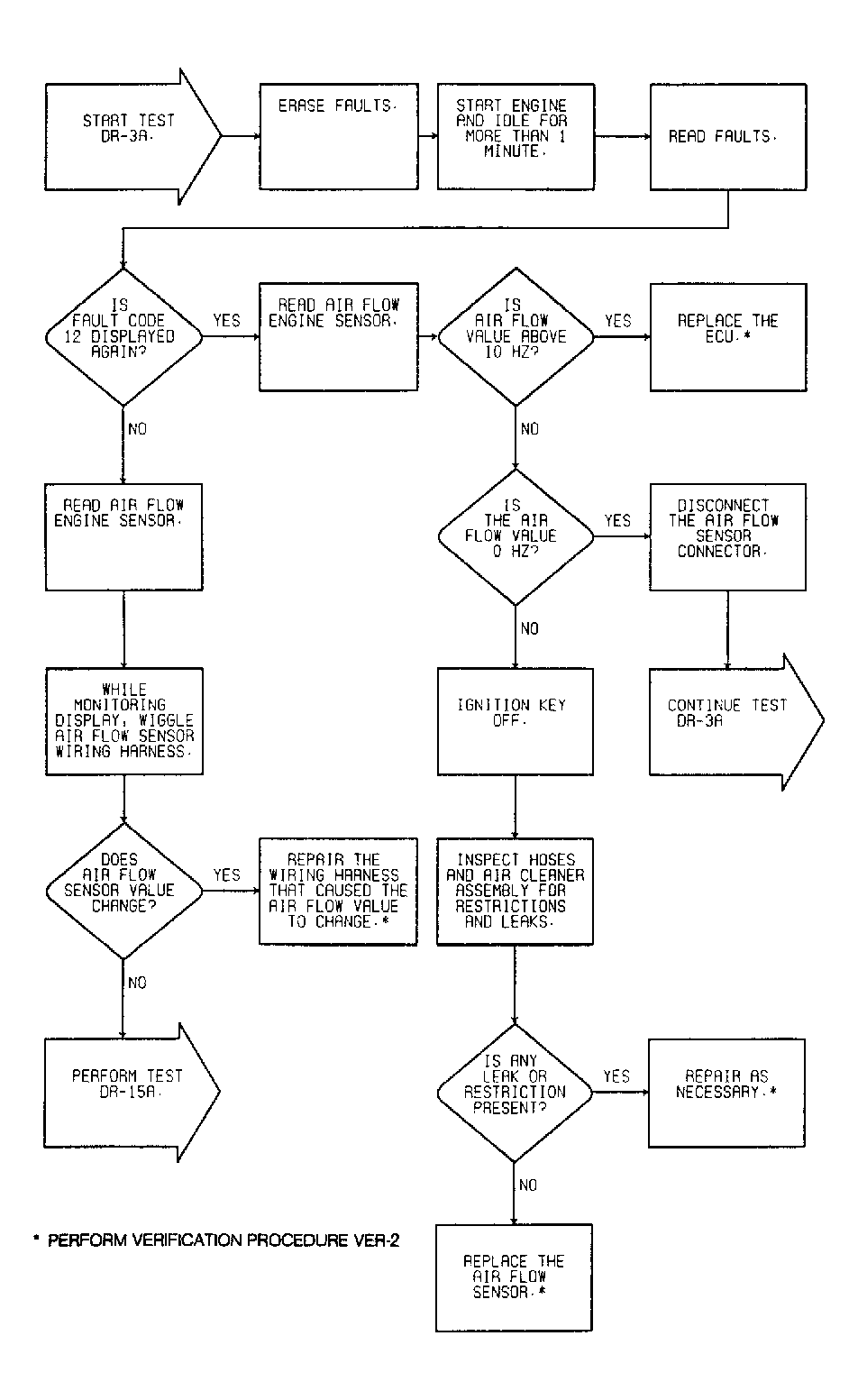

Fig 2: Driveability Test DR-3A: Diagnostic Flow Chart (1 of 2)

G91D11109

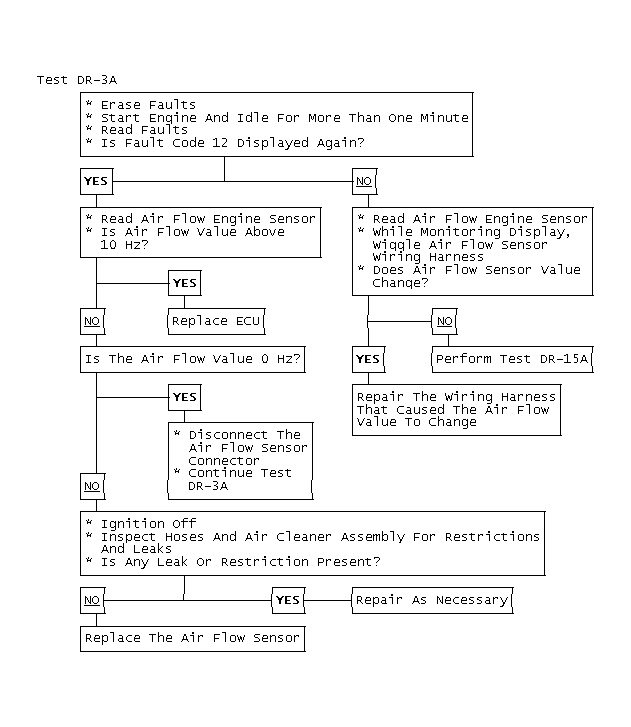

Fig 3: Test DR-3A

GB0044636

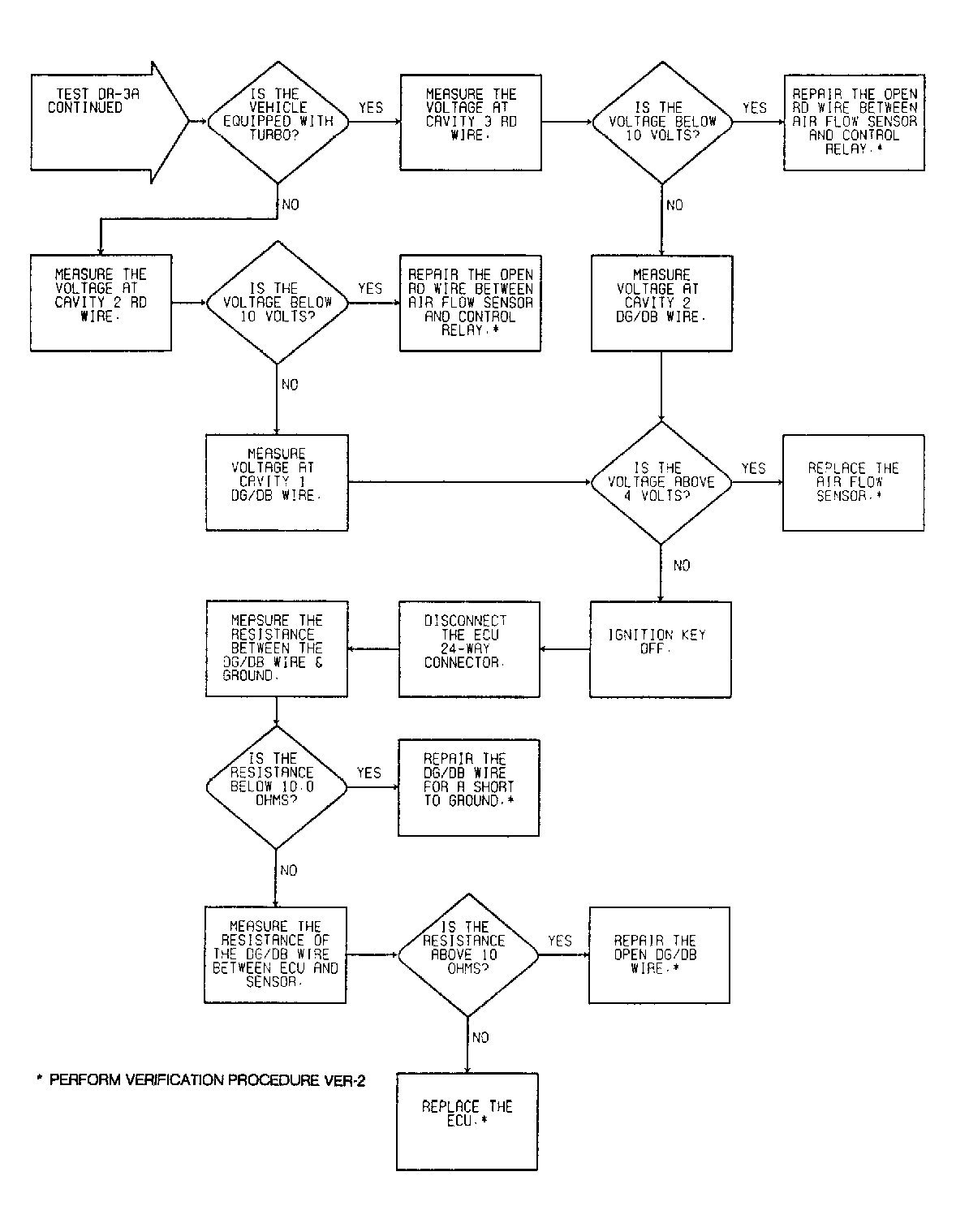

Fig 4: Driveability Test DR-3A: Diagnostic Flow Chart (2 of 2)

G91G11110

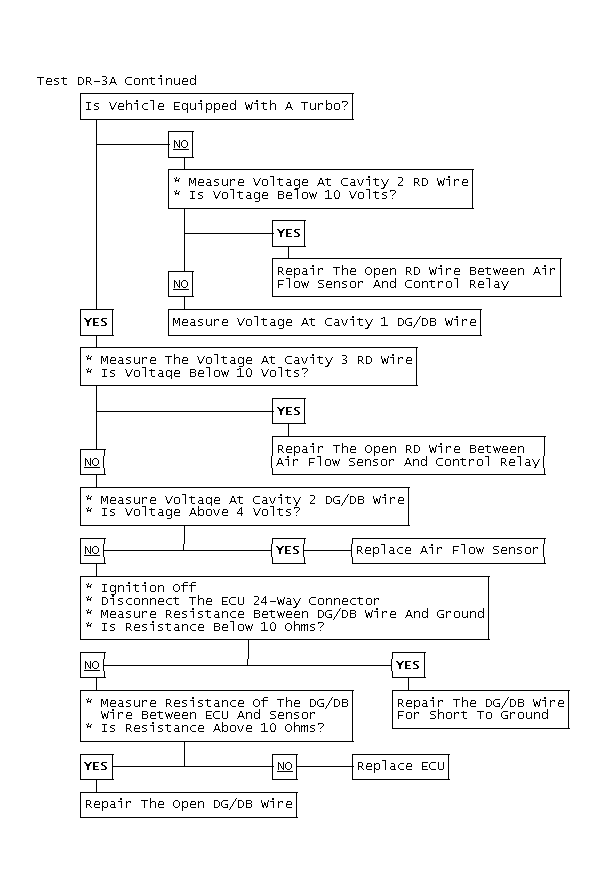

Fig 5: Test DR-3A Continued

GB0044637
