Dr-4A: Testing Intake Air Temperature Sensor

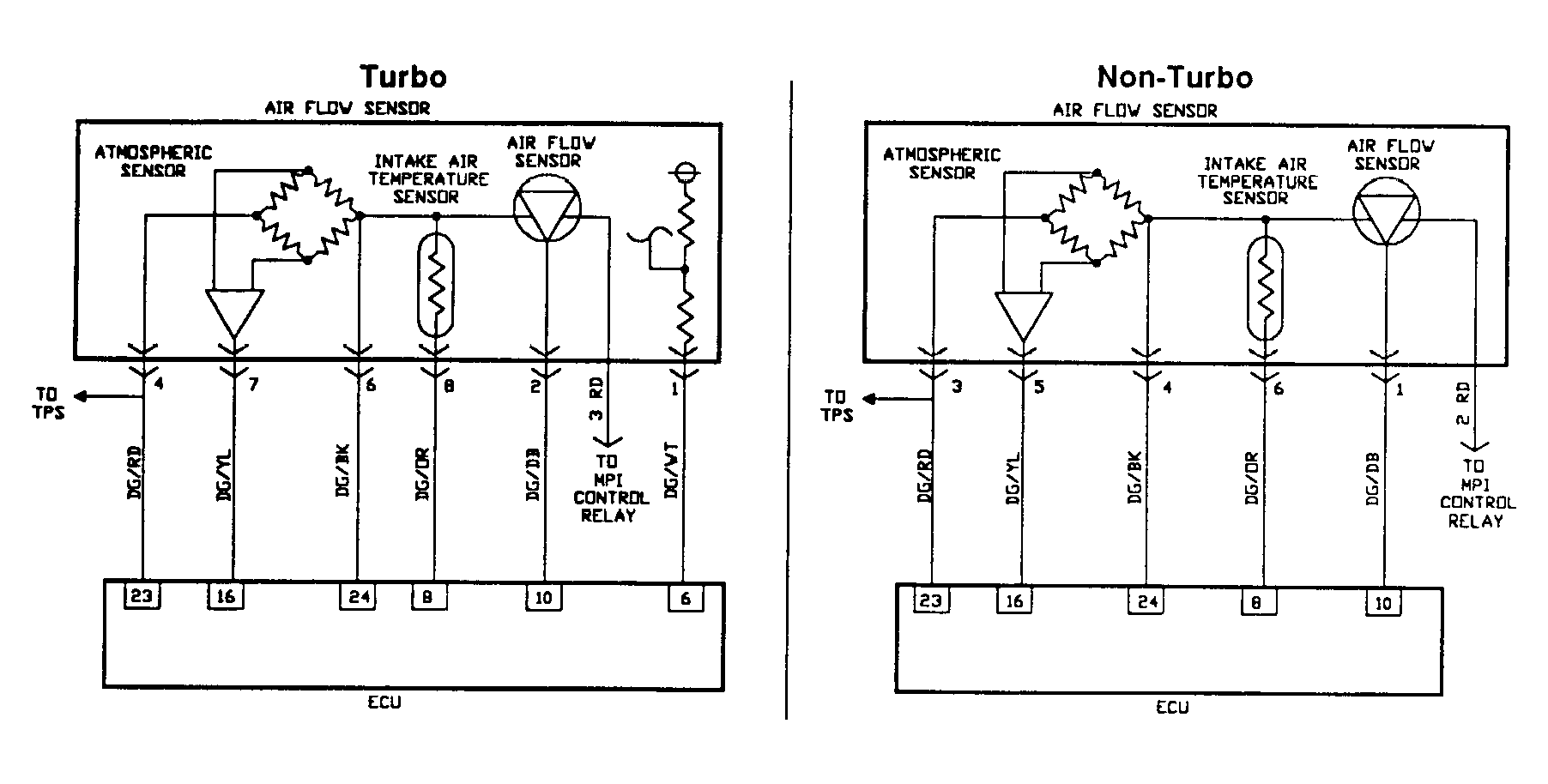

Fig 1: Driveability Test DR-4A: Circuit Diagram

G91H10766

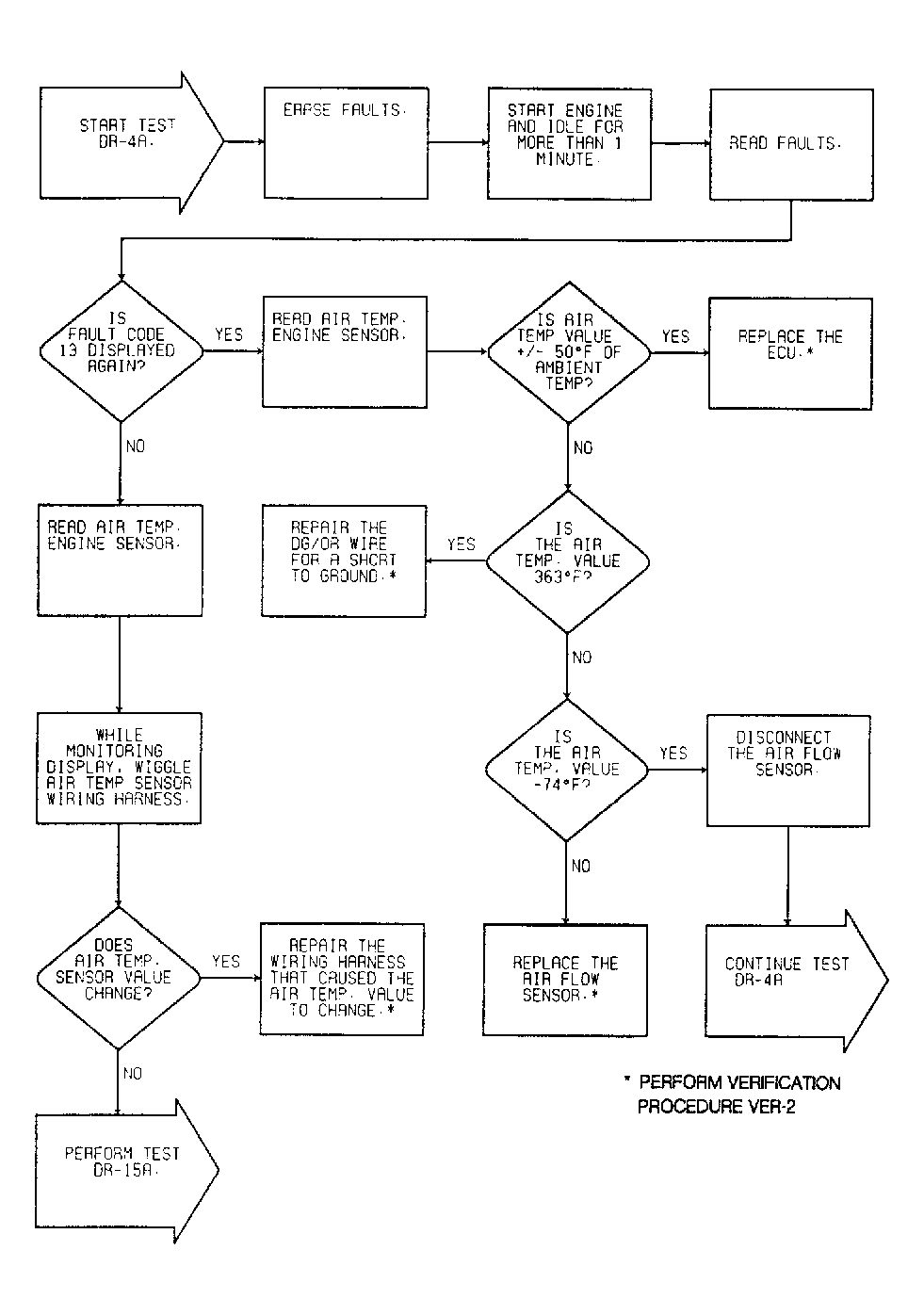

Fig 2: Driveability Test DR-4A: Diagnostic Flow Chart (1 of 2)

G91H11111

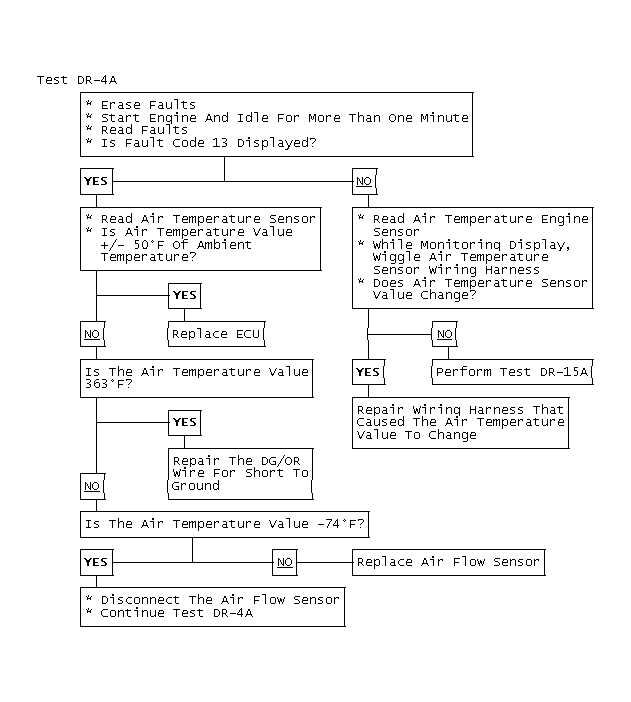

Fig 3: Test DR-4A

GB0044638

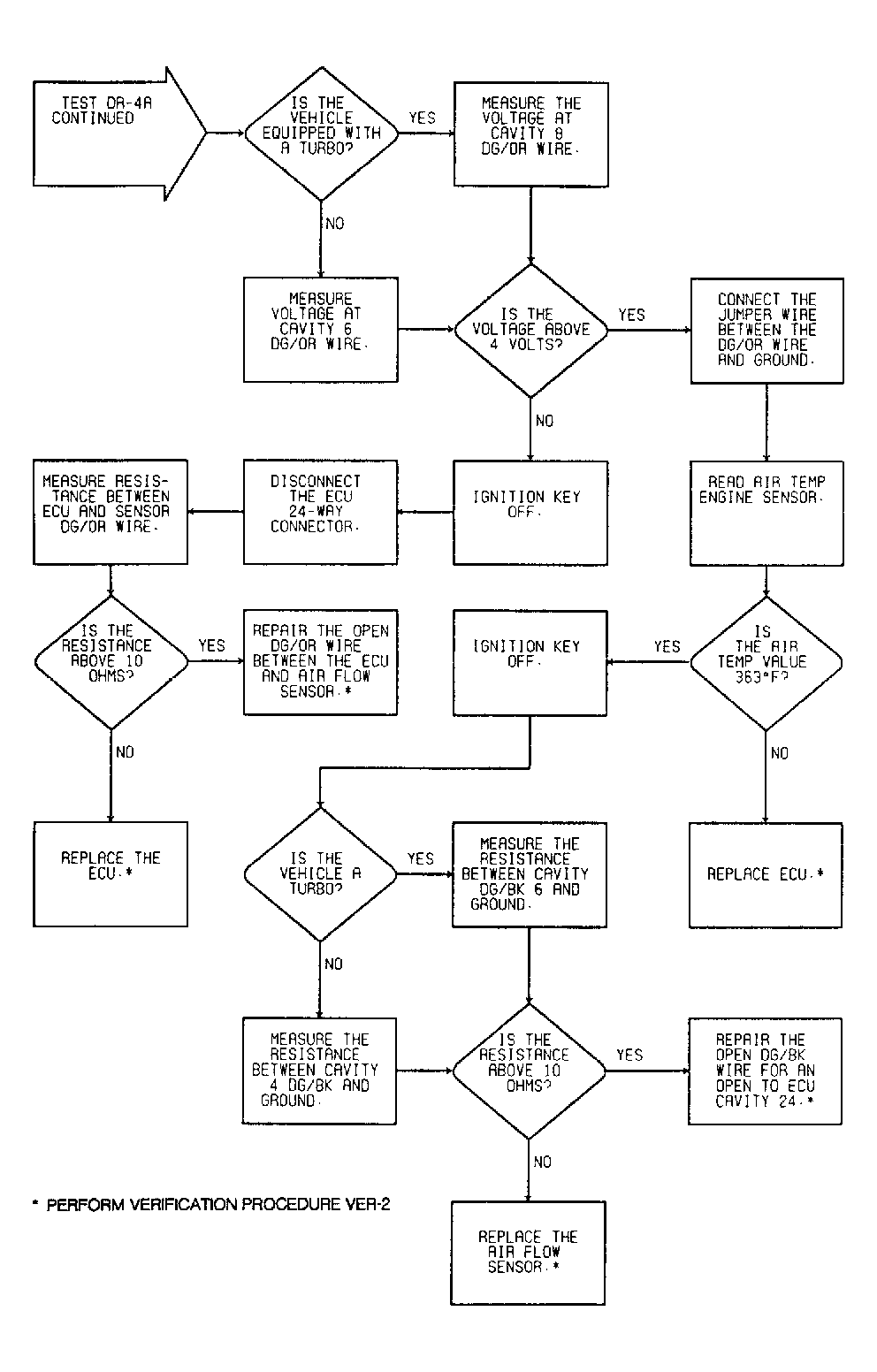

Fig 4: Driveability Test DR-4A: Diagnostic Flow Chart (2 of 2)

G91I11112

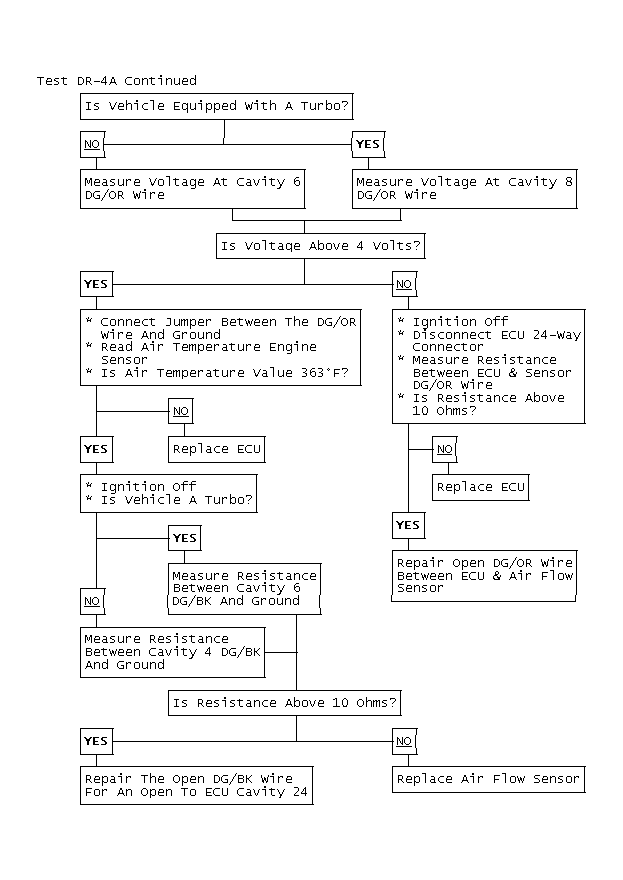

Fig 5: Test DR-4A Continued

GB0044639
