Dr-5A: Testing Throttle Position Sensor

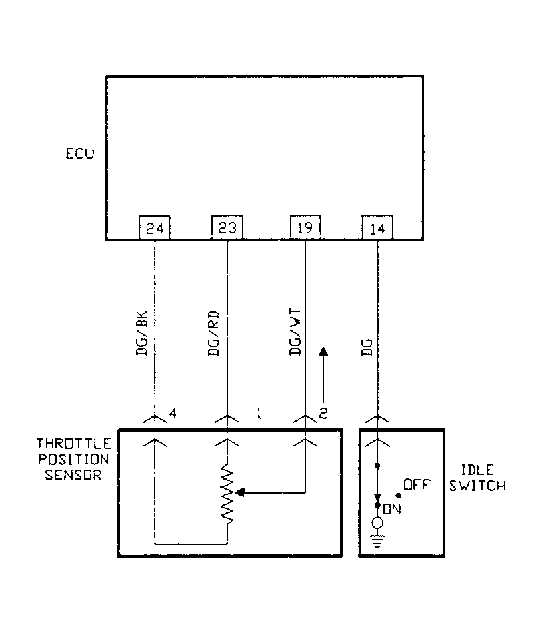

Fig 1: Driveability Test DR-5A: Circuit Diagram

G91I10767

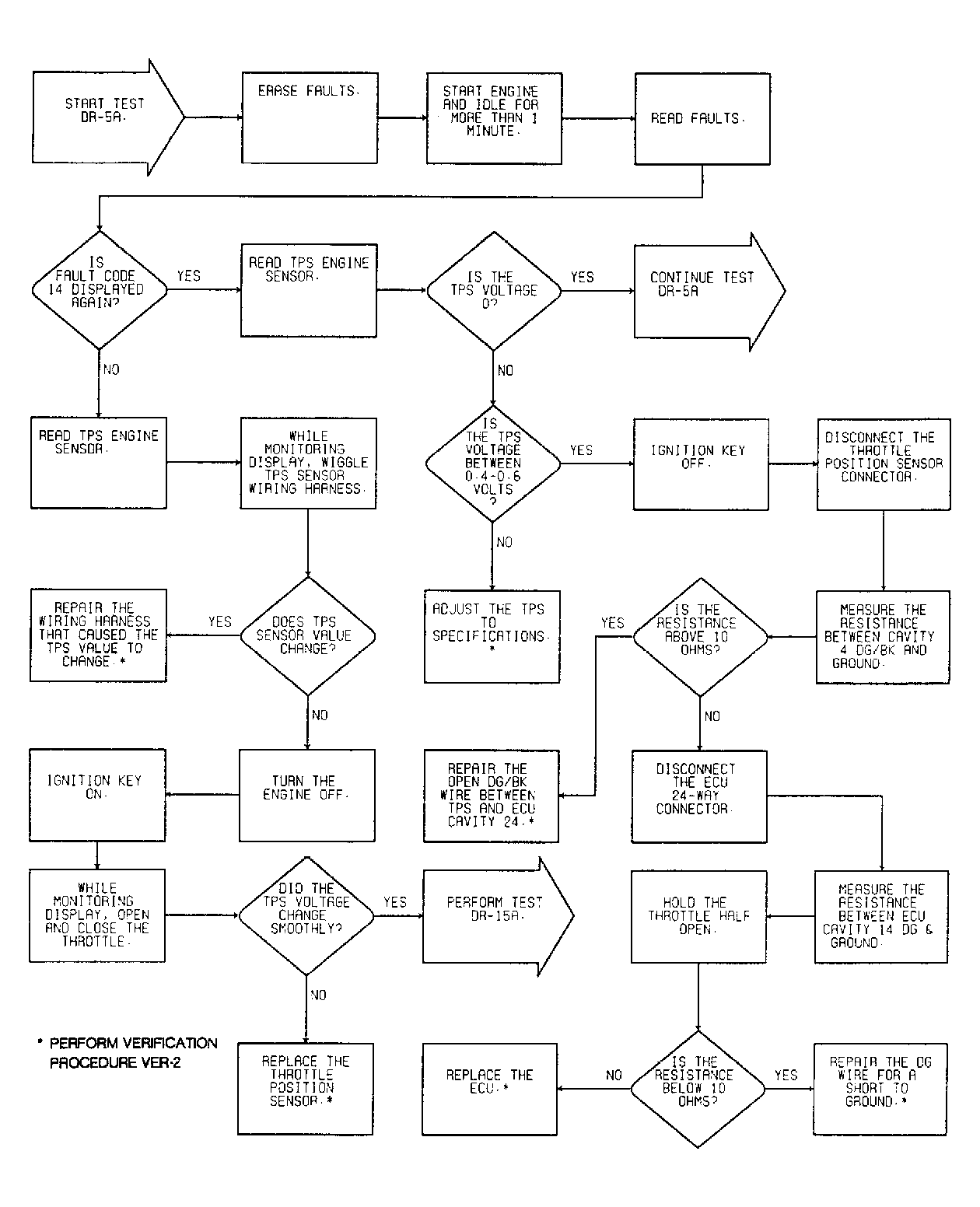

Fig 2: Driveability Test DR-5A: Diagnostic Flow Chart (1 of 2)

G91J11113

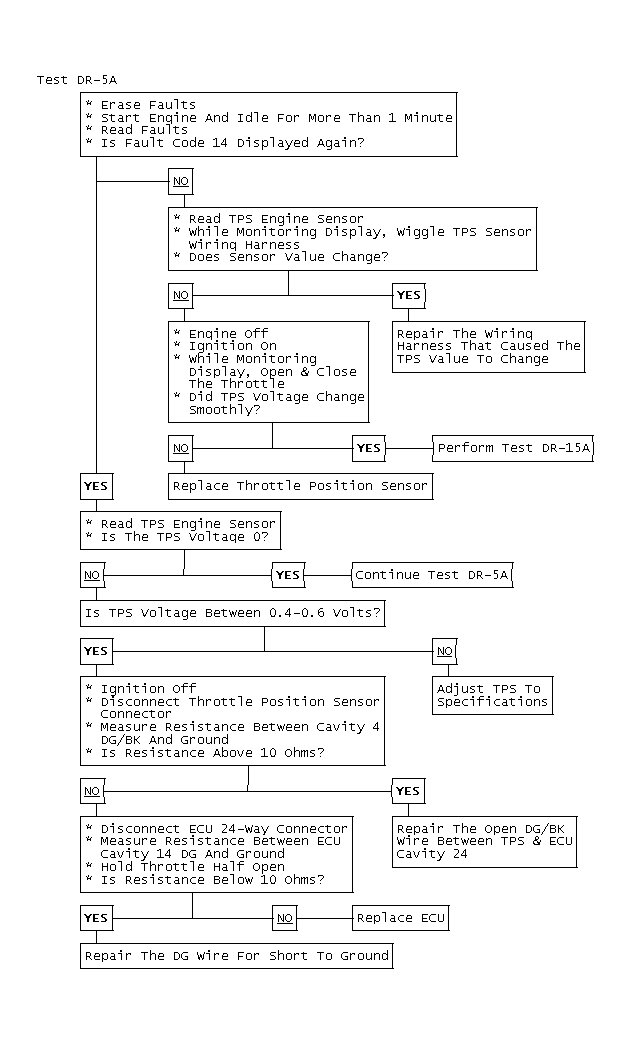

Fig 3: Test DR-5A

GB0044640

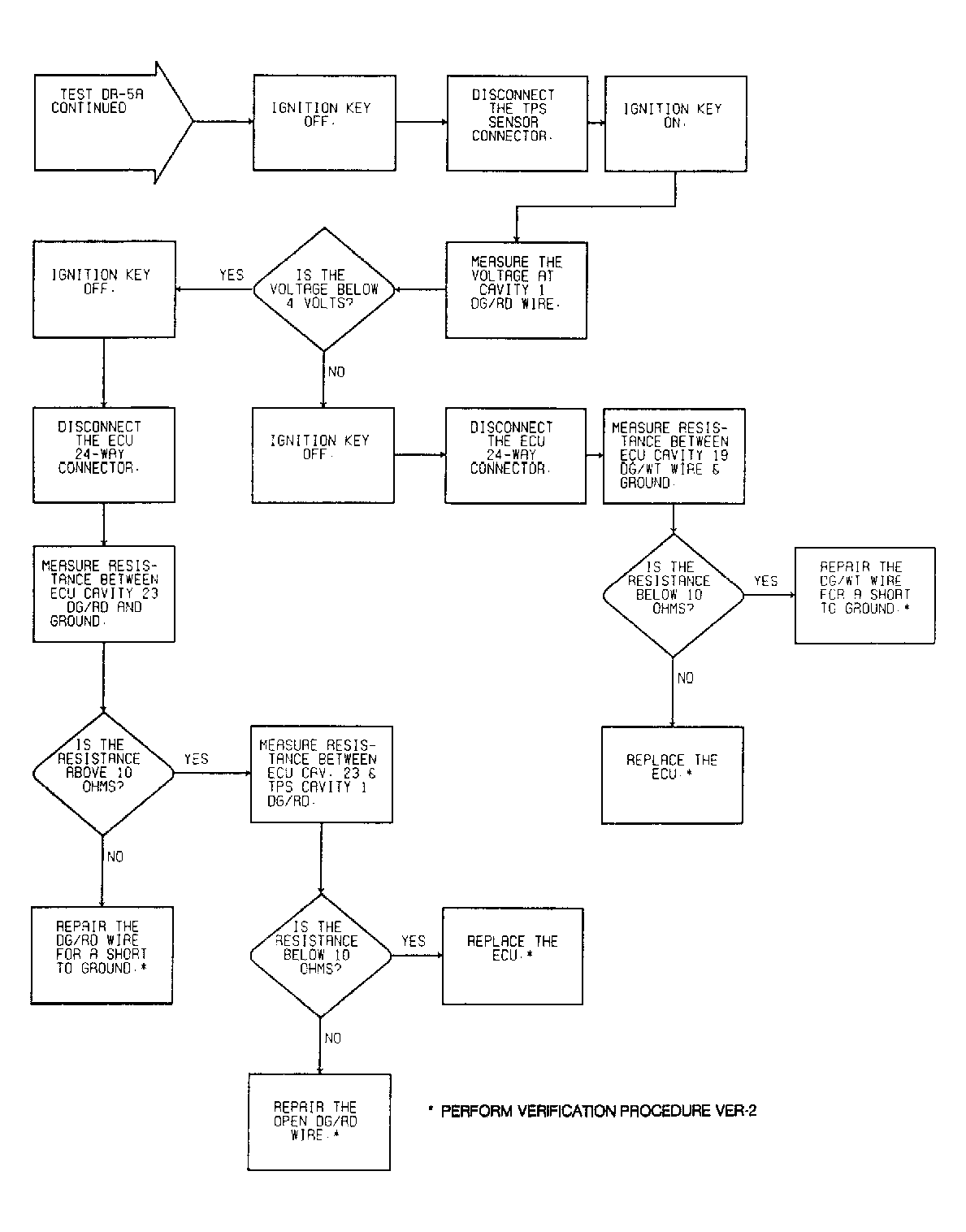

Fig 4: Driveability Test DR-5A: Diagnostic Flow Chart (2 of 2)

G91A11114

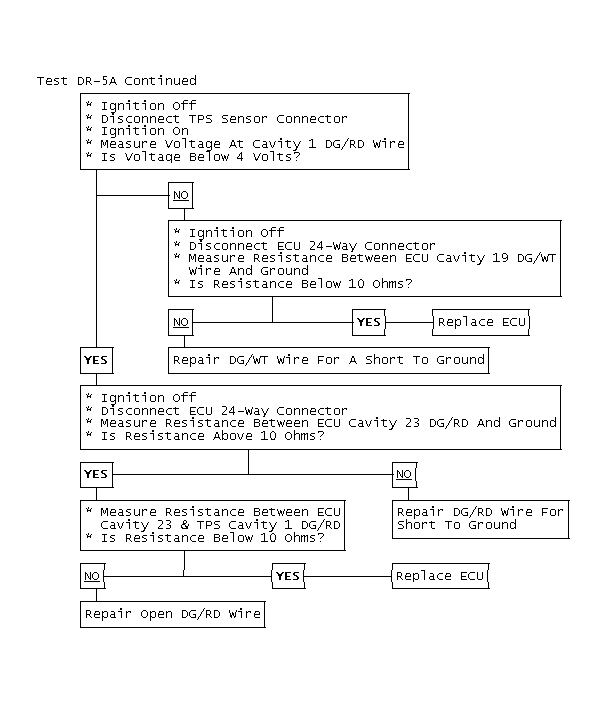

Fig 5: Test DR-5A Continued

GB0044641
