Dr-6A: Testing Coolant Temperature Sensor

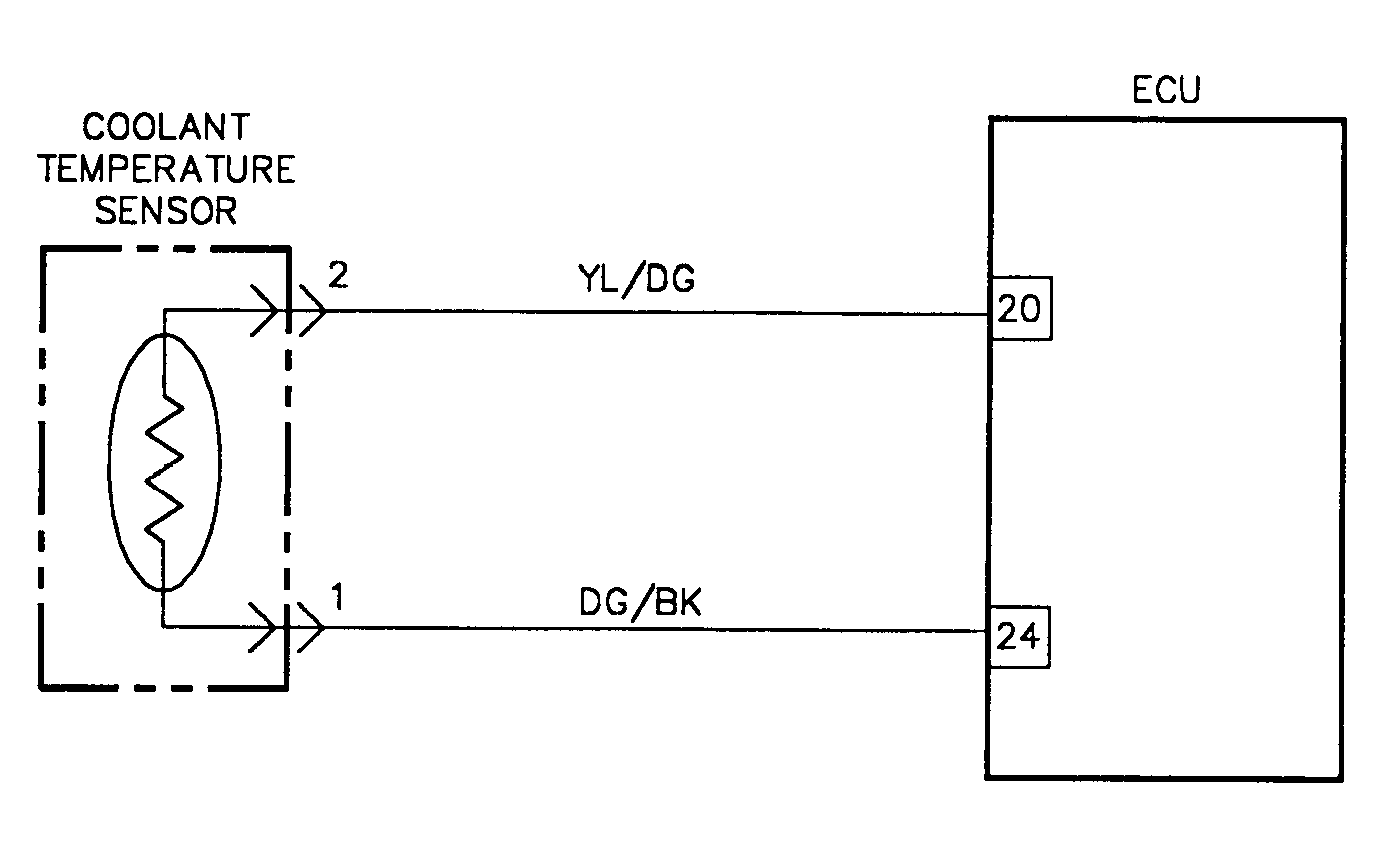

Fig 1: Driveability Test DR-6A: Circuit Diagram

G91J10768

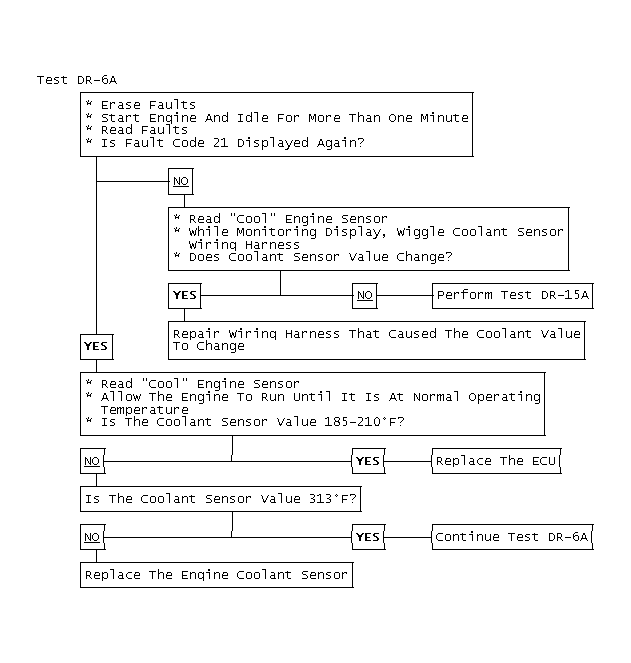

Fig 2: Driveability Test DR-6A: Diagnostic Flow Chart (1 of 2)

G91B11115

Fig 3: Test DR-6A

GB0044642

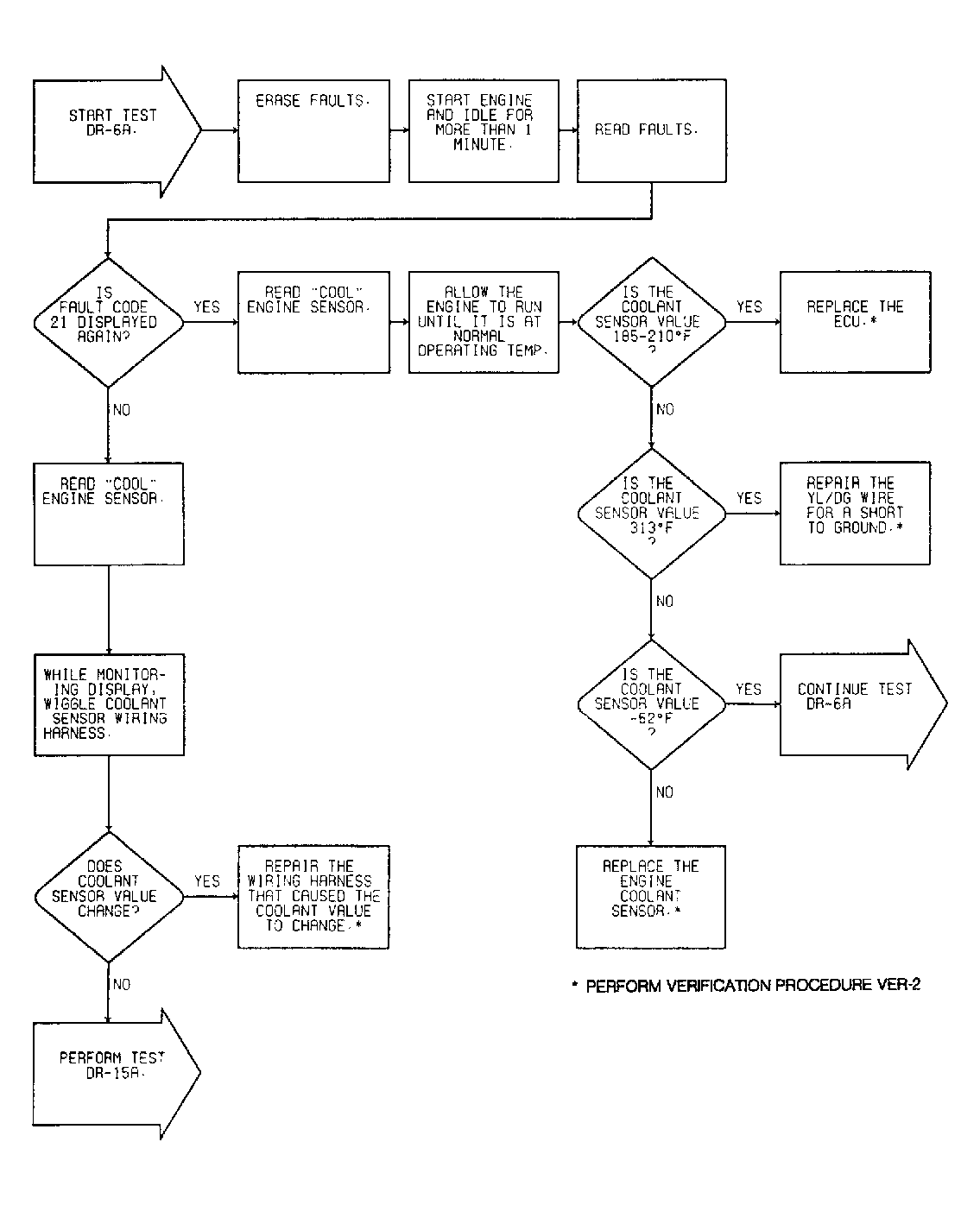

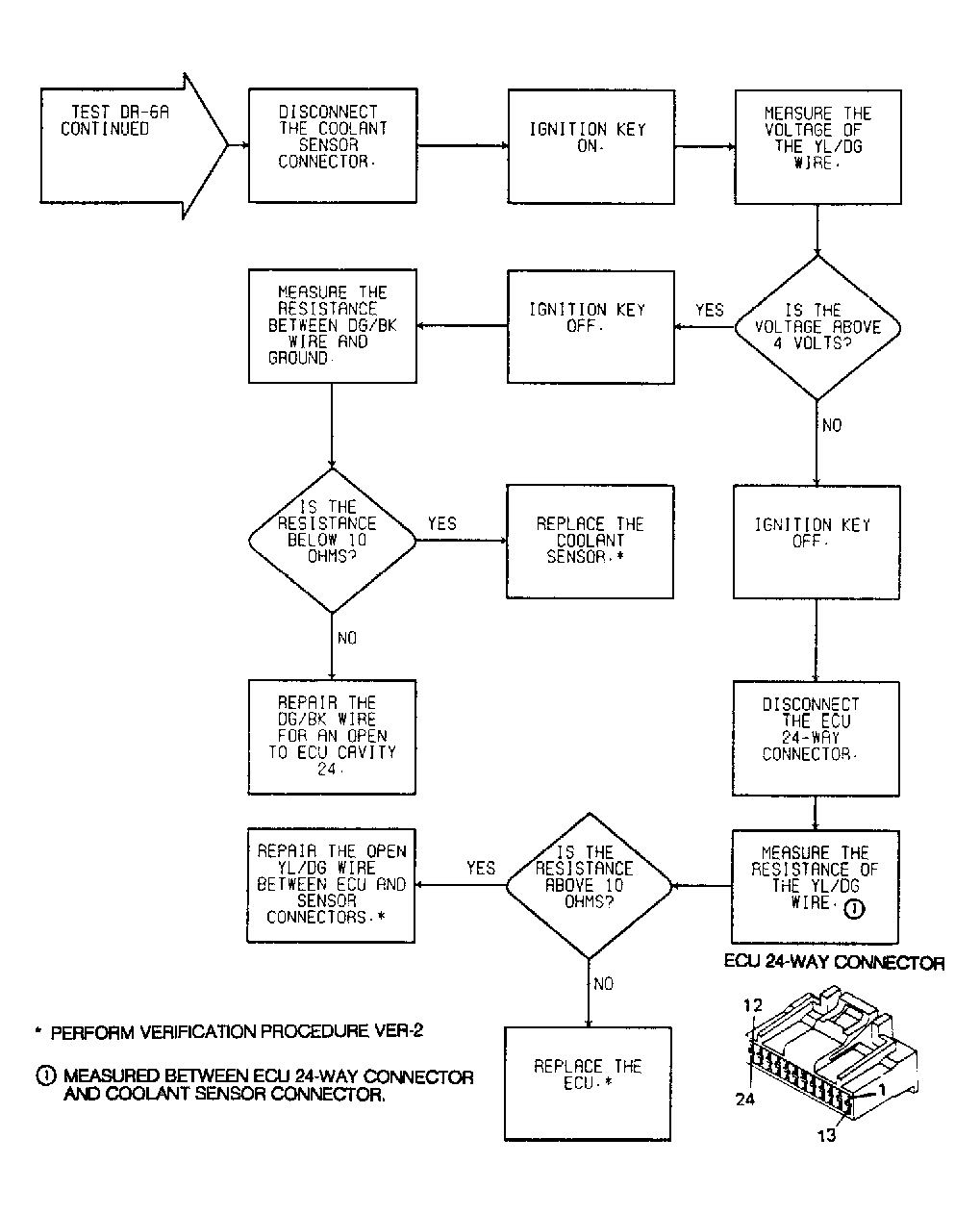

Fig 4: Driveability Test DR-6A: Diagnostic Flow Chart (2 of 2)

G91C11116

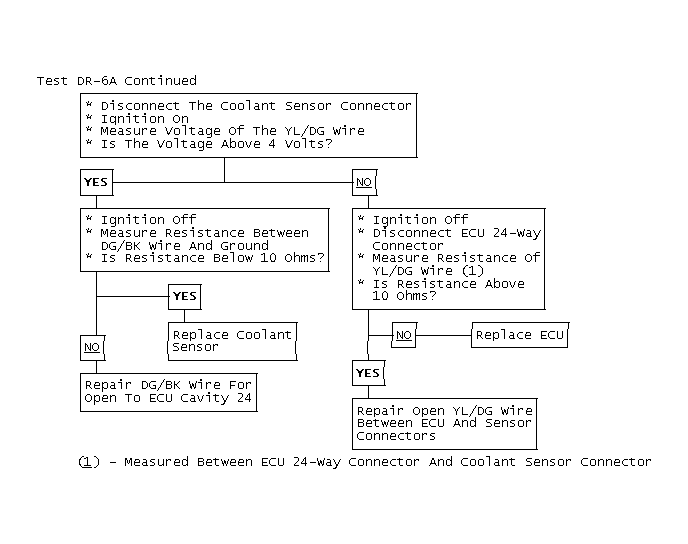

Fig 5: Test DR-6A Continued

GB0044643
