NS-3A: Checking Fuel Pump

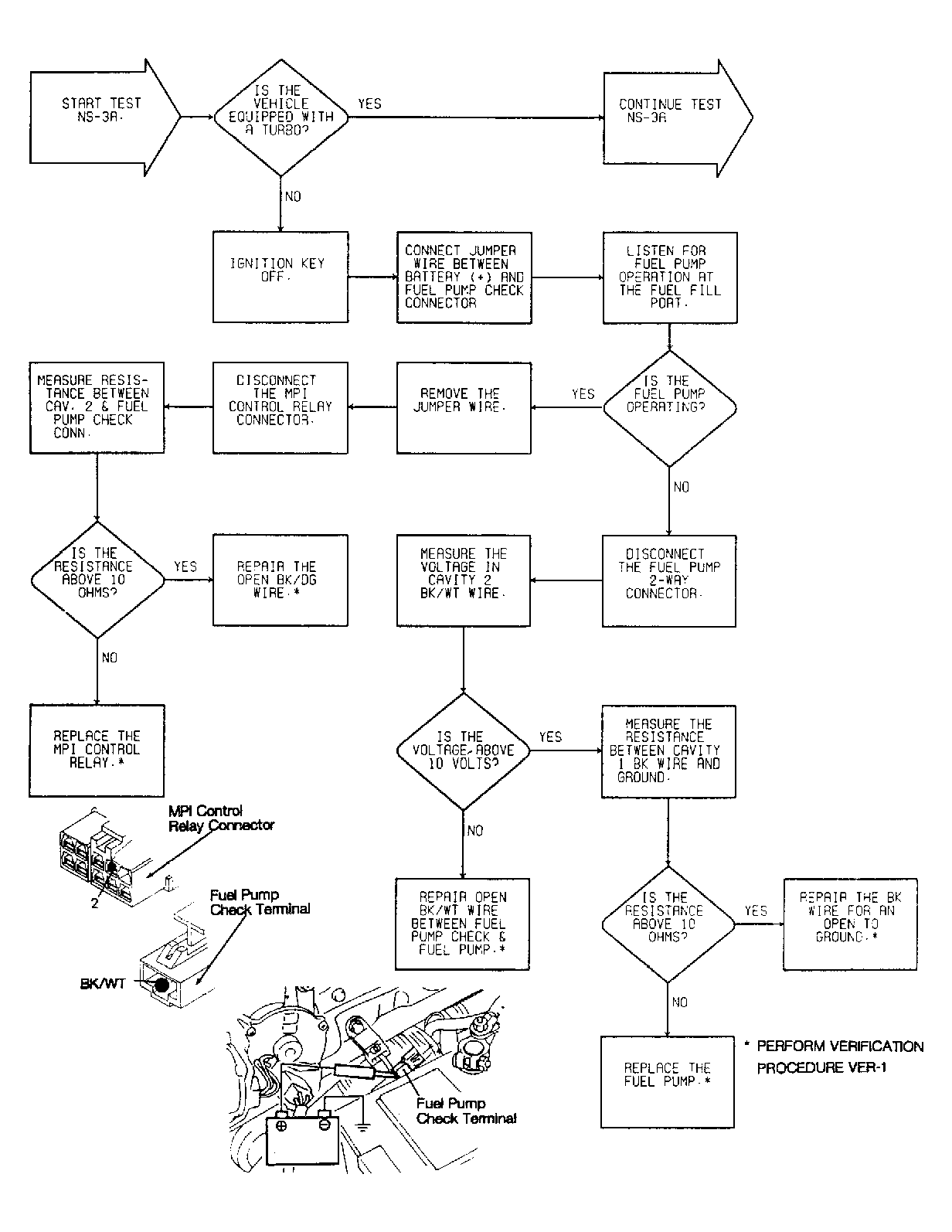

Fig 1: No Start Test NS-3A: Diagnostic Flow Chart (1 of 2)

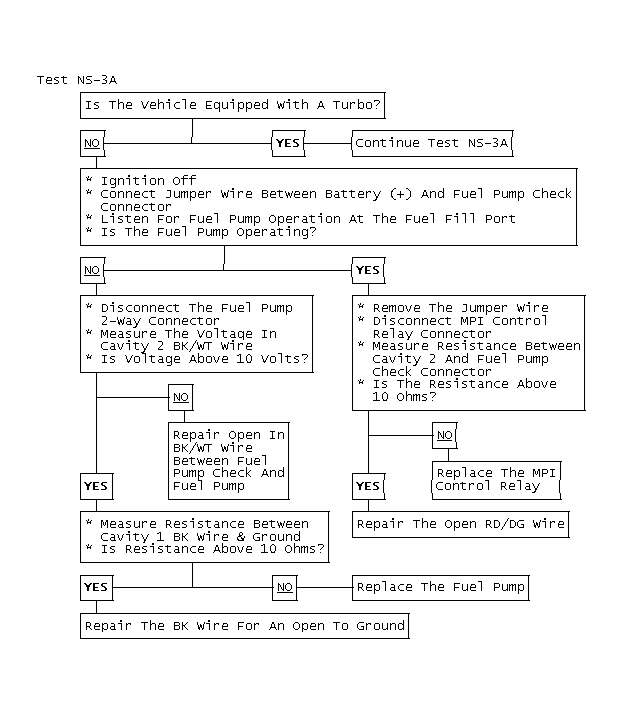

Fig 2: Test NS-3A

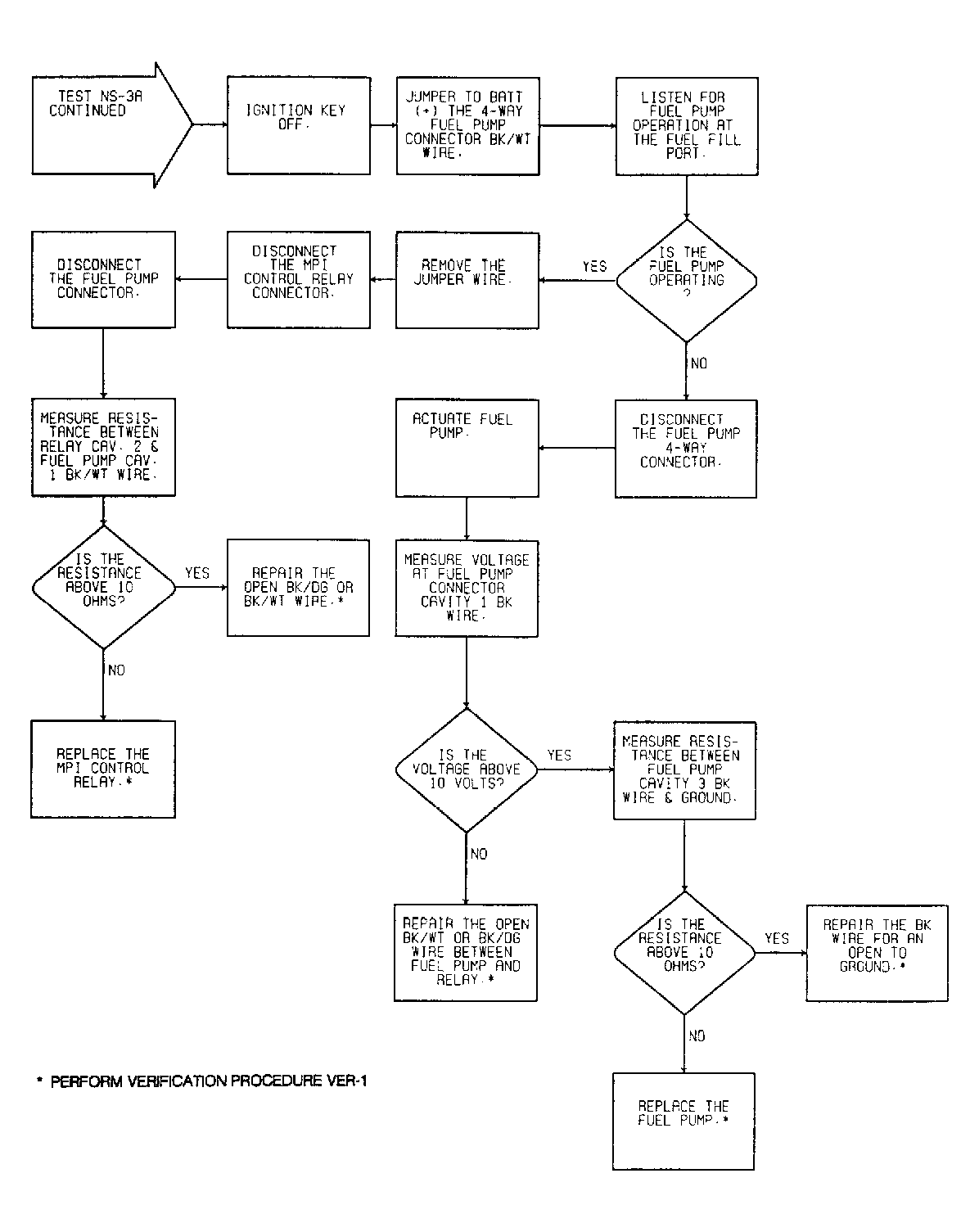

Fig 3: No Start Test NS-3A: Diagnostic Flow Chart (2 of 2)

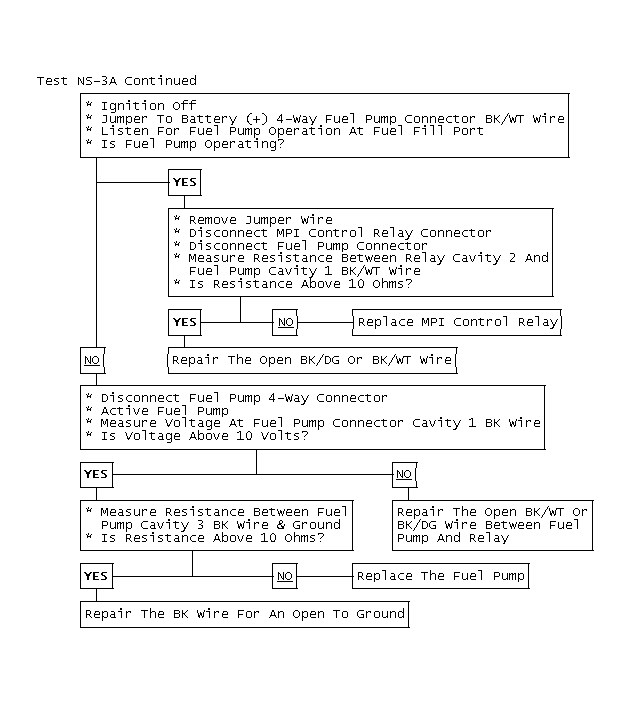

Fig 4: Test NS-3A Continued
