Dr-10A: Testing Detonation Sensor

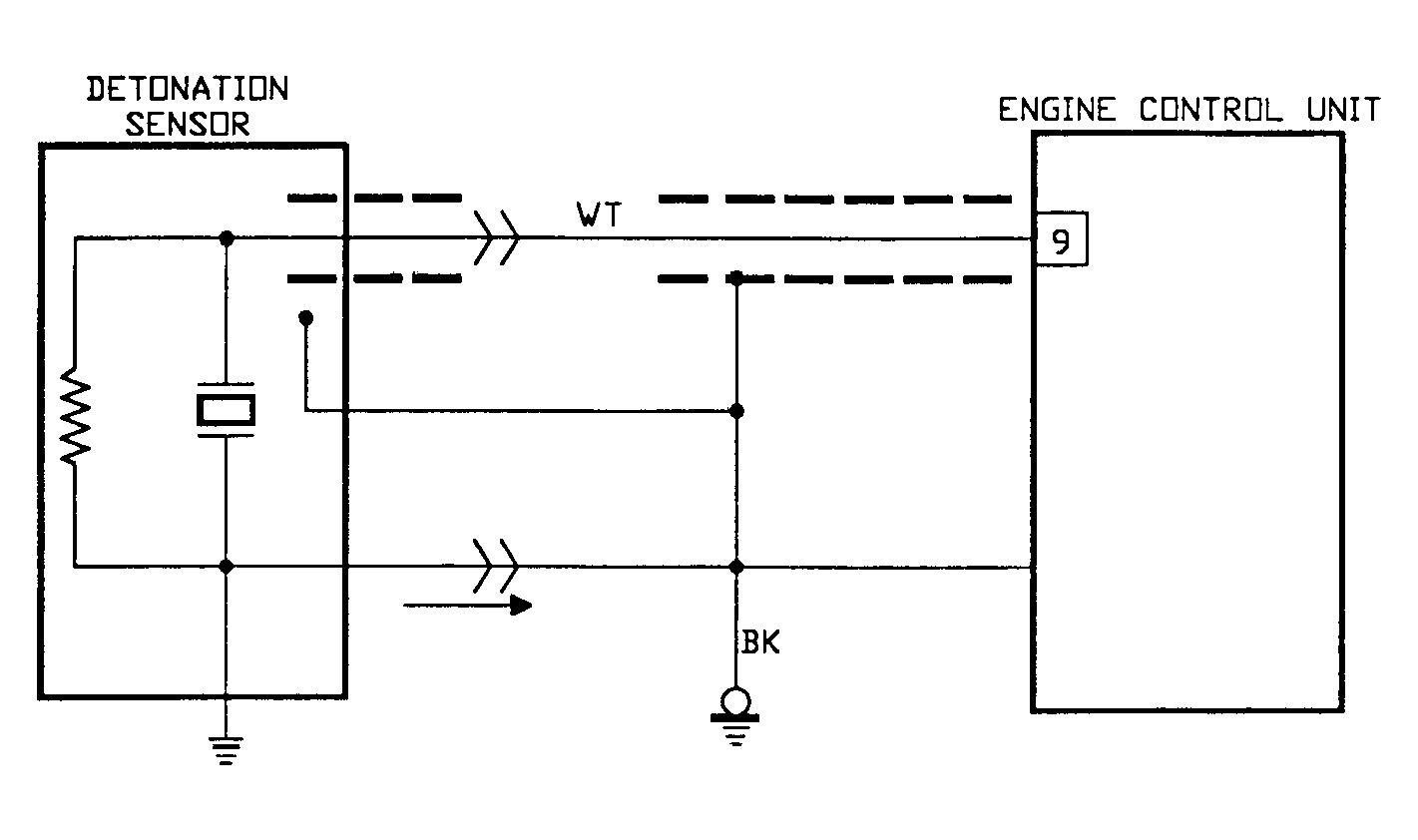

Fig 1: Driveability Test DR-10A: Circuit Diagram
G91E10771

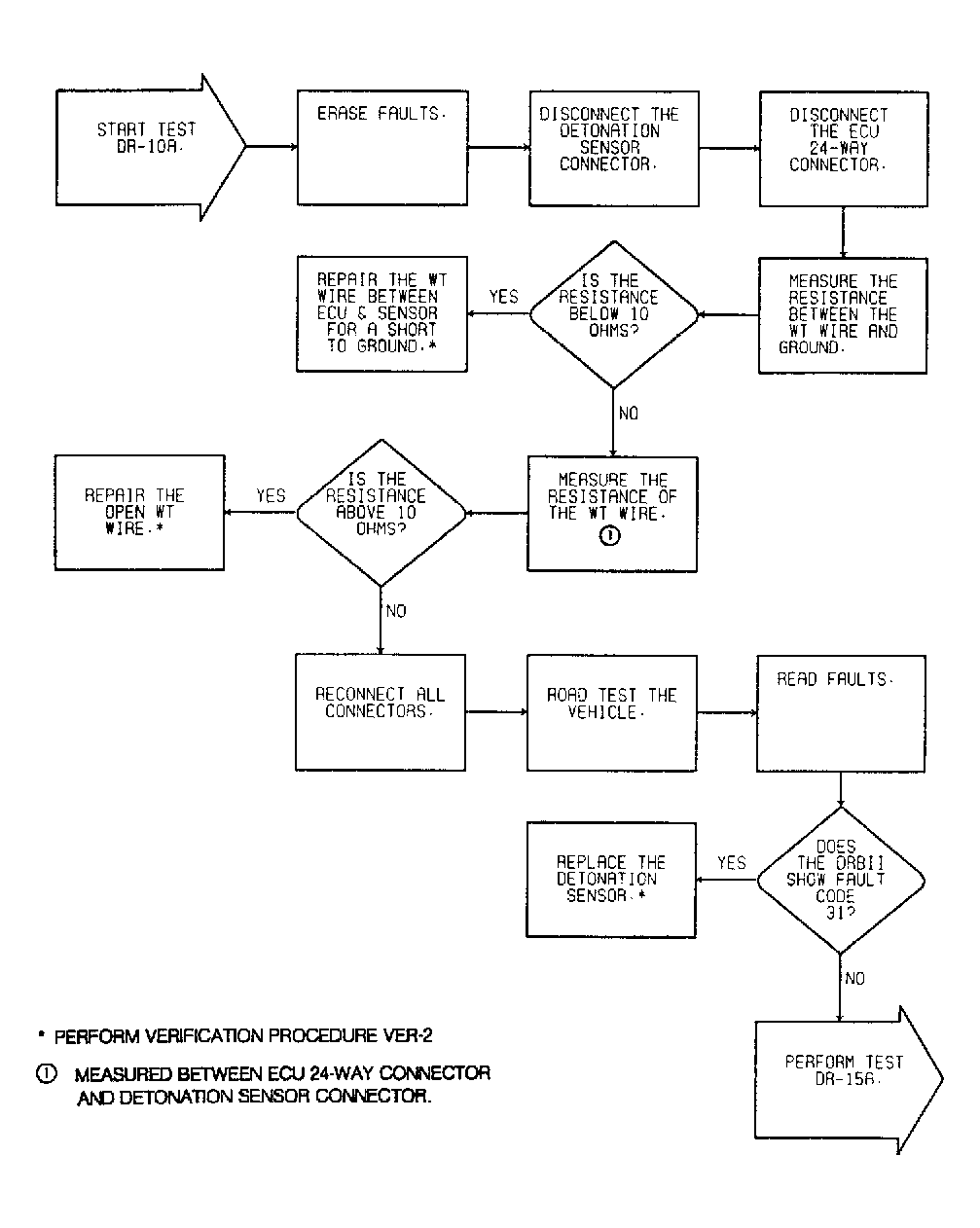

Fig 2: Driveability Test DR-10A: Diagnostic Flow Chart
G91J11121

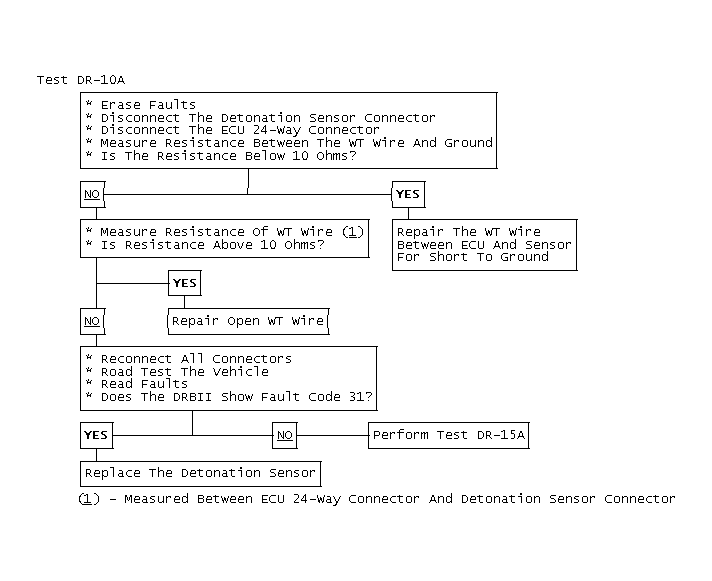

Fig 3: Test DR-10A
GB0044648
