Dr-2A: Testing Oxygen Sensor

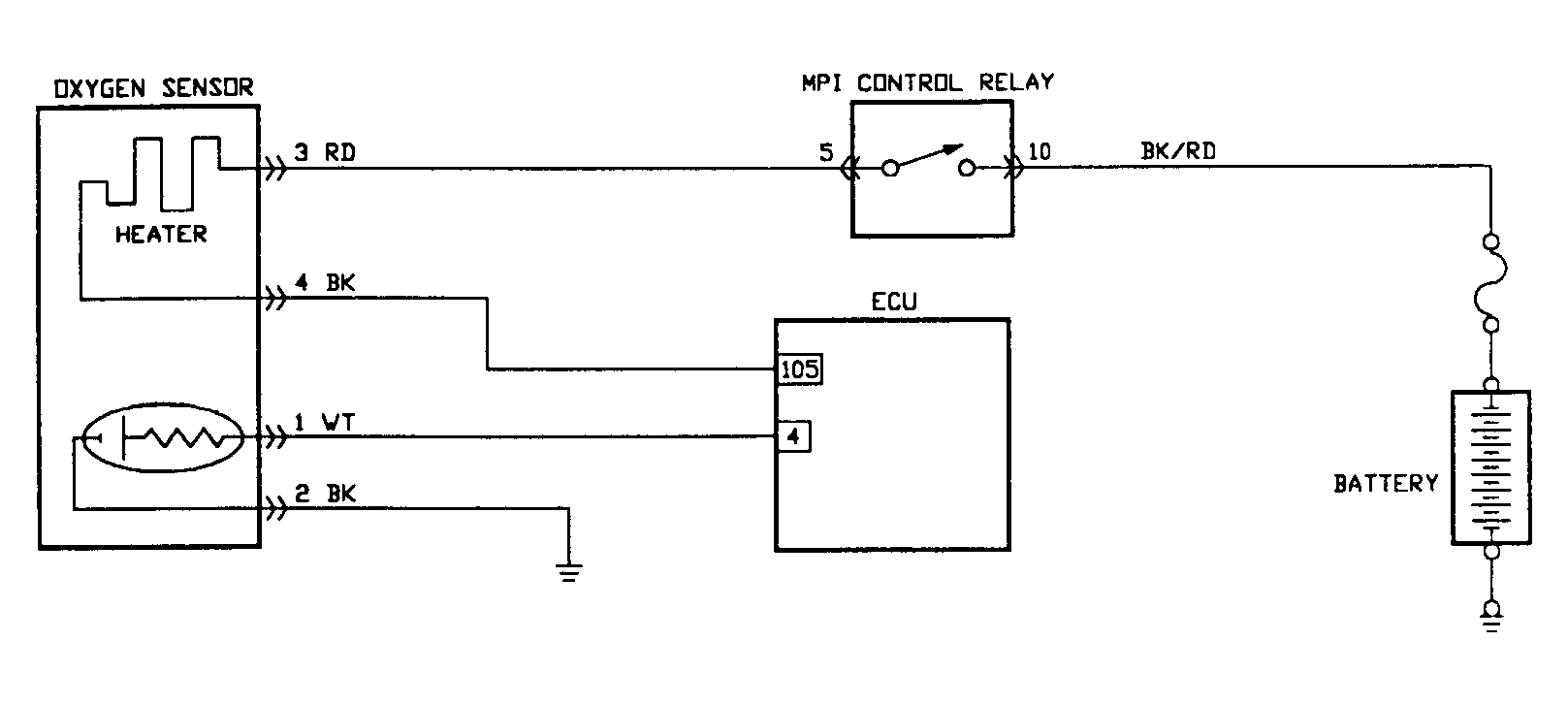

Fig 1: Driveability Test DR-2A: Circuit Diagram
G91G10765

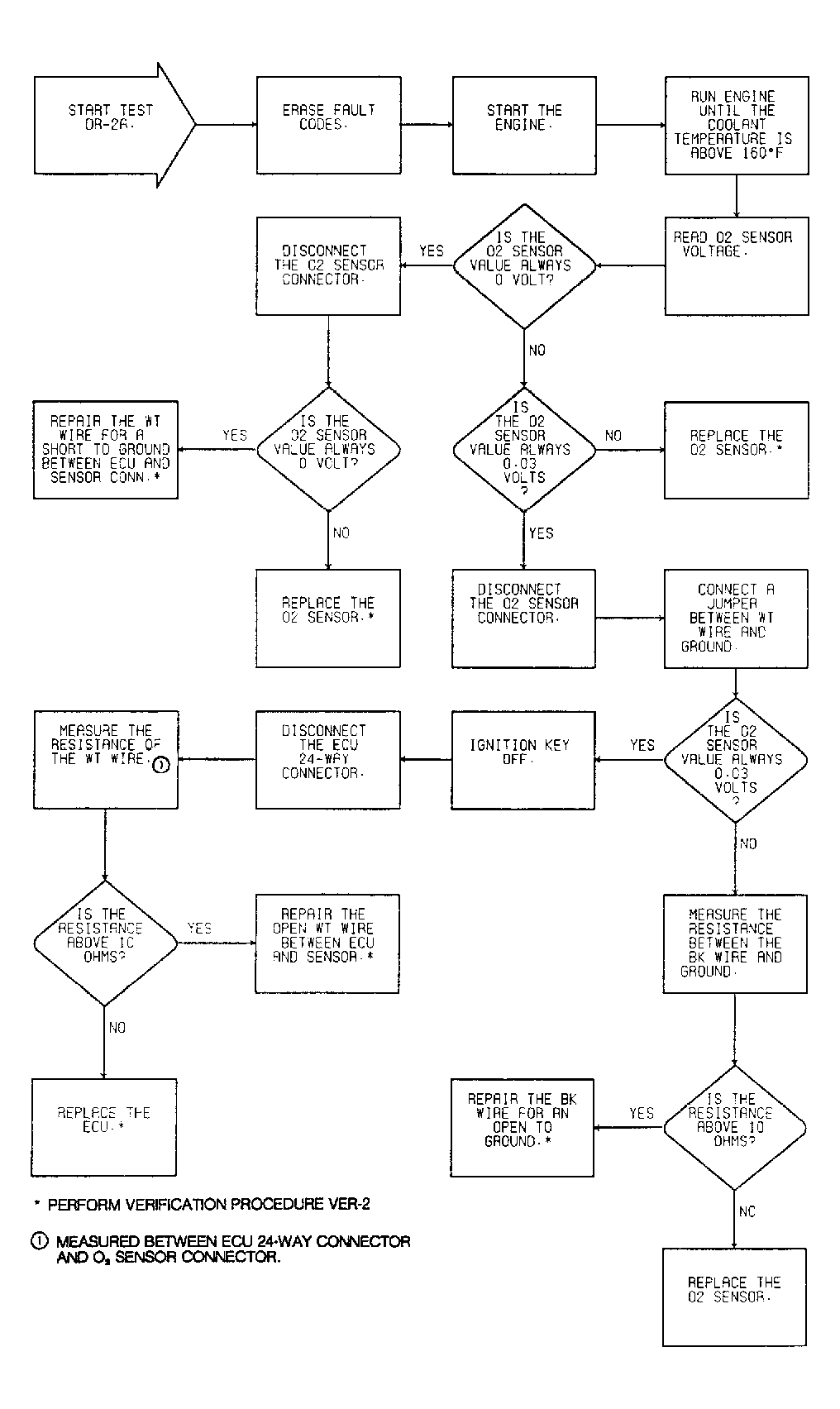

Fig 2: Driveability Test DR-2A: Diagnostic Flow Chart
G91C11108

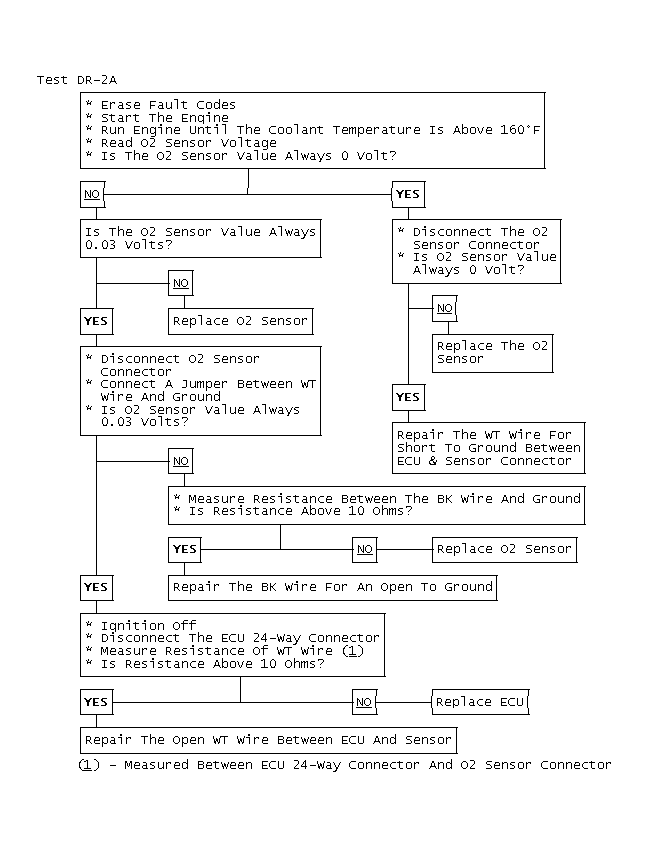

Fig 3: Test DR-2A
GB0044635
