Dr-9A: Testing Barometric Pressure Sensor

Fig 1: Driveability Test DR-9A: Circuit Diagram

G91H10766

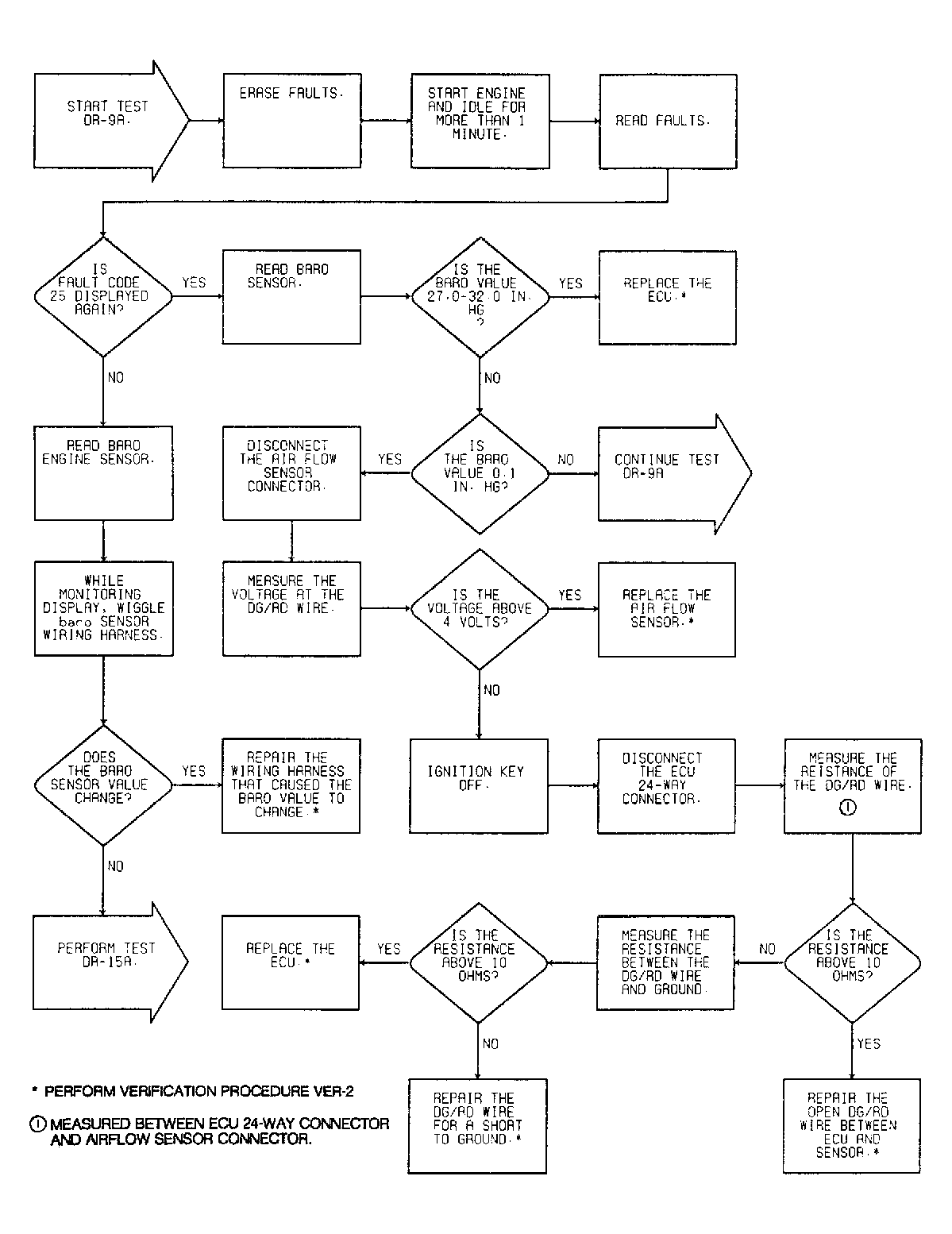

Fig 2: Driveability Test DR-9A: Diagnostic Flow Chart (1 of 2)

G91F11119

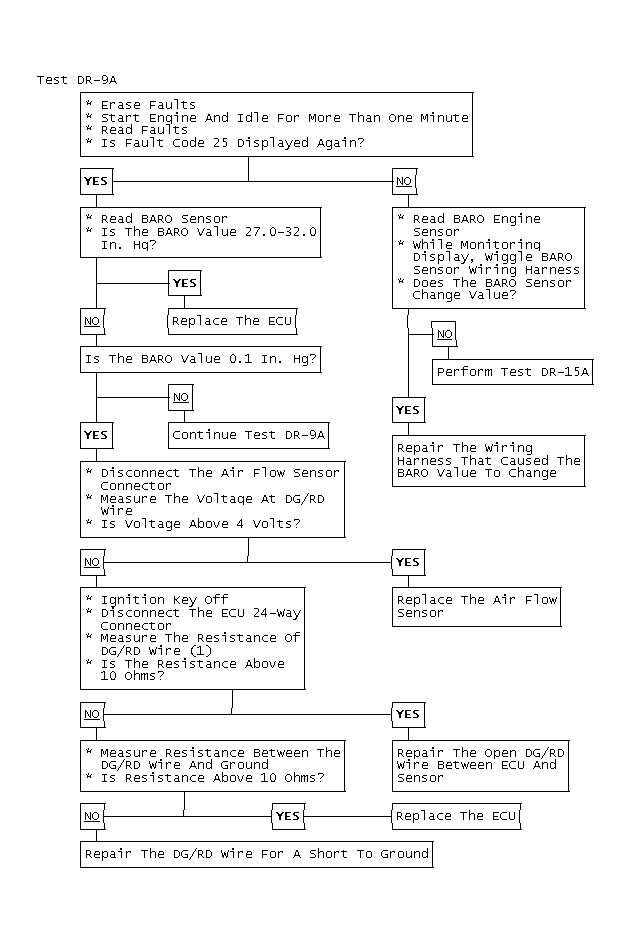

Fig 3: Test DR-9A

GB0044646

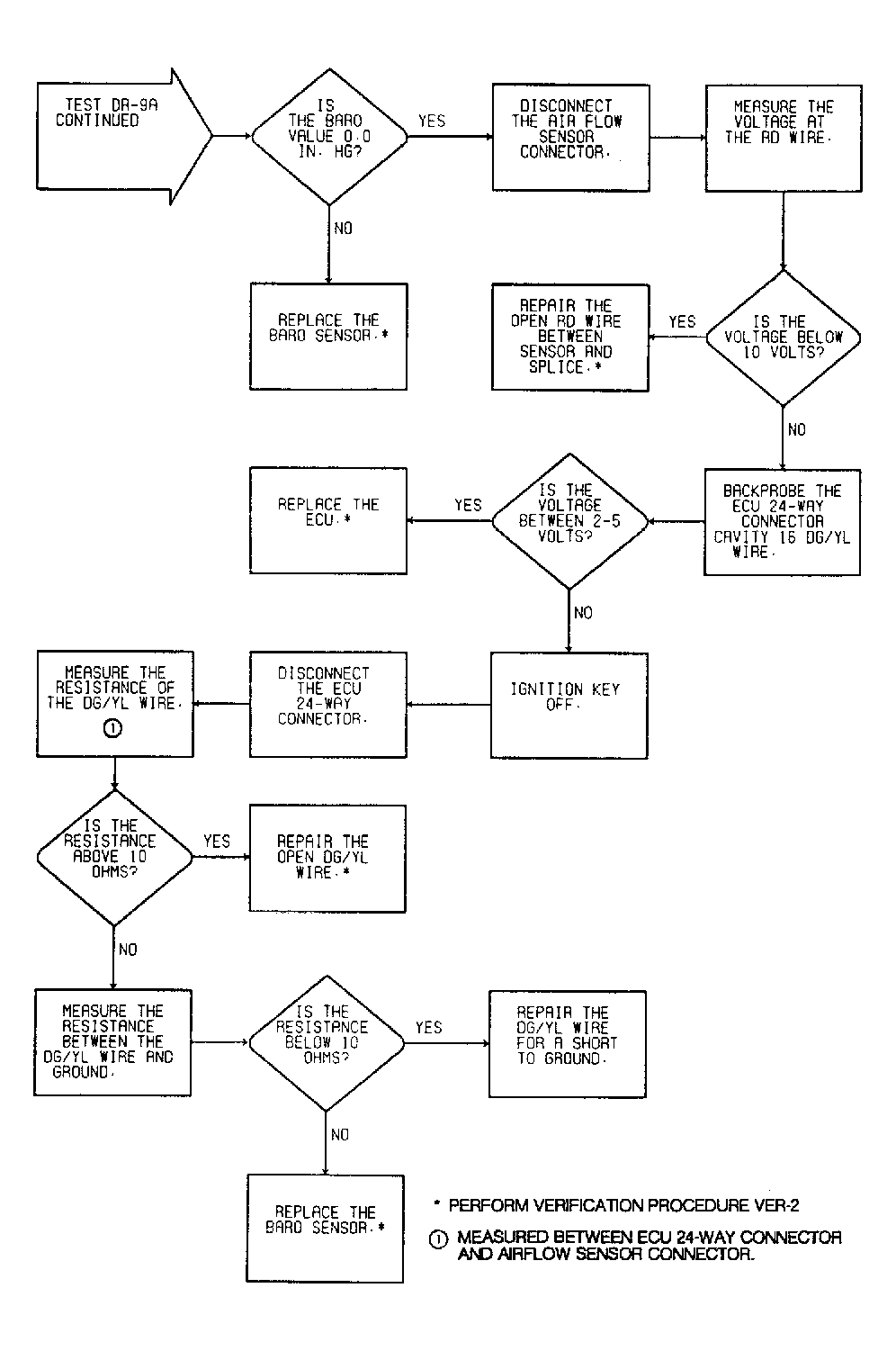

Fig 4: Driveability Test DR-9A: Diagnostic Flow Chart (2 of 2)

G91I11120

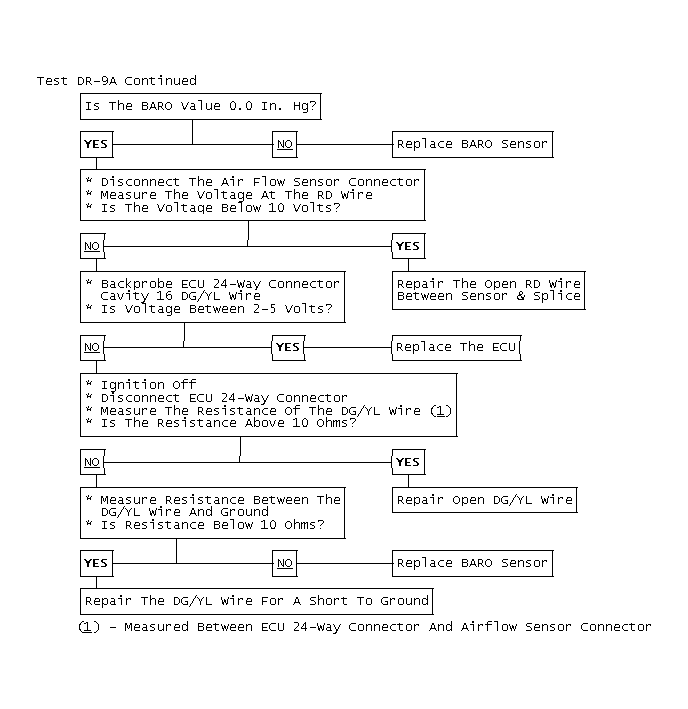

Fig 5: Test DR-9A Continued

GB0044647
