NS-2A: Checking Fuel System

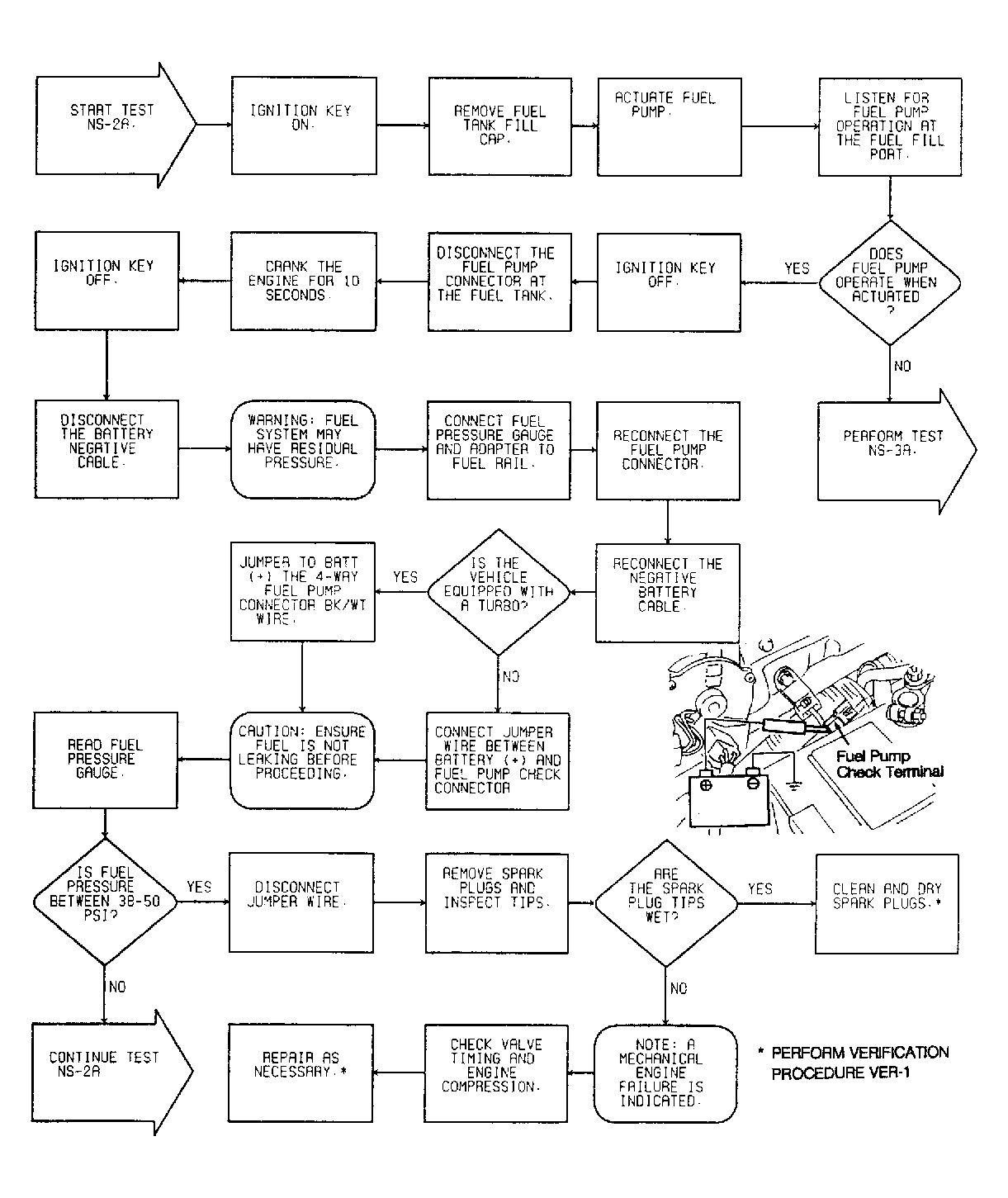

Fig 1: No Start Test NS-2A: Diagnostic Flow Chart (1 of 2)
G91G10781

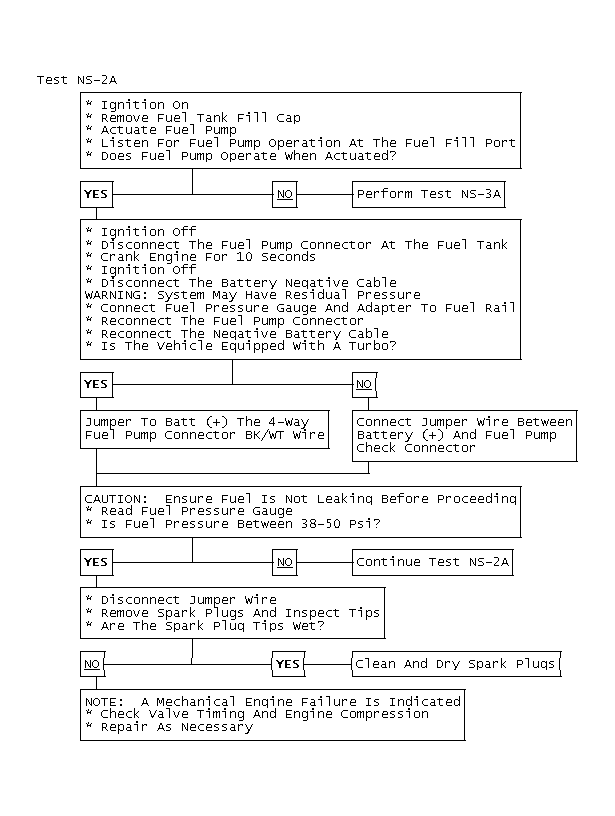

Fig 2: Test NS-2A
GB0044620

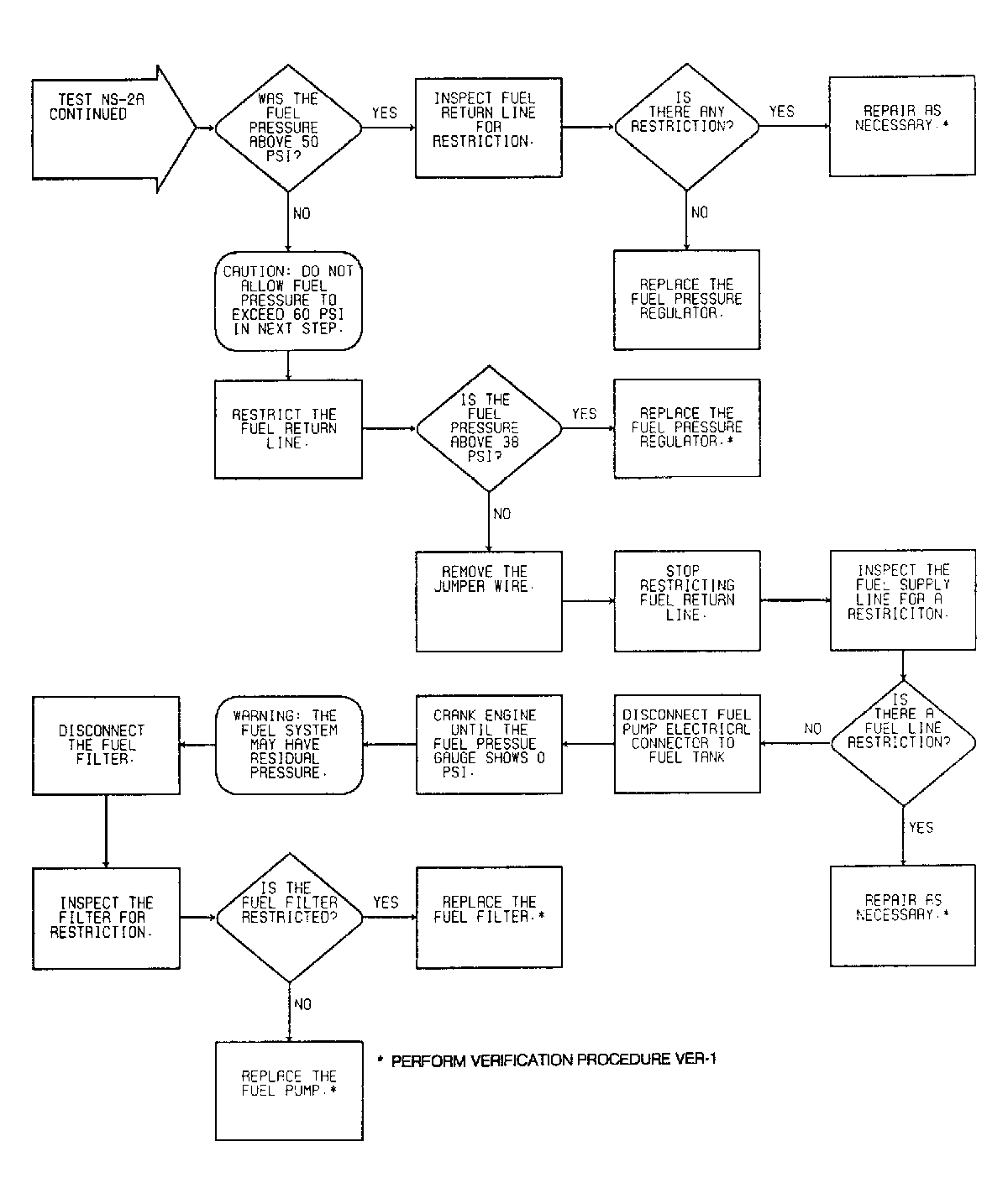

Fig 3: No Start Test NS-2A: Diagnostic Flow Chart (2 of 2)
G91H10782

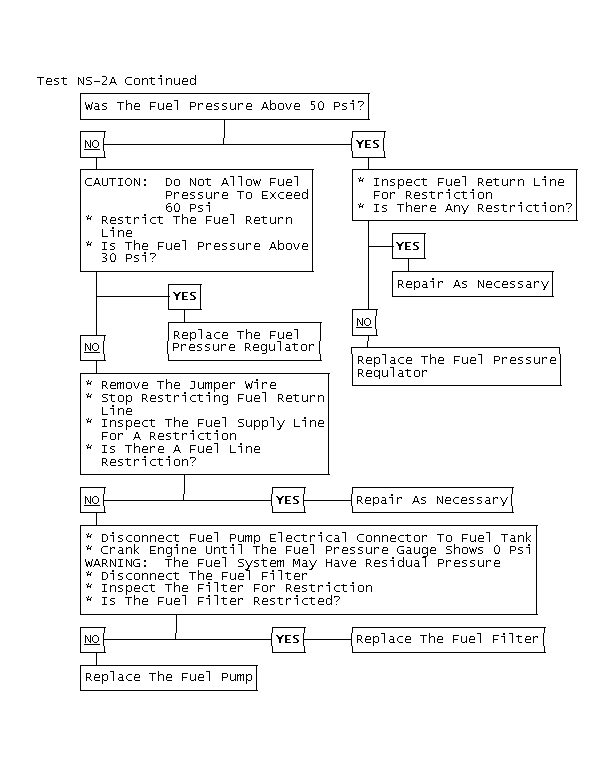

Fig 4: Test NS-2A Continued
GB0044621
