NS-7A: Checking DRB-II Communication

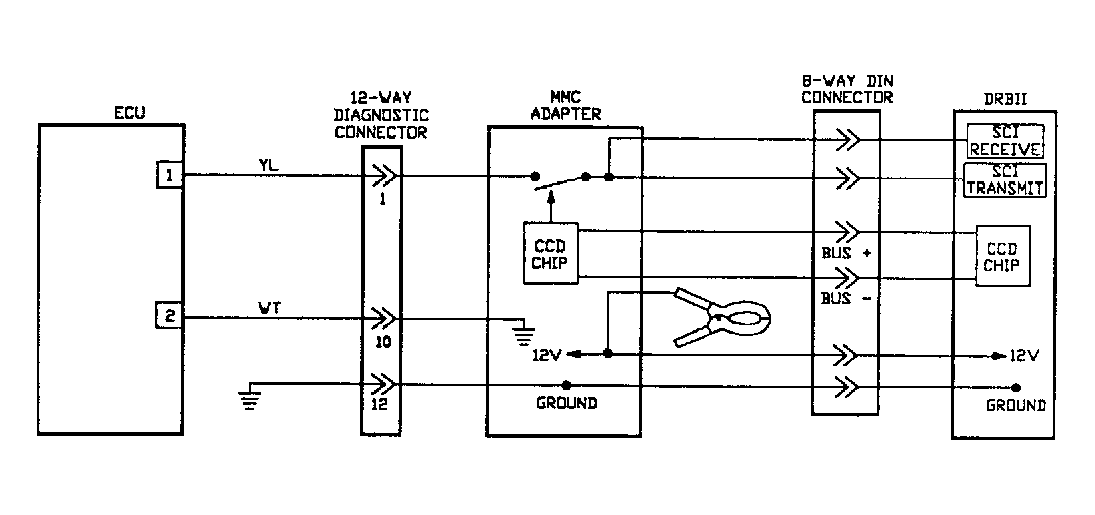

Fig 1: No Start Test NS-7A: Ckt Diag.

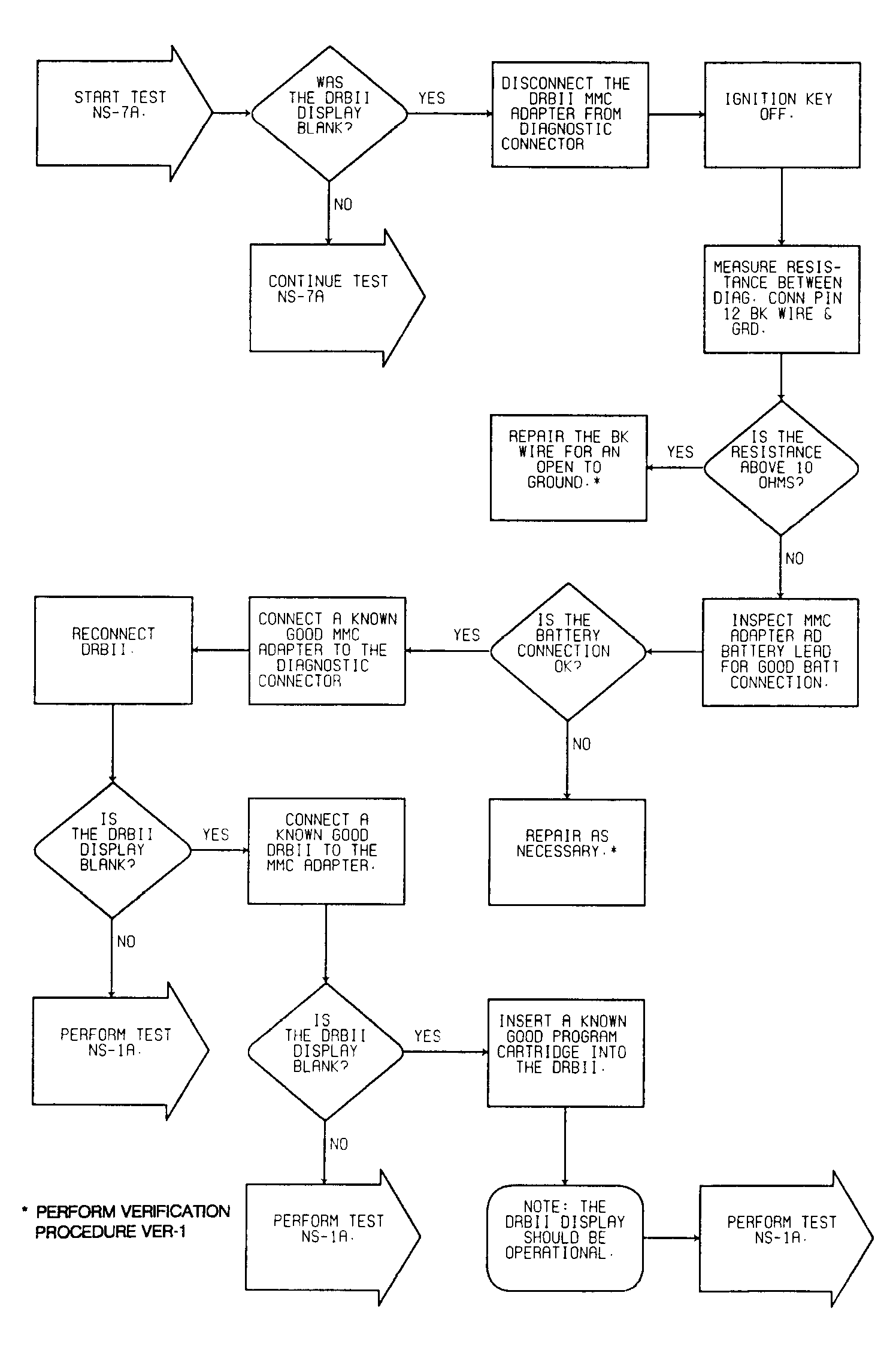

Fig 2: No Start Test NS-7A: Diagnostic Flow Chart (1 of 2)

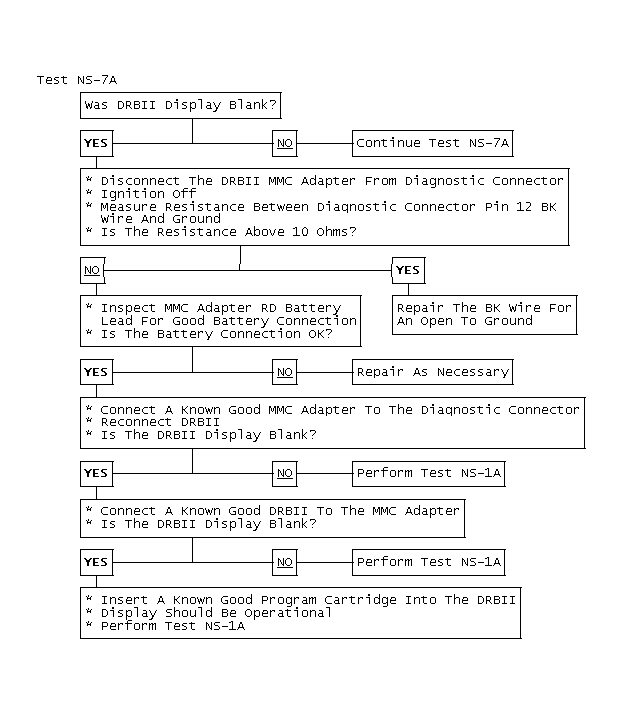

Fig 3: Test NS-7A

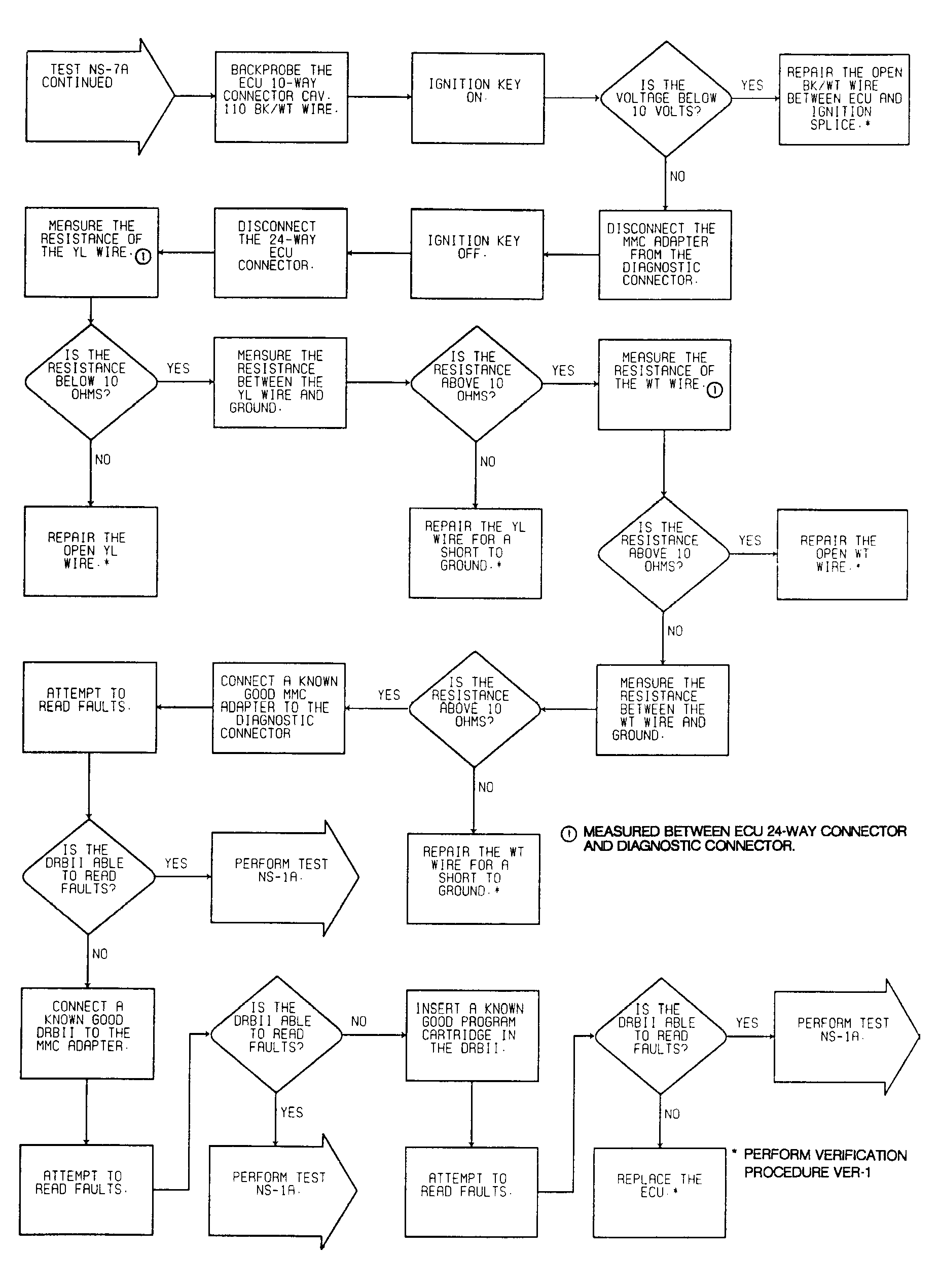

Fig 4: No Start Test NS-7A: Diagnostic Flow Chart (2 of 2)

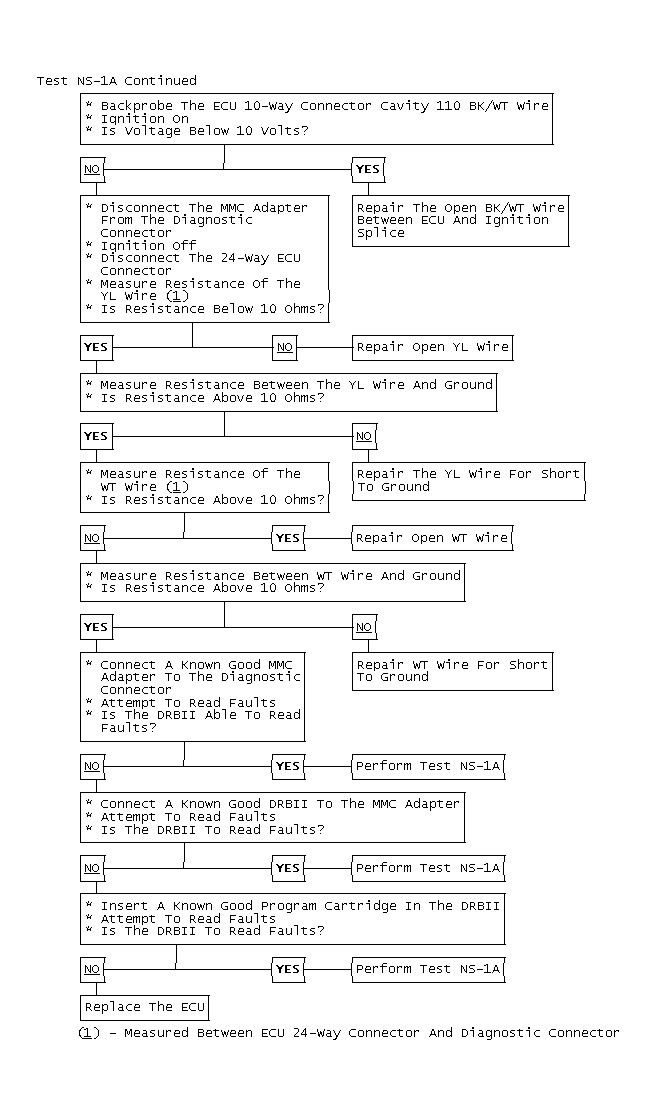

Fig 5: Test NS-1A Continued
