VER-2: Verification Procedure 2

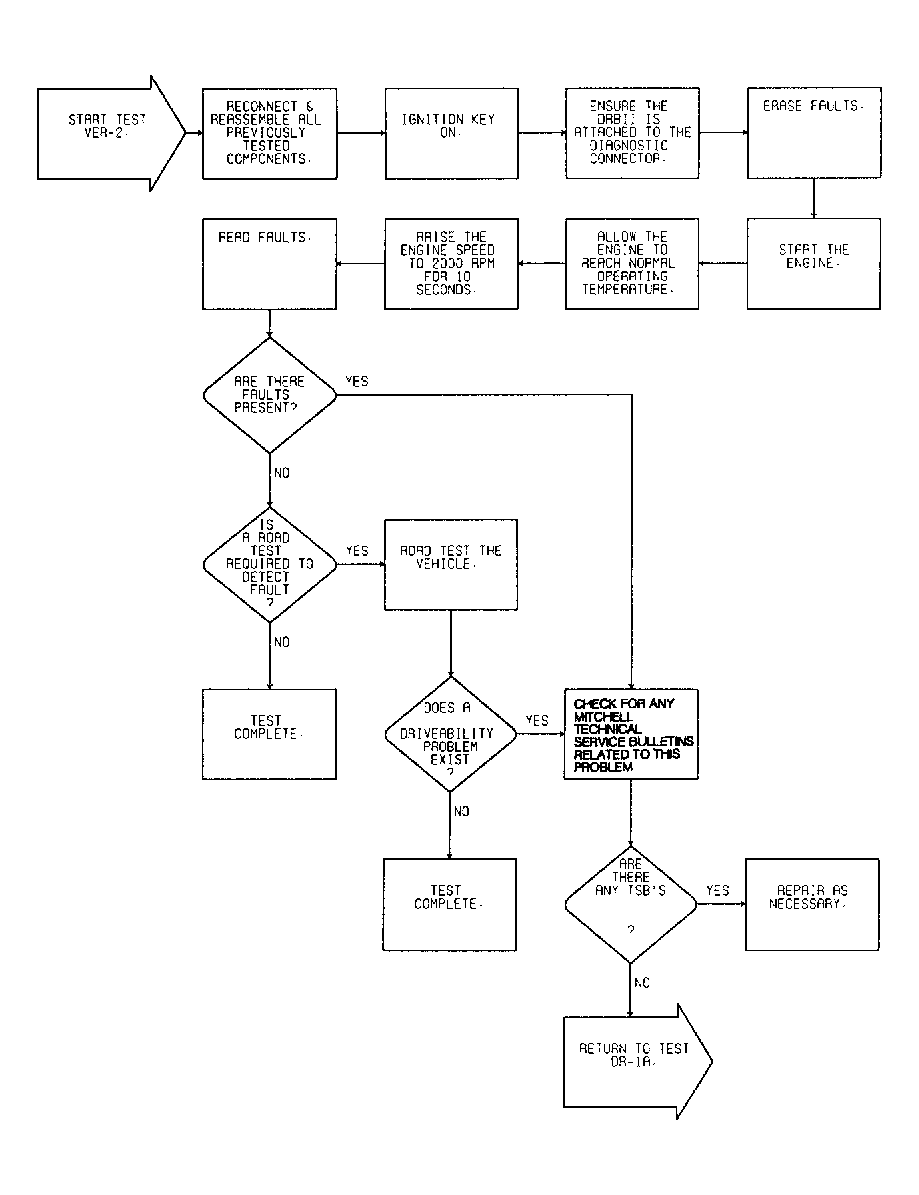

Fig 1: VER-2 Verification Procedure 2

G91F11150

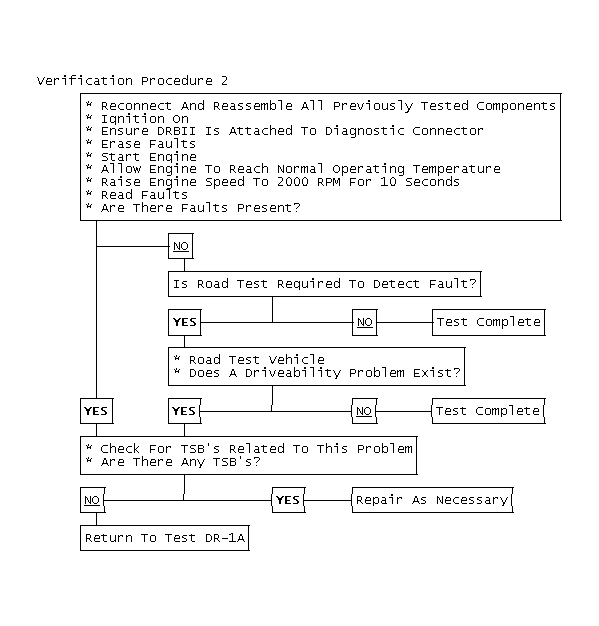

Fig 2: Verification Procedure 2

GB0044677
