Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | On right shock tower. |
| A/C-Heater Control Unit | Under dash, on right side of A/C-heater assembly. |
| Chime Module | Behind dash, to right of cruise control module. |
| Cruise Control Module | Behind dash, left of steering column. |
| Intermittent Wiper Module | Under dash, by passenger's side courtesy light. |
| Keyless Entry Module | In overhead console. |
| Lighting Module | Under dash, by driver's side courtesy light. |
| Light-Out Warning Module | In luggage compartment, near right speaker. |
| Passive Restraint Control Unit | In luggage compartment, on left side. |

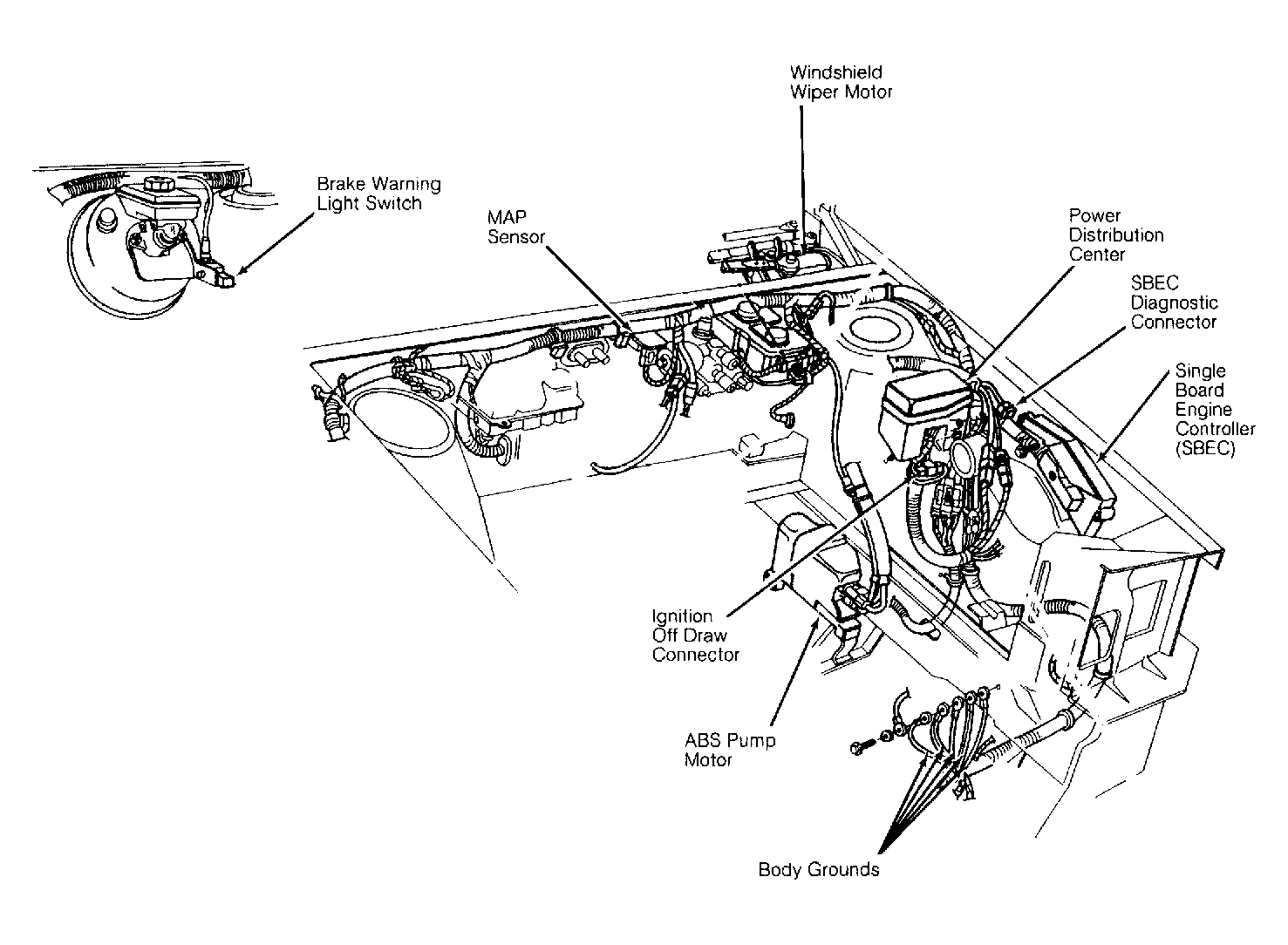

| Single Board Engine Control (SBEC) | On left fender panel. See Figure . |
| Vehicle Maintenance Module (VMM) | Behind instrument cluster. |
