Power Transistor (Colt, Colt 200 & Summit)

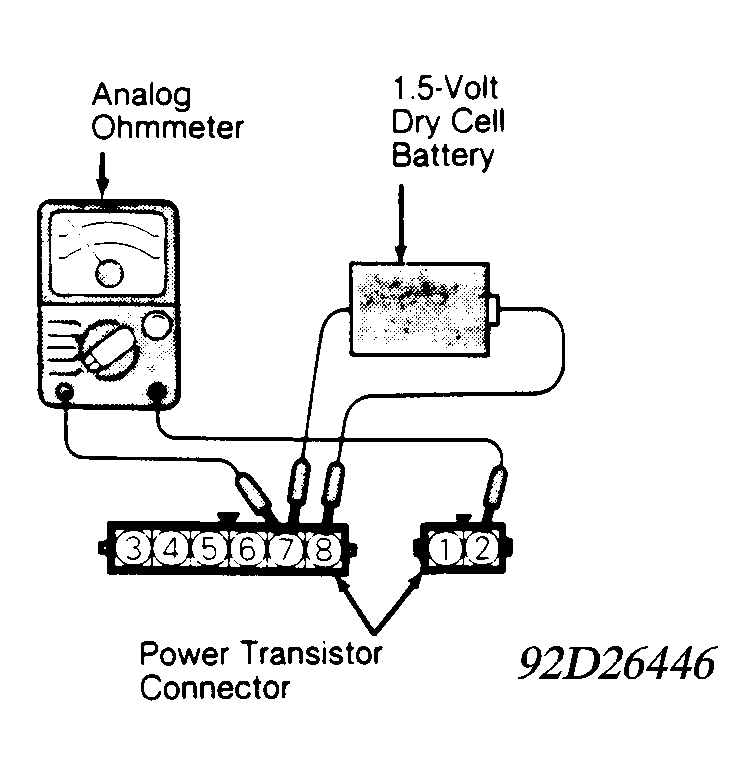

- Disconnect power transistor connectors. Using a 1.5-volt dry cell battery, connect negative end of 1.5-volt battery to terminal No. 7 of power transistor and positive end of 1.5-volt battery to power transistor terminal No. 8. See Fig 1
.
- Using an analog ohmmeter, check for continuity between terminals No. 2 and 7 of power transistor. Continuity should exist. With positive end of 1.5-volt battery disconnected, no continuity should exist. Replace power transistor if it does not test as specified.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
