NS-5: Testing Crank Angle Sensor

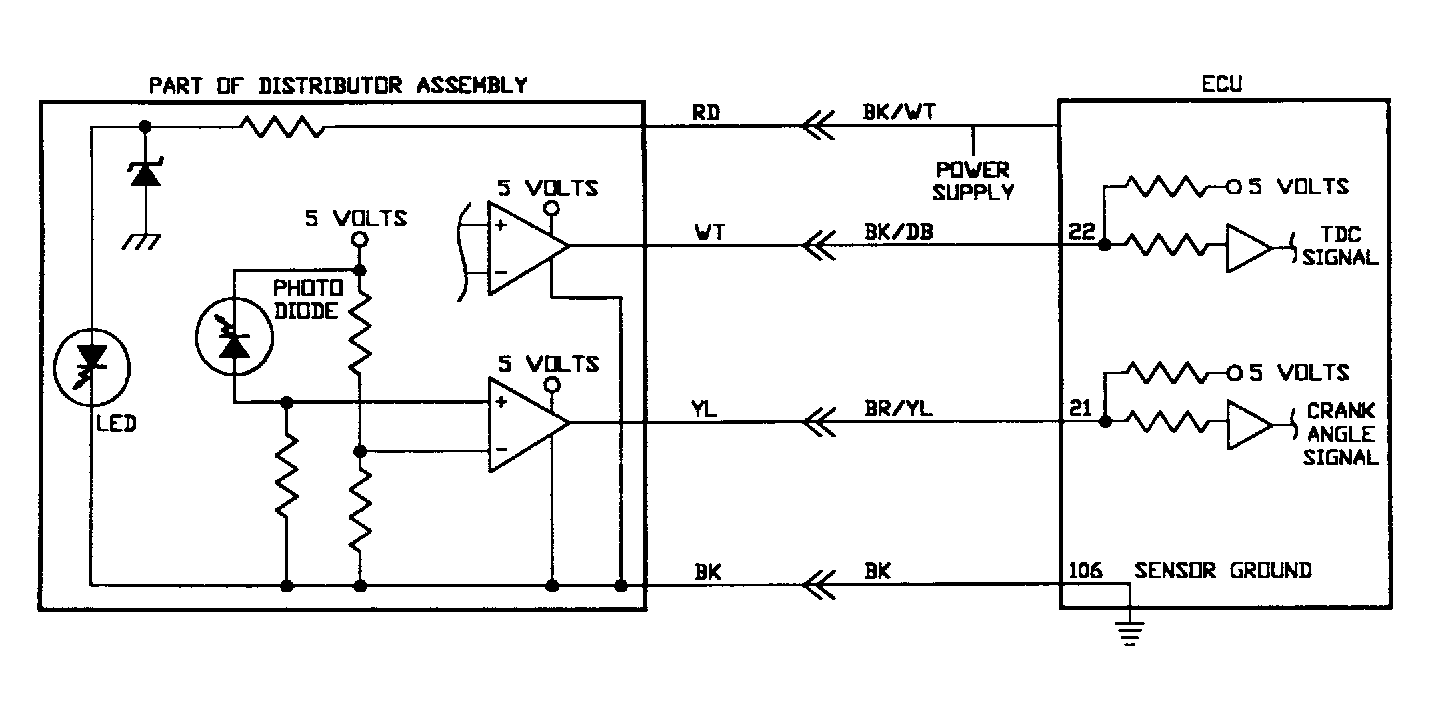

Fig 1: No Start Test 5 Schematic Testing Crank Angle Sensor
G90C15372

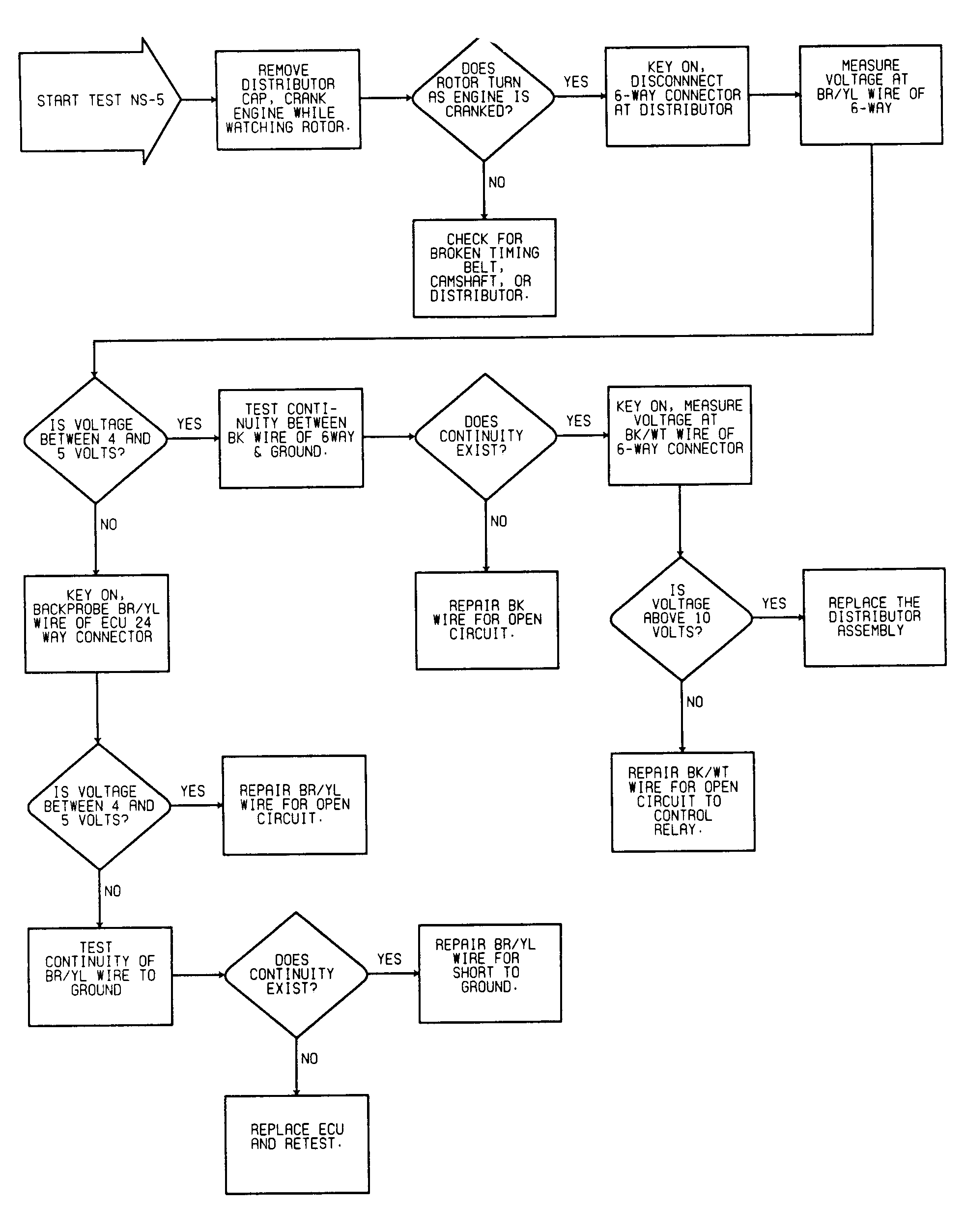

Fig 2: No Start Test 5 Flow Chart Testing Crank Angle Sensor
G91E16711
