Connector Identification

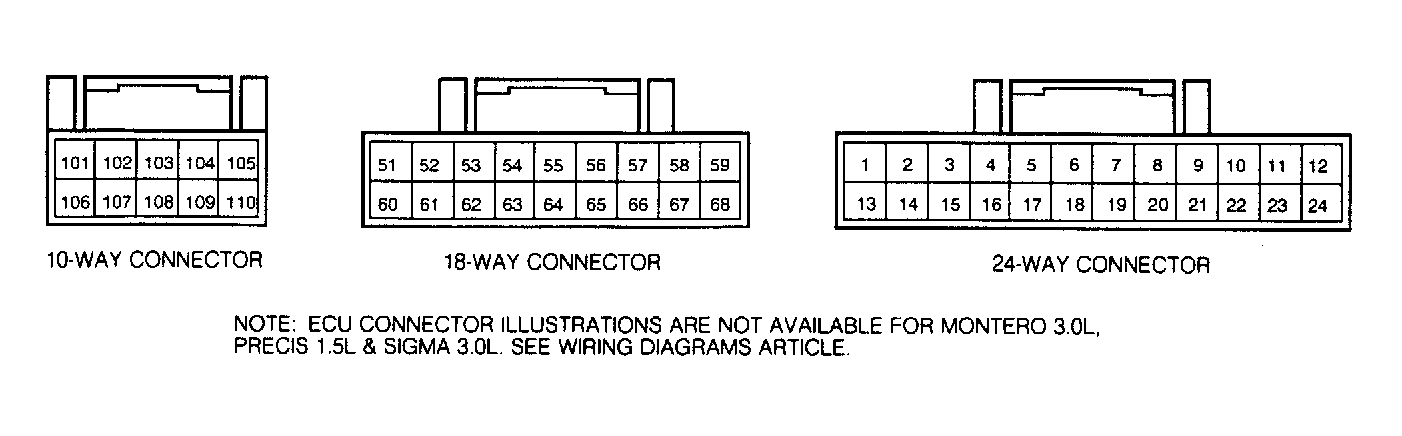

Fig 1: ECU 10-Way Connector Terminal ID
G90B15363Courtesy of CHRYSLER MOTORS.

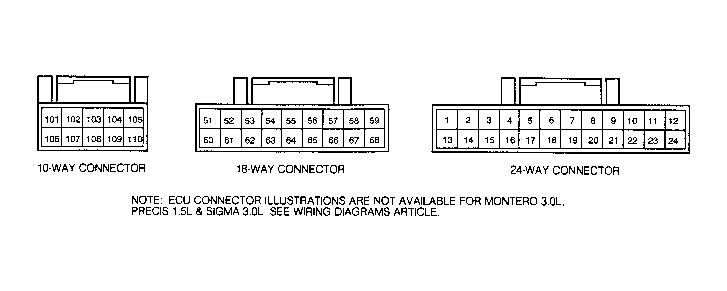

Fig 2: ECU 18-Way Connector Terminal ID
G90C15364Courtesy of CHRYSLER MOTORS.
Fig 3: ECU 24-Way Connector Terminal ID
G90D15365Courtesy of CHRYSLER MOTORS.
