Firing Order & Plug Wire Routing (1.6L)

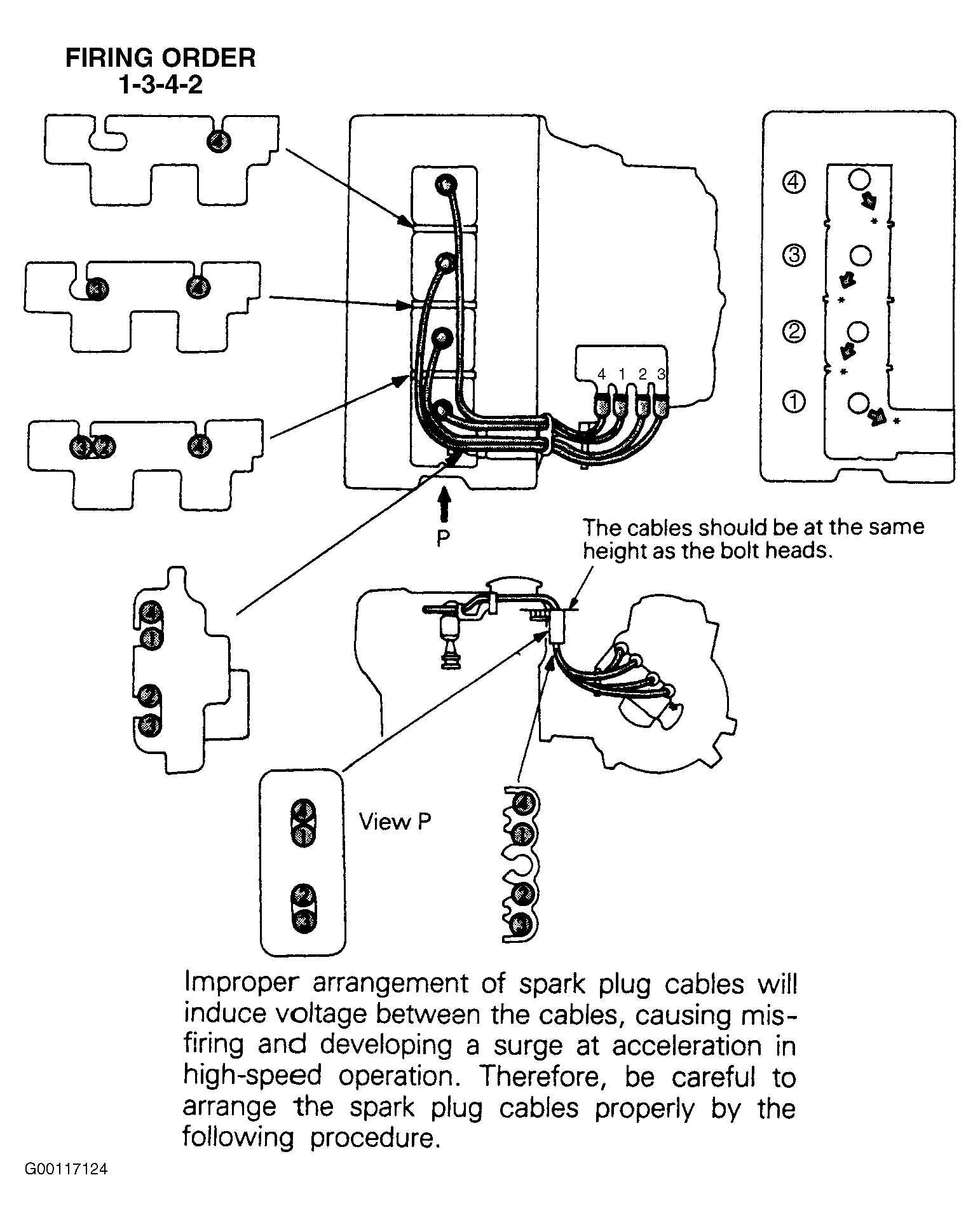

Fig 1: Firing Order & Plug Wire Routing (1.6L)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
