Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

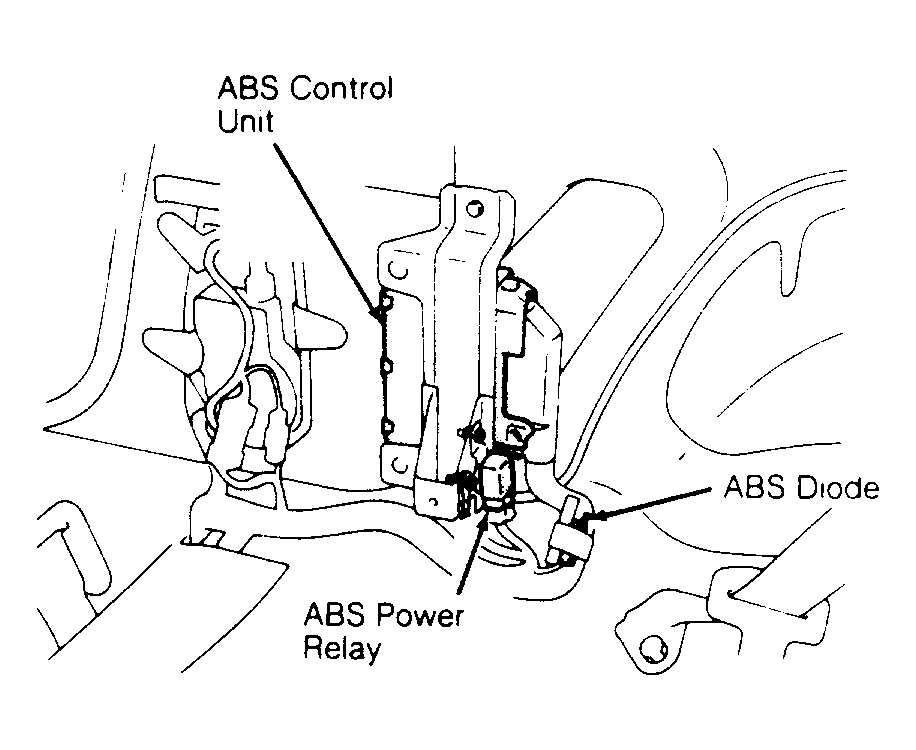

| ABS Control Unit | Behind right rear quarter panel. See Figure . |
| A/C Control Unit | Under dash, near A/C evaporator housing. |
| Automatic Seat Belt Control Unit | In left rear quarter panel. |
| Automatic Transaxle Control Unit | Under center of dash, next to ECU. See Figure . |
| Cruise Control Unit | Under left side of dash. |
| Door Lock Control Unit | Behind right side kick panel. |

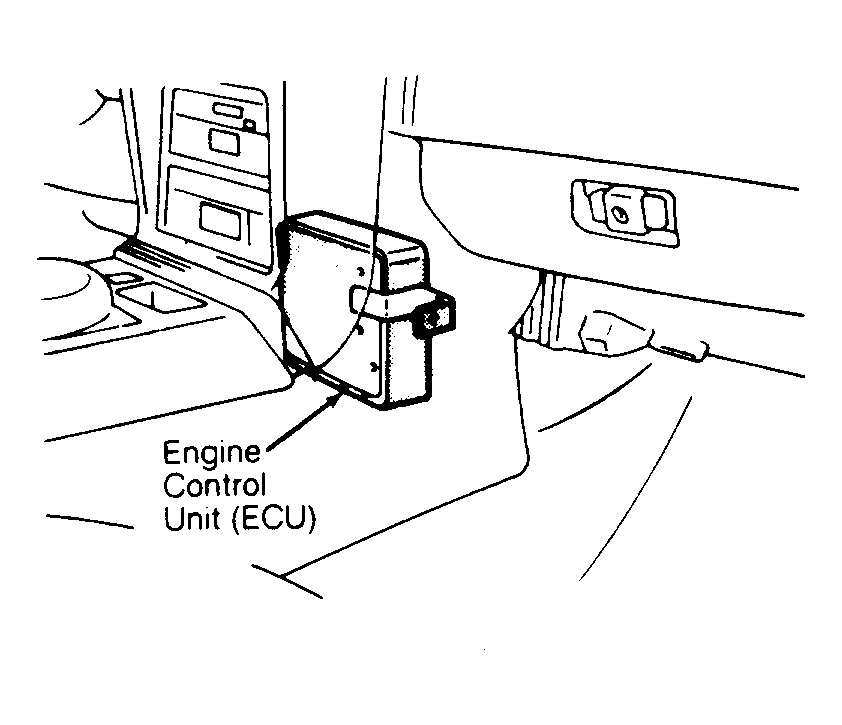

| Engine Control Unit (ECU) | Under dash, behind center console. See Figure . |
