Wiring Diagrams

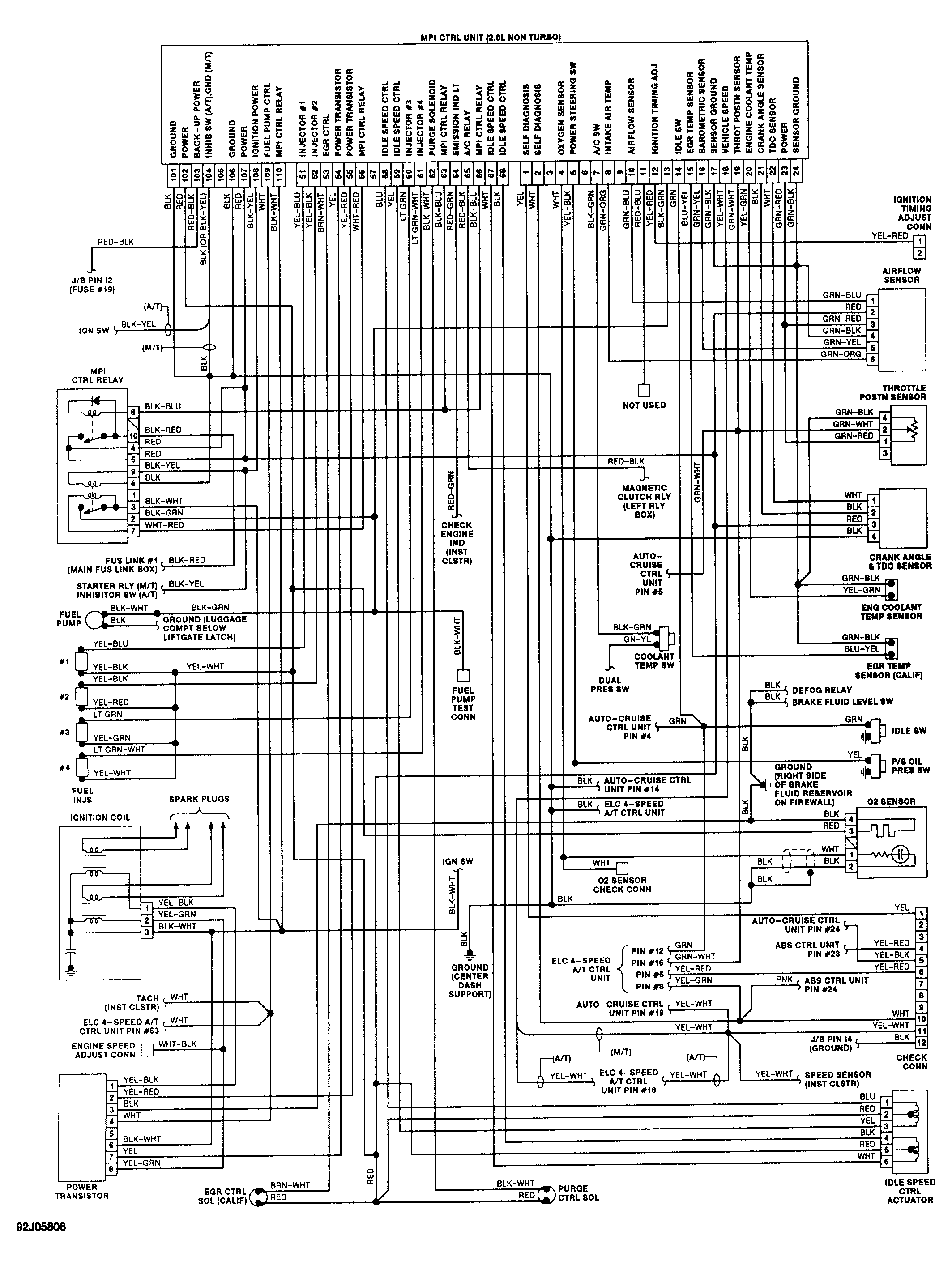

Fig 1: Wiring Diagram (Laser & Talon - 2.0L PFI)

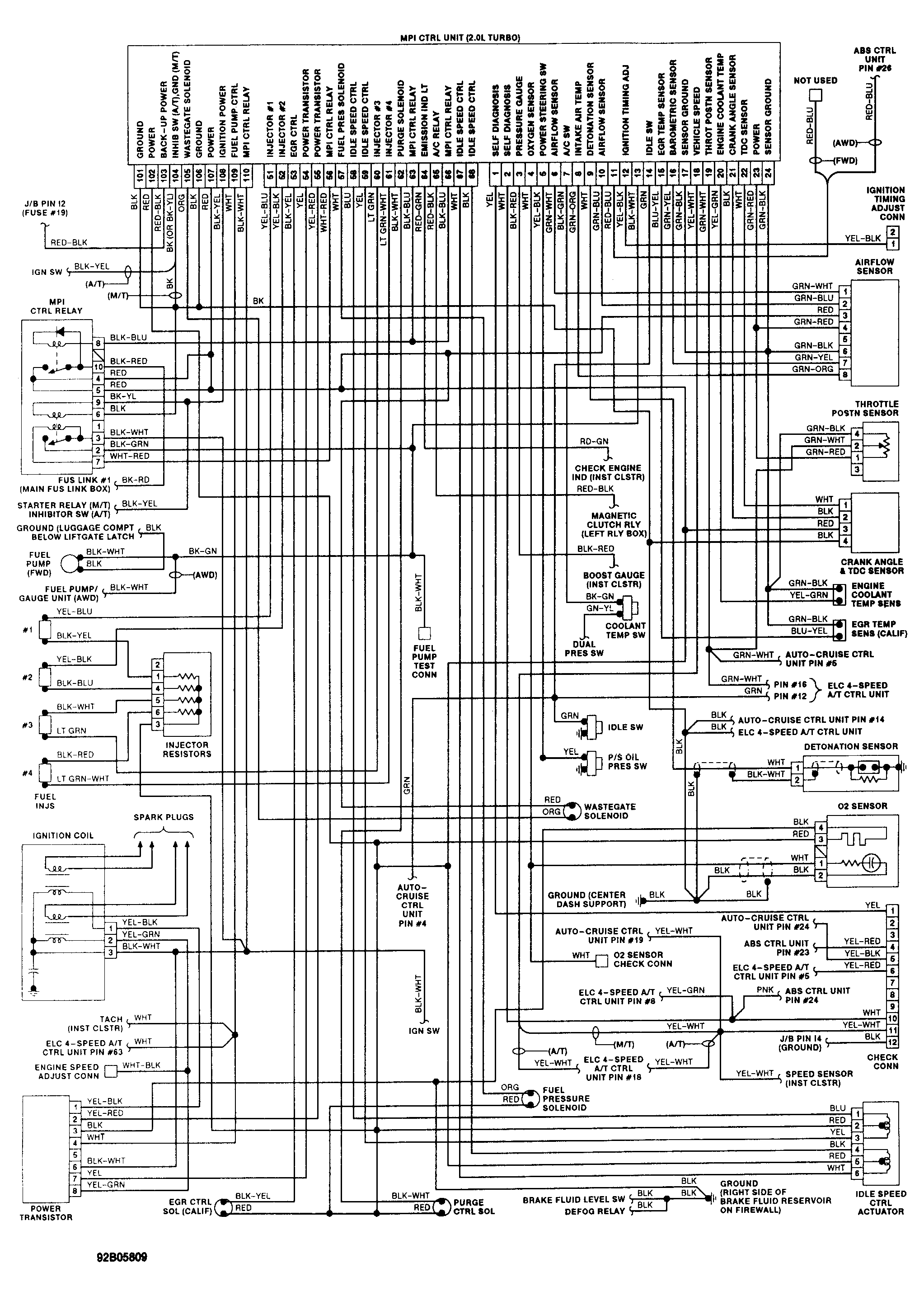

Fig 2: Wiring Diagram (Laser & Talon - 2.0L Turbo)
