Steering Column: Description

Steering column is a collapsible design which uses an intermediate shaft between steering column and steering rack. Steering column assembly contains a combination switch, ignition switch and steering lock assembly. See Fig 1. Tilt column is standard.

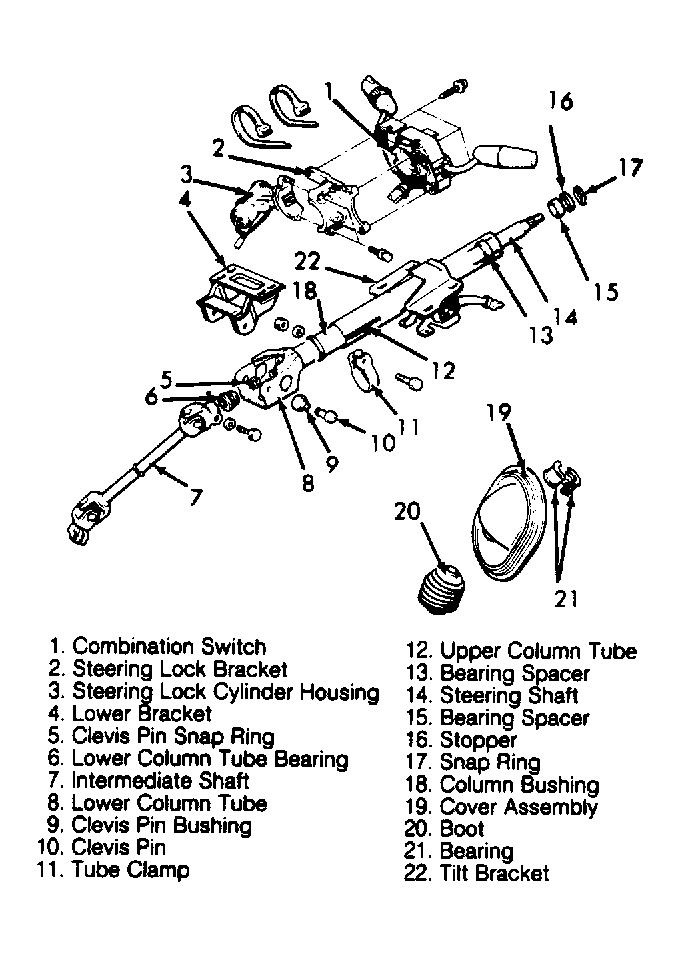

Fig 1: Exploded View of Steering Column Assembly
G90F13495Courtesy of CHRYSLER MOTORS
