Wiring Diagrams

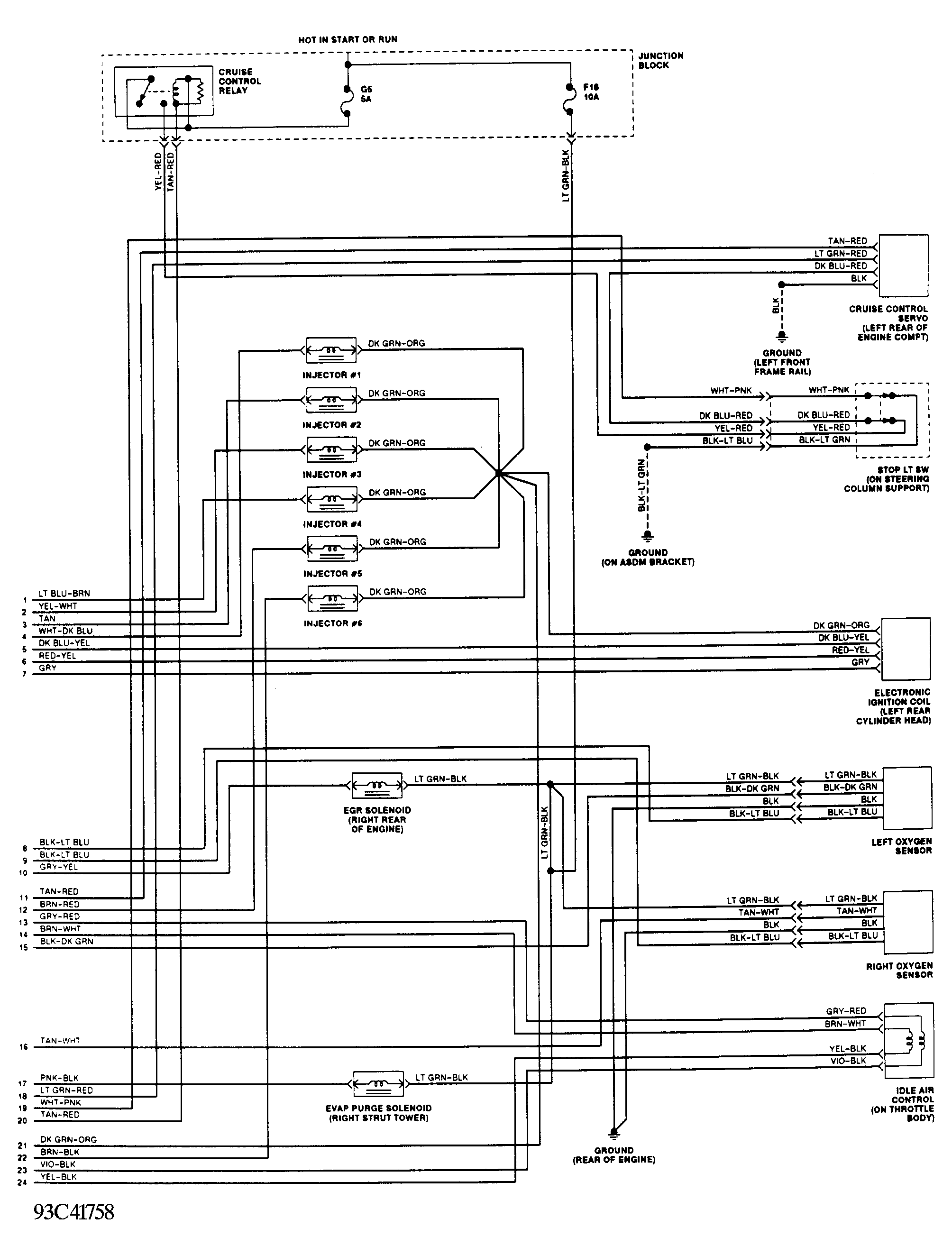

Fig 1: PCM Wiring Diagram - 1 Of 2 (3.3L - Concorde, Intrepid & Vision)

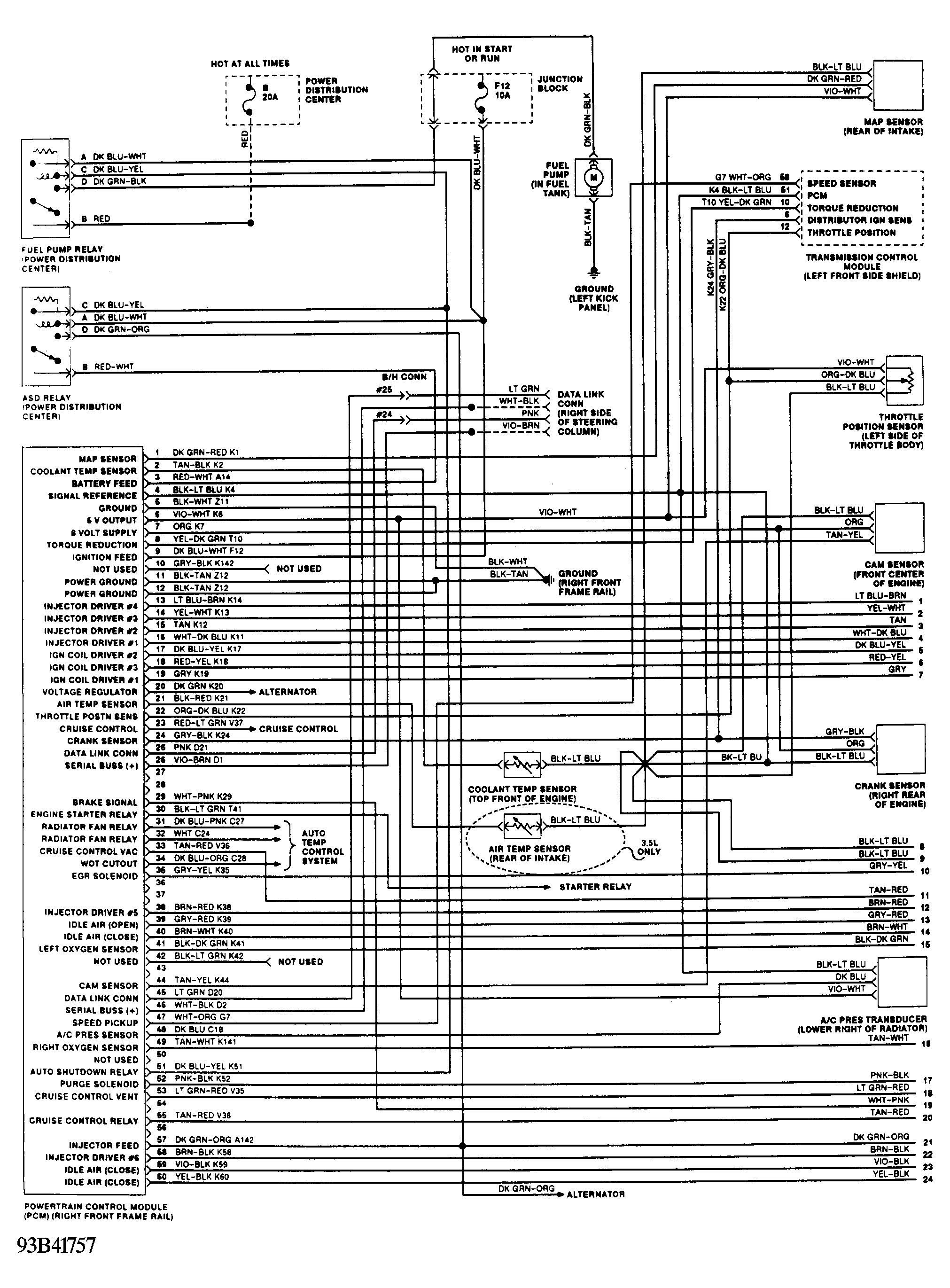

Fig 2: PCM Wiring Diagram - 2 Of 2 (3.3L)

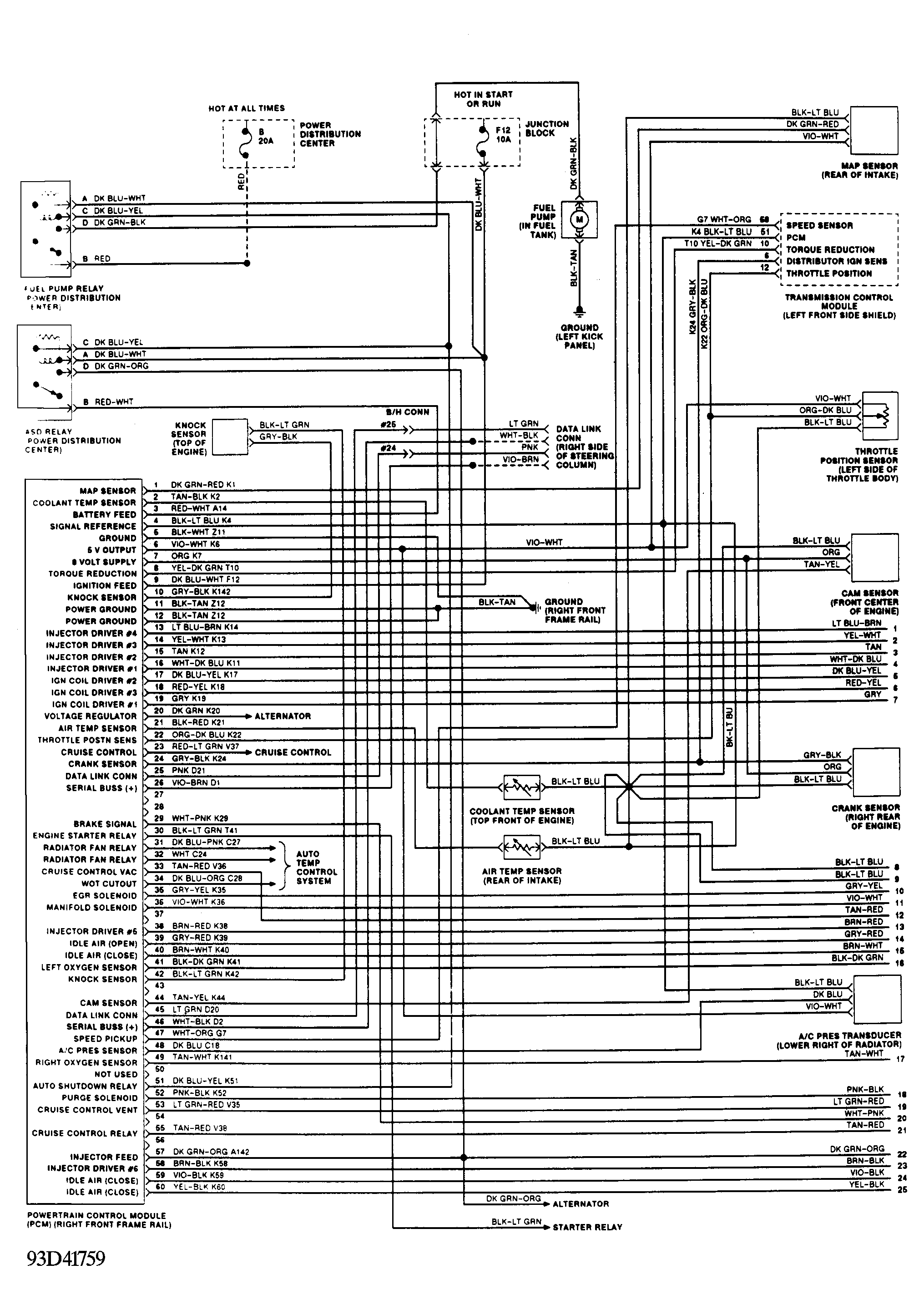

Fig 3: PCM Wiring Diagram - 1 Of 2 (3.5L)

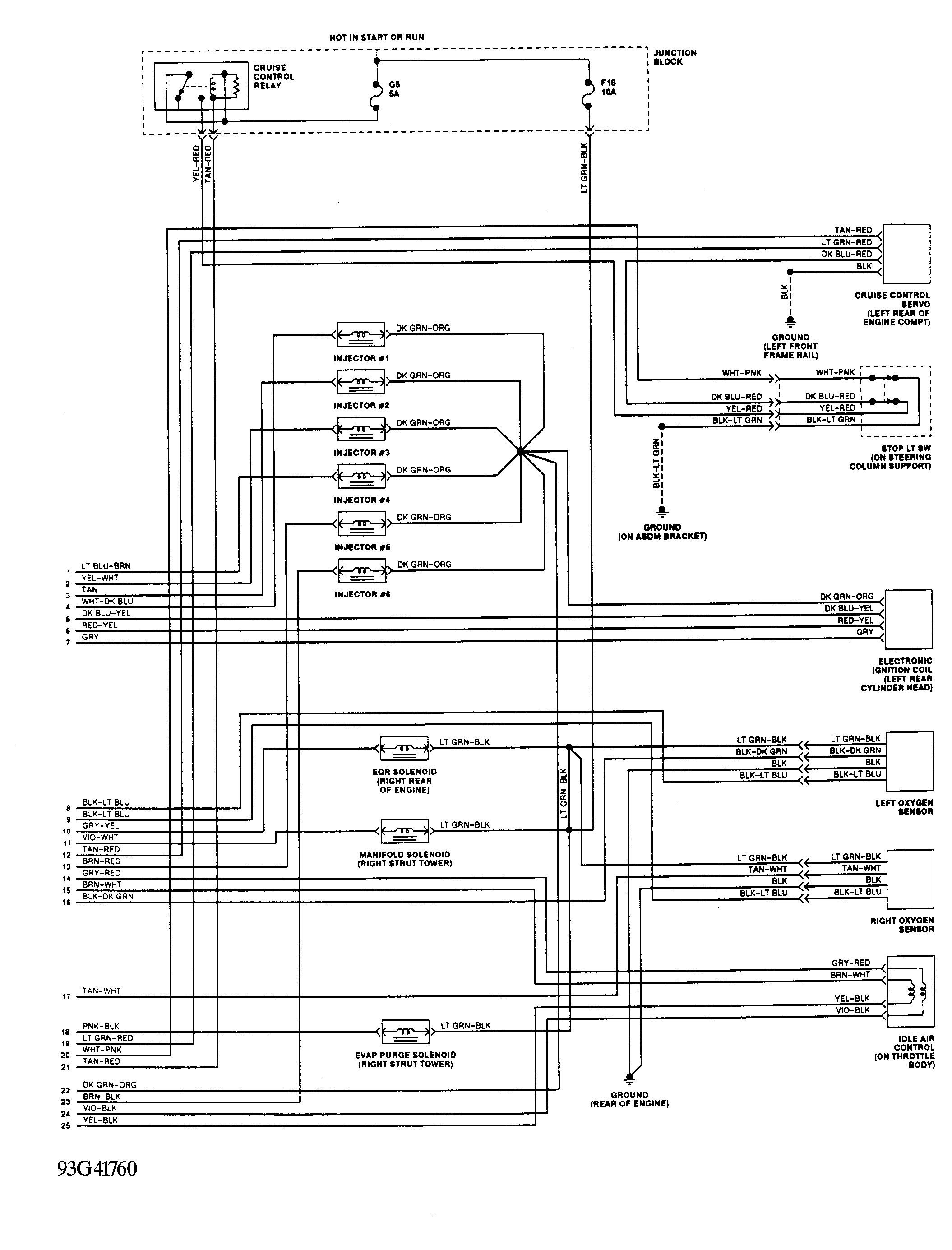

Fig 4: PCM Wiring Diagram - 2 Of 2 (3.5L)

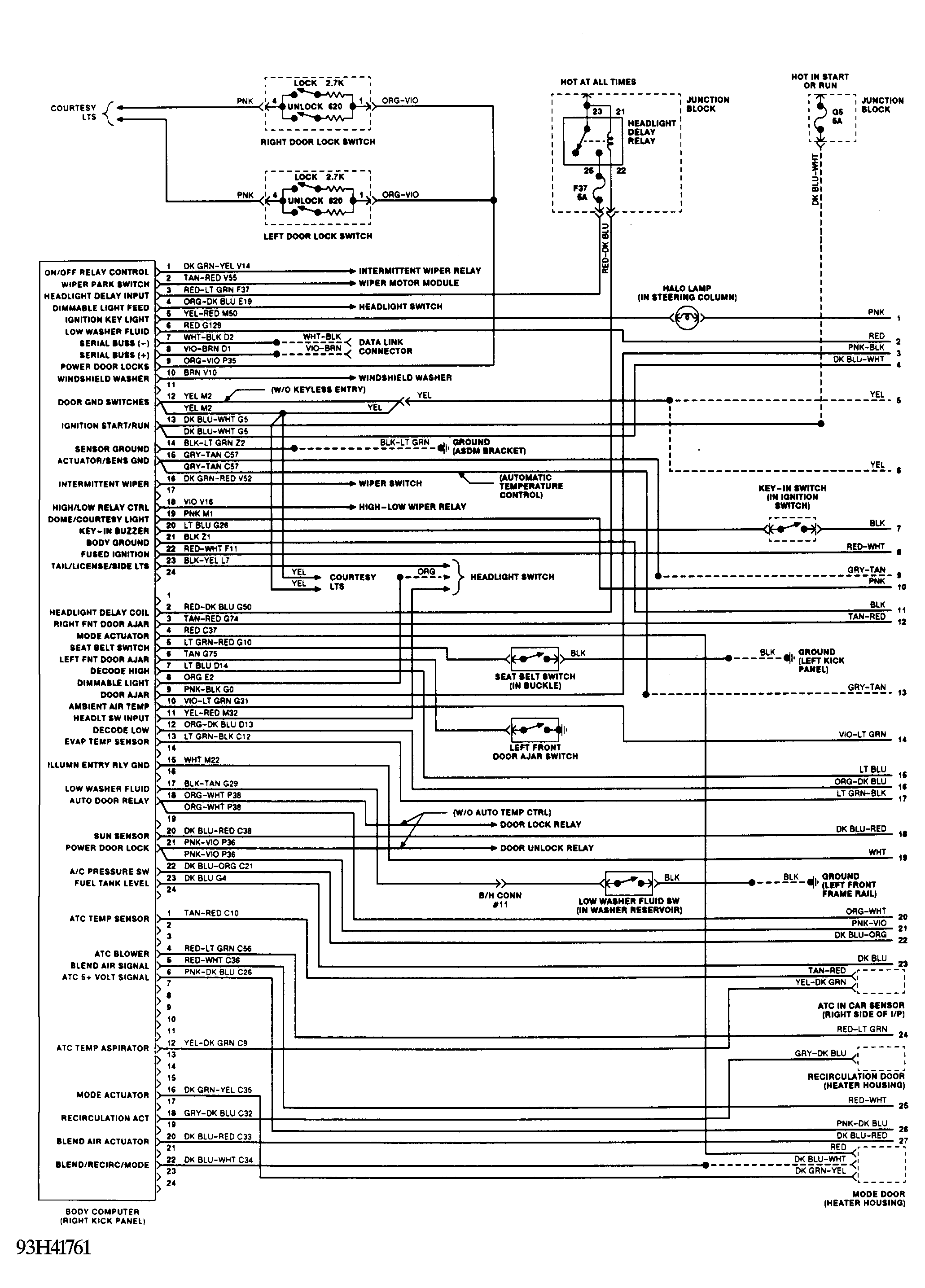

Fig 5: BCM Wiring Diagram - 1 Of 2 (3.5L)

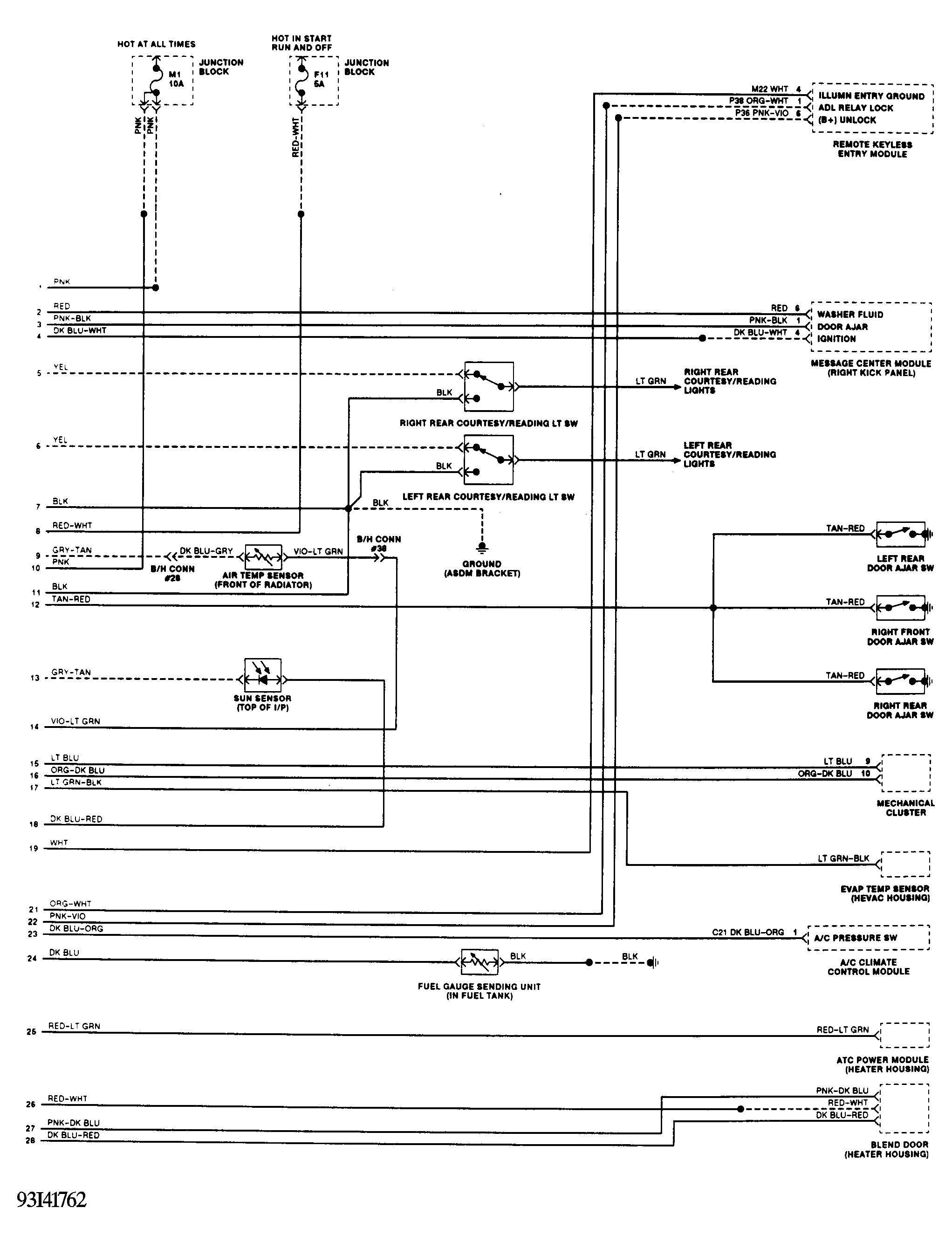

Fig 6: BCM Wiring Diagram - 2 Of 2 (3.5L)
