Ignition Coil Resistance

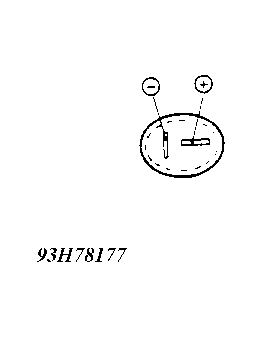

Using a DVOM, measure primary coil resistance between positive and negative terminals of coil. See Fig 1 . Measure secondary coil resistance between coil positive terminal and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE table.
IGNITION COIL RESISTANCE
| Application | Primary | Secondary |
|---|---|---|
| 1.5L (VIN A) | .9-1.2 | 20,000-29,000 |
| 1.8L (VIN C) | .9-1.2 | 20,000-29,000 |
