Component Location

AUTOMATIC SEAT BELT COMPONENT LOCATIONS

Application

⁽¹⁾ Symbol

Automatic Seat Belt Control Unit

Automatic Seat Belt Motor (2 Door)

Fig 5 "C"

Automatic Seat Belt Motor (4 Door)

Fig 6 "C"

Automatic Seat Belt Motor Relay (2 Door)

Fig 5 "D"

Automatic Seat Belt Motor Relay (4 Door)

Fig 6 "D"

Buckle Switch

Fig 8 "F"

Buzzer

Door Latch Switch

Fig 4 "B"

Fasten Switch

Fig 3 "A"

Key Reminder Switch

Outer Switch (1993

Fig 9 "H"

Outer Switch (1994)

Seat Belt Warning Light

Release Switch

Fig 7 "E"

⁽¹⁾	To view symbols, see Fig 1 and Fig 2 .

Fig 1: Locating Automatic Seat Belt Components (1993)

G50A06988

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

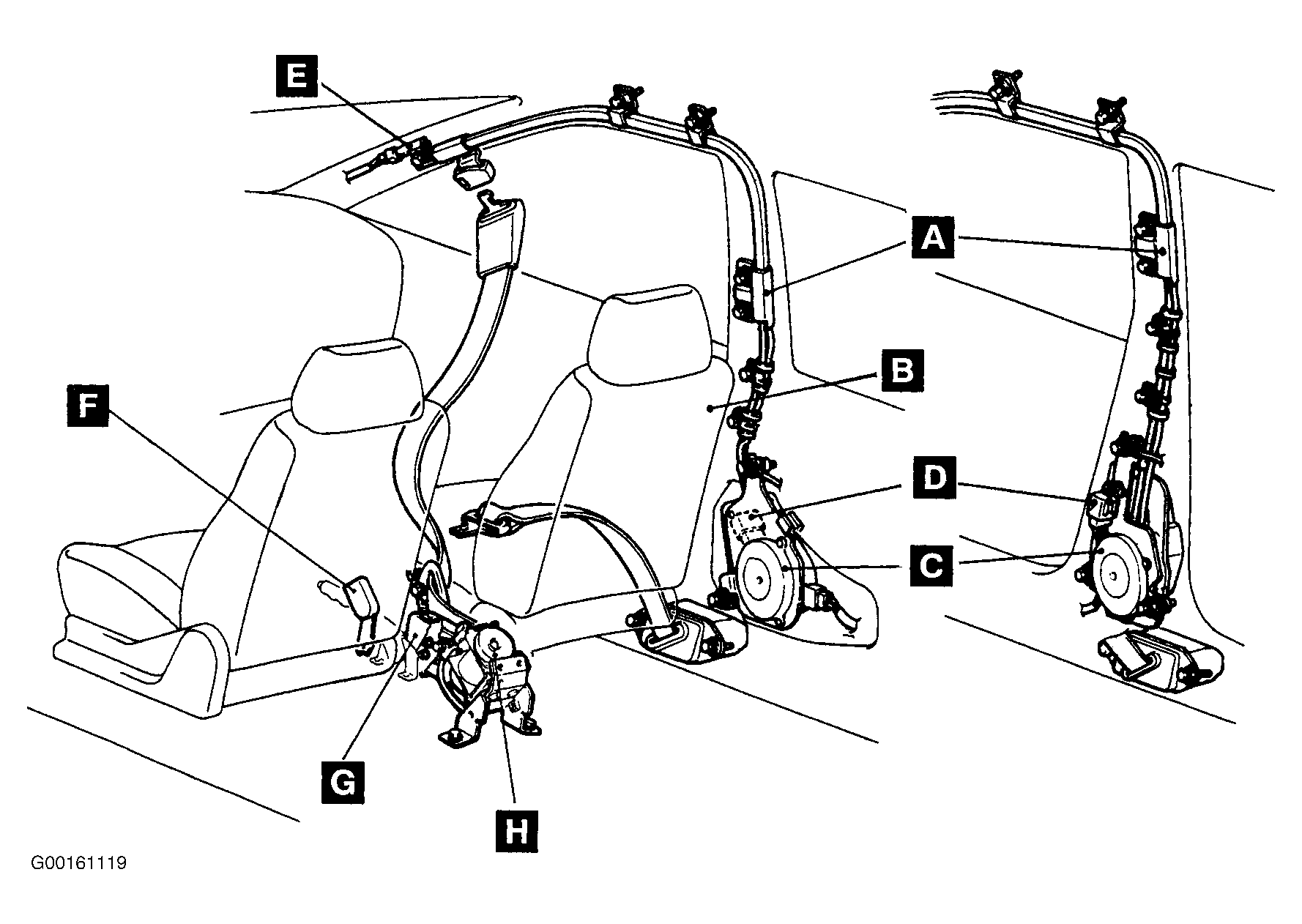

Fig 2: Locating Automatic Seat Belt Components (1994)

G00161119

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Guide Rail & Fasten Switch (Symbol A)

G50C06989

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating Door Latch Switch (Symbol B)

G50E06990

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Locating Auto. Seat Belt Motor Relay & Motor (Symbol C, D - 2 Door)

G50G06991

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Locating Auto. Seat Belt Motor Relay & Motor (Symbol C, D - 4 Door)

G50I06992

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Locating Release Switch (Symbol E)

G50A06993

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Locating Buckle Switch (Symbol F)

G50C06994

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Locating Automatic Seat Belt Control Unit & Outer Switch (Symbol G, H - 1993)

G50F06995

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

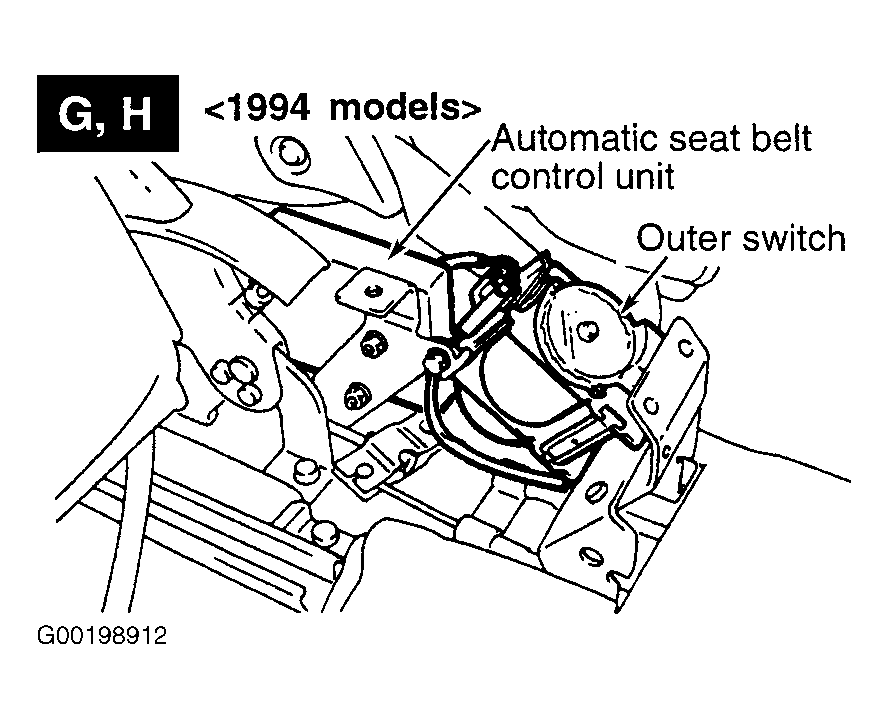

Fig 10: Locating Automatic Seat Belt Control Unit & Outer Switch (Symbol G, H - 1994)

G00198912

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Locating Key Reminder Switch (Symbol I)

G50H06996

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

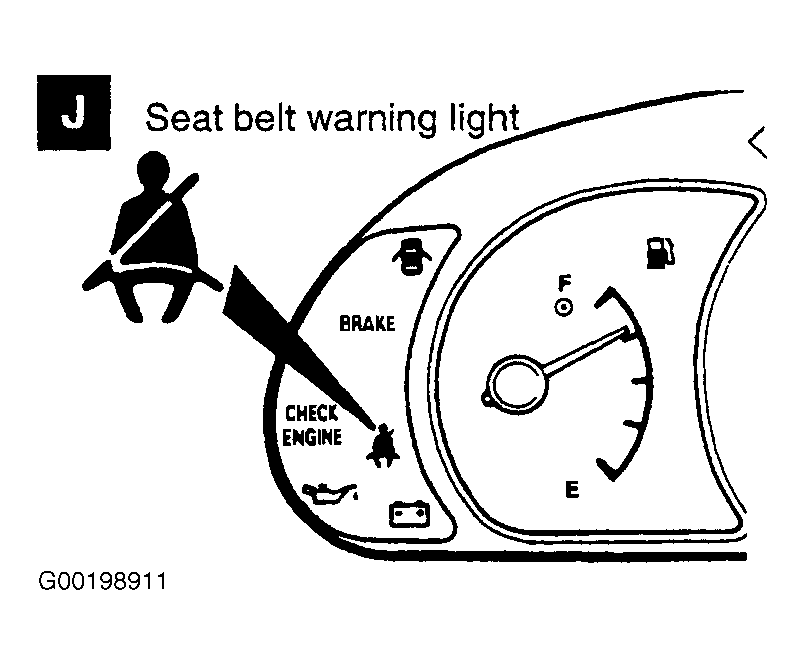

Fig 12: Locating Seat Belt Warning Light (Symbol J)

G00198911

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

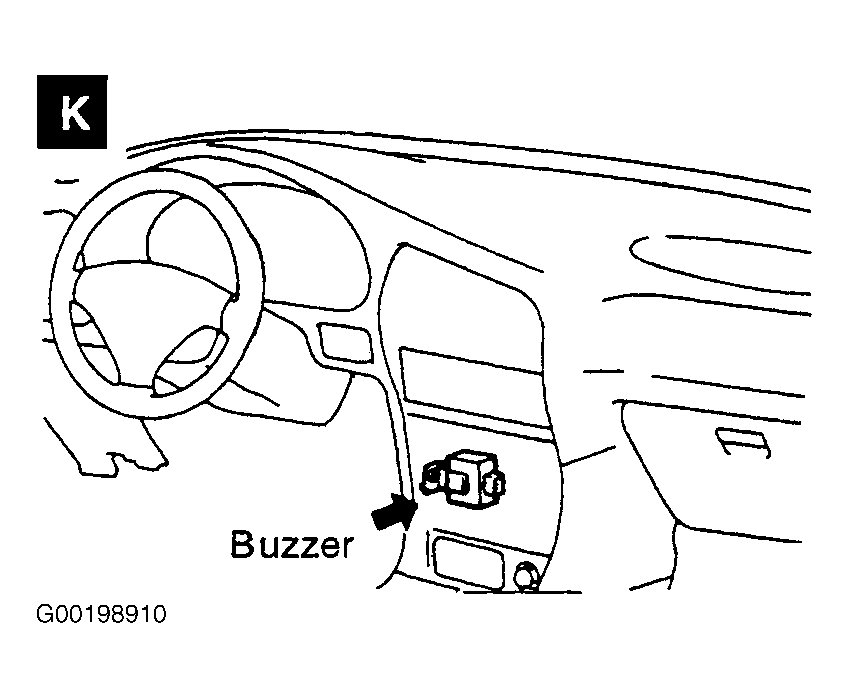

Fig 13: Locating Buzzer (Symbol K)

G00198910

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
