Motor, Release Switch & Fasten Switch

For test procedures, see Fig 1 .

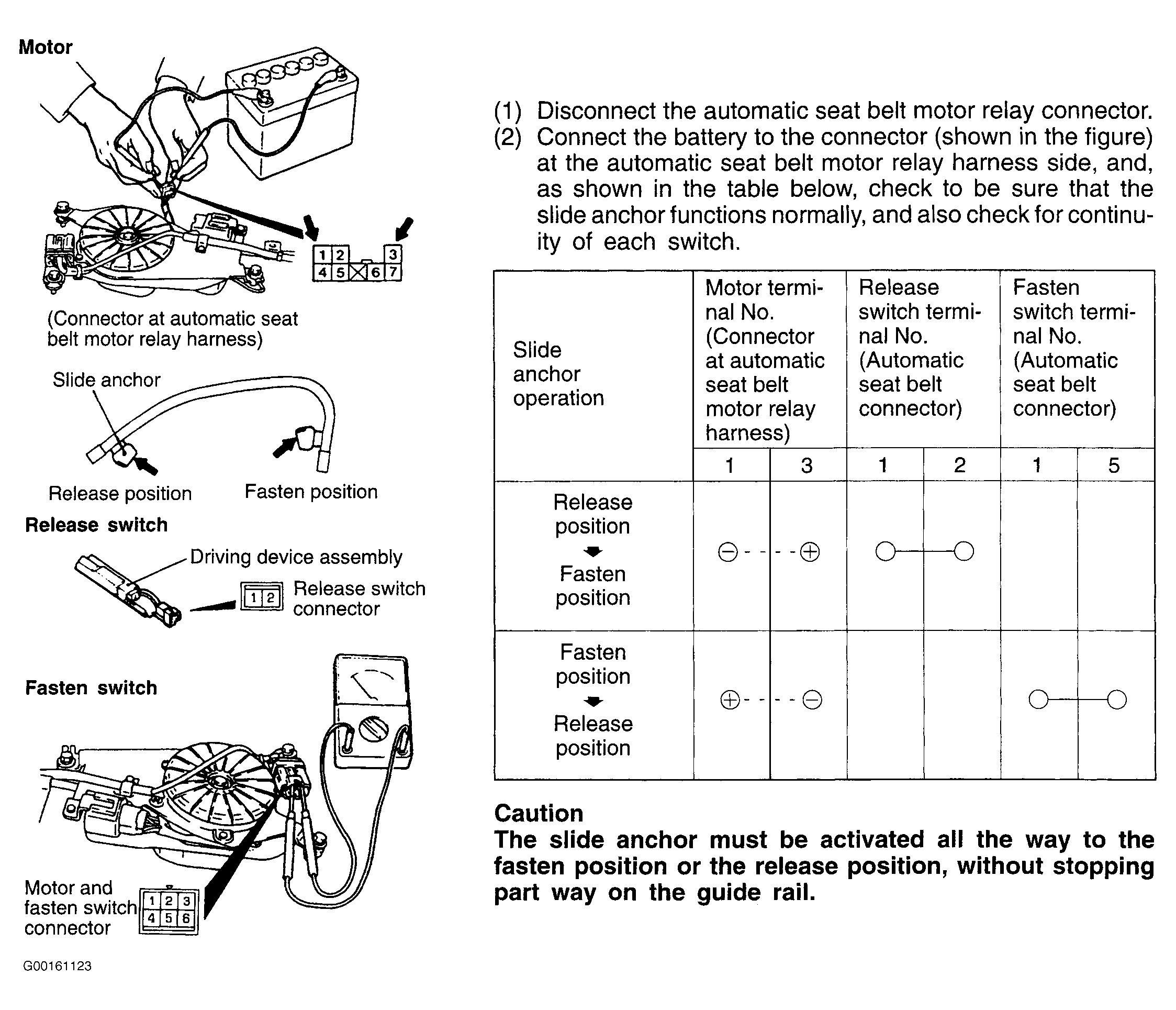

Fig 1: Testing Motor, Release Switch & Fasten Switch
G00161123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
